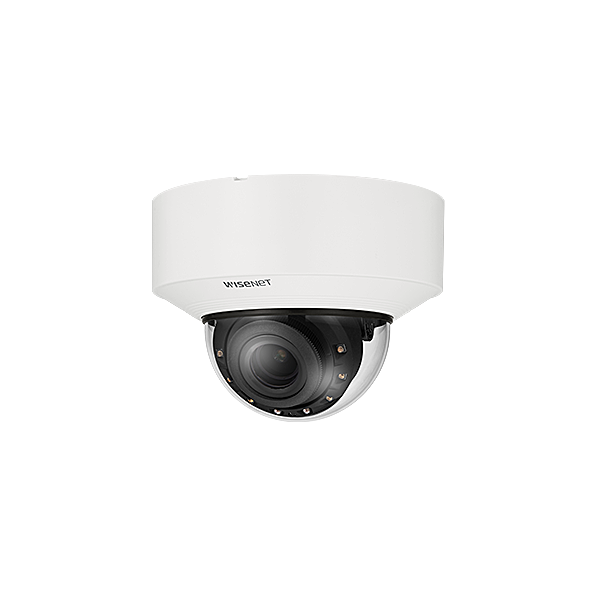

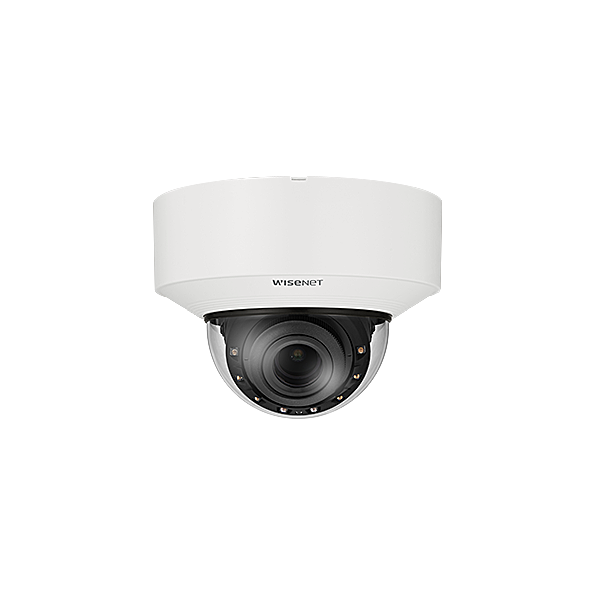

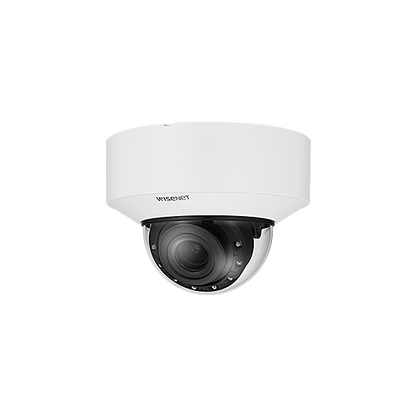

Hanwha Vision Wisenet X-CORE HV-XNV-C9083R 4K IR Vandal Dome AI Network Camera | 4.4-9.3mm Varifocal Lens | 30fps | IP67 IK10 | AI Analytics x series

Capture crystal-clear 4K surveillance footage and unlock powerful AI analytics with the Hanwha Vision Wisenet X-CORE HV-XNV-C9083R 4K IR Vandal Dome Network Camera — designed to safeguard demanding environments with precision and intelligence.

This premium vandal dome camera delivers true 4K resolution (3840x2160) at up to 30fps, ensuring exceptional detail for critical security applications. Equipped with a motorized 4.4–9.3mm varifocal P-iris lens, it offers versatile installation flexibility and precise focus adjustments.

Hanwha’s advanced AI engine empowers the HV-XNV-C9083R with powerful object classification—including person, face, vehicle types, and license plates—enabling highly accurate detection and analytics. IVA functions such as virtual lines, areas, loitering, and intrusion monitoring deliver proactive security for modern installations.

For superior low-light performance, WiseNRⅡ noise reduction and WiseStreamⅢ smart compression maintain high-quality video while optimizing bandwidth. The WiseIR function illuminates scenes up to 40 meters (131.23 ft) in total darkness, ensuring round-the-clock vigilance.

The rugged IP66/IP67, IK10, and NEMA4X-rated housing offers durability for outdoor and high-risk indoor deployments, while integrated DIS with gyro sensors ensures image stability in challenging environments.

Ideal for enterprise, government, or critical infrastructure applications, the HV-XNV-C9083R seamlessly integrates into the Omada SDN ecosystem with support for ONVIF Profiles S/G/T and Wisenet’s open platform, ensuring maximum flexibility and interoperability.

What's Included in the Box

• Hanwha Vision HV-XNV-C9083R 4K IR Vandal Dome AI Network Camera

• Dome bubble pre-installed

• Installation Guide

• Mounting hardware

• Accessories as provided by Hanwha Vision distributor

Main Features

✅ True 4K Ultra HD Resolution — Delivers 3840×2160 video at up to 30fps for highly detailed monitoring.

✅ Motorized Varifocal Lens — 4.4–9.3mm P-iris lens offers precise focus and flexible fields of view.

✅ Powerful AI Analytics — Detects and classifies people, vehicles, faces, license plates, and supports advanced IVA.

✅ WiseIR Night Vision — Provides up to 40m (131.23 ft) IR illumination for superior nighttime performance.

✅ ExtremeWDR (120 dB) — Ensures balanced images in high-contrast scenes.

✅ WiseNRⅡ & WiseStreamⅢ — AI-driven noise reduction and bandwidth-efficient smart streaming.

✅ Rugged, Vandal-Resistant Build — IP66/IP67, IK10, and NEMA4X protection for harsh environments.

✅ Flexible Power Options — Supports PoE (IEEE802.3af) and 12VDC.

✅ ONVIF Compliance — Compatible with major VMS platforms for easy integration.

Detailed Specifications

Imaging

• Sensor: 1/1.8" progressive CMOS

• Resolutions Supported:

  • 3840×2160

  • 3328×1872

  • 3072×1728

  • 2592×1944

  • 2688×1520

  • 1920×1080

  • 1600×1200

  • Lower resolutions down to 320×240

• Max Frame Rate:

  • H.265/H.264: Up to 30fps

  • MJPEG: Up to 15fps

• Minimum Illumination:

  • Color: 0.04 Lux (F1.3, 1/30s, 30IRE)

  • B/W: 0.004 Lux (F1.3, 1/30s, 30IRE)

  • 0 Lux with IR on

• Lens:

  • 4.4–9.3mm motorized varifocal

  • Aperture: F1.3 (Wide) ~ F2.15 (Tele)

  • Horizontal FOV: 112.1° ~ 47.5°

  • Vertical FOV: 58.0° ~ 26.6°

  • Diagonal FOV: 137.5° ~ 54.6°

• IR Distance: Up to 40m (131.23 ft)

Analytics

• Object detection: Person, face, vehicle types, license plate

• IVA: Virtual line crossing, intrusion, loitering, enter/exit

• Other Events:

  • Defocus detection

  • Motion detection

  • Tampering

  • Fog detection

  • Audio detection

  • Sound classification

  • Shock detection

  • Appear/disappear

• Business Intelligence: People counting, queue management, heatmap

Video

• Compression: H.265, H.264 Main/High, MJPEG

• Smart Codec: WiseStreamⅡ, WiseStreamⅢ

• Bitrate Control: CBR/VBR

• Streaming: Up to 10 profiles

• Video Rotation: Flip, mirror, hallway view

Audio

• Audio In: Mic in/line in selectable

• Audio Out: Line out, Max 1Vrms

• Compression: G.711, G.726, AAC-LC

Network

• Ethernet: RJ-45 (10/100 BASE-T)

• Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTSP, HTTPS, SNMP, and more

• Security:

  • HTTPS, digest authentication

  • 802.1X

  • Hanwha Trusted Platform Module (HTPM)

  • Secure boot, storage, UL CAP certification

Storage

• Edge Storage: Micro SD/SDHC/SDXC up to 512GB

Electrical

• Power: PoE (IEEE802.3af, Class 3) or 12VDC

• Power Consumption:

  • PoE: Max 12.95W

  • 12VDC: Max 13.2W

Environmental

• Operating Temp: -40°C ~ +55°C (up to +60°C intermittent)

• Humidity: 0–95% RH non-condensing

• Protection:

  • IP66, IP67, NEMA4X

  • IK10 vandal resistance

Physical

• Dimensions: Ø160 × 118 mm (Ø6.30 × 4.65 in)

• Weight: 1450g (3.20 lb)

• Material: White aluminum housing

• RAL Code: RAL9003

Compliance

• ONVIF Profiles S/G/T

• Wisenet Open Platform

DORI Distances (EN62676-4 Standard)

• Detect (25PPM): Wide 51.7m | Tele 174.5m

• Observe (63PPM): Wide 20.7m | Tele 69.8m

• Recognize (125PPM): Wide 10.3m | Tele 34.9m

• Identify (250PPM): Wide 5.2m | Tele 17.5m

Warranty Information

Hanwha Vision provides a limited 3-year warranty for the HV-XNV-C9083R, ensuring dependable service and support. Warranty specifics may vary regionally—check with authorized distributors in Australia and New Zealand for local details.

Brand Description

Hanwha Vision, a leader in cutting-edge surveillance, delivers innovative solutions trusted worldwide. The Wisenet X-Core series represents advanced imaging, AI analytics, and robust build quality—ideal for securing commercial, public, and critical infrastructure environments.

Practical Use Scenarios

• Critical Infrastructure — Monitor sensitive sites with high-resolution detail and AI-driven analytics.

• Commercial Buildings — Secure entry points, hallways, and public spaces with proactive detection.

• Urban Surveillance — Enhance city safety with robust performance and clear video evidence.

• Retail Analytics — Leverage people counting and heat mapping for business intelligence.

• Transport Hubs — Manage security in stations, terminals, and busy environments.

Datasheets / Downloadable Resources

• Hanwha Vision XNV-C9083R Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The Hanwha Vision HV-XNV-C9083R is certified to Australian and New Zealand standards (including CE, FCC, IP67, IK10, NEMA4X). Sourced exclusively through authorised Hanwha Vision partners, ensuring genuine hardware, local support, and compliance with regional regulations for professional security installations.

 FAQs (Including Product Code HV-XNV-C9083R)

Q1: What resolution does the Hanwha Vision HV-XNV-C9083R (SKU: HV-XNV-C9083R) offer?
A1: It delivers true 4K video resolution (3840×2160) at up to 30 frames per second for ultra-detailed monitoring.

Q2: Does the HV-XNV-C9083R (SKU: HV-XNV-C9083R) support AI-based analytics?
A2: Yes. It includes advanced object detection, license plate recognition, and intelligent video analytics powered by Hanwha’s AI engine.

Q3: Is the HV-XNV-C9083R (SKU: HV-XNV-C9083R) suitable for outdoor installations?
A3: Absolutely. It’s rated IP66/IP67, IK10, and NEMA4X for harsh weather and high-security environments.

Q4: What infrared range does the HV-XNV-C9083R (SKU: HV-XNV-C9083R) provide?
A4: It features WiseIR technology for up to 40 meters (131.23 ft) of clear night vision.

Q5: Does the Hanwha Vision HV-XNV-C9083R (SKU: HV-XNV-C9083R) support edge recording?
A5: Yes. It has a microSD slot supporting up to 512GB for local video storage.
