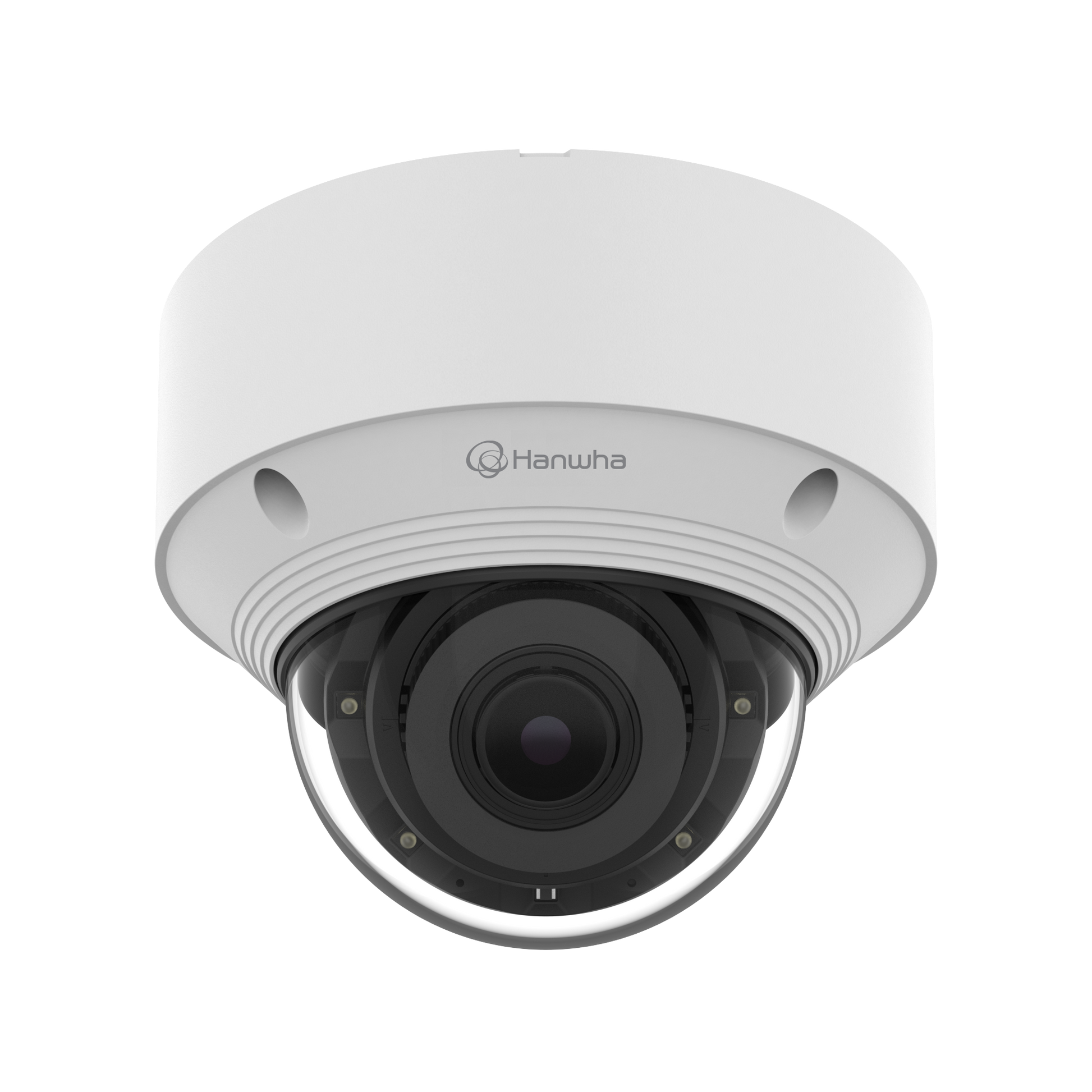

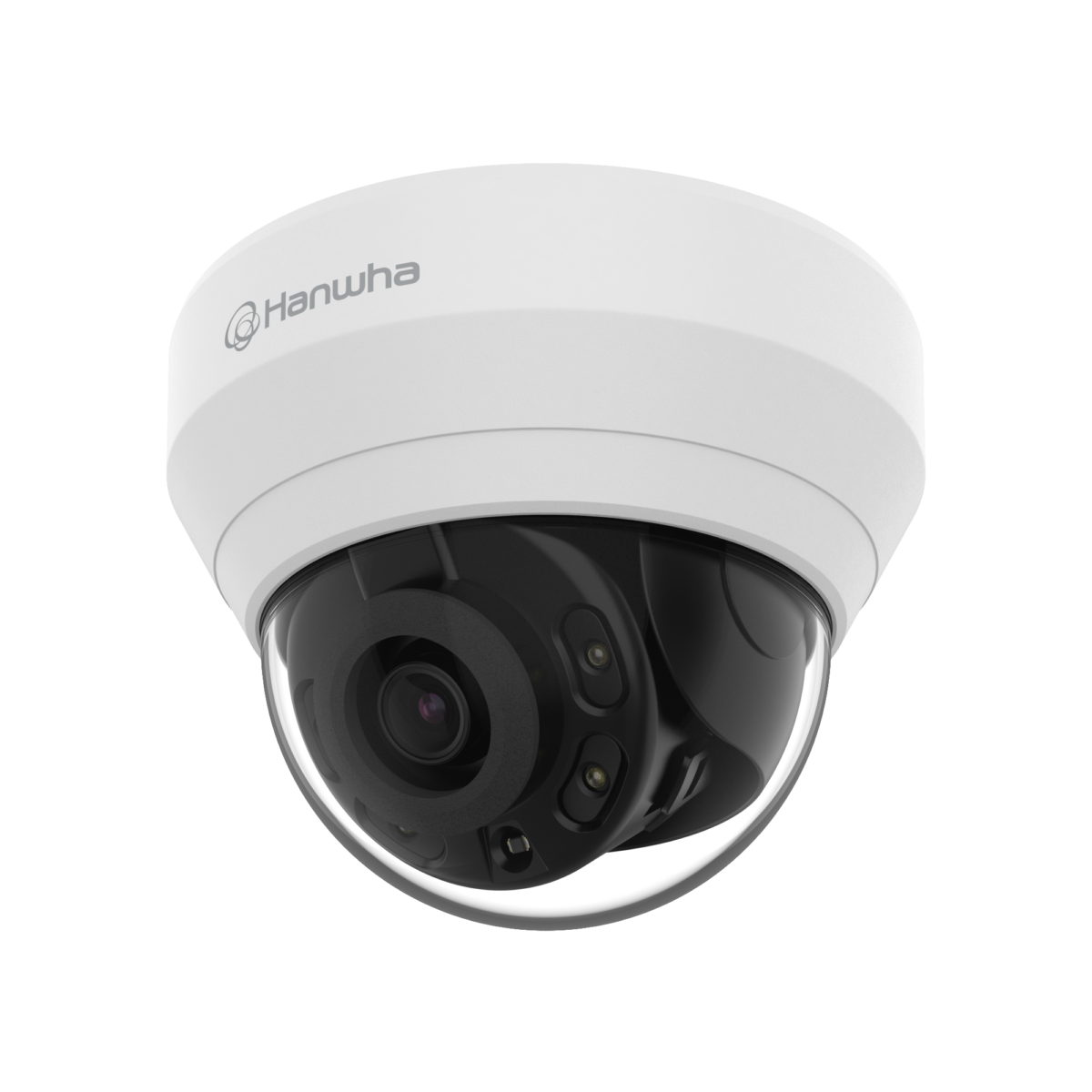

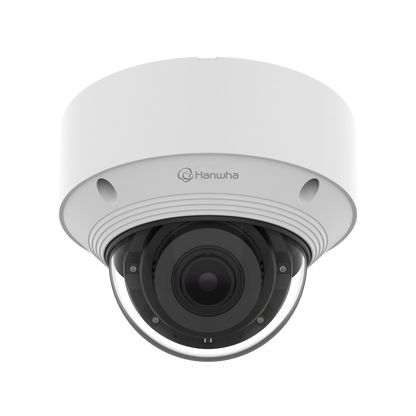

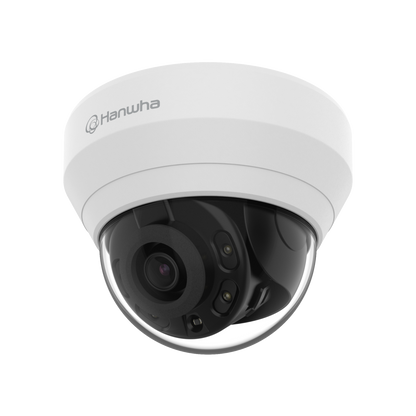

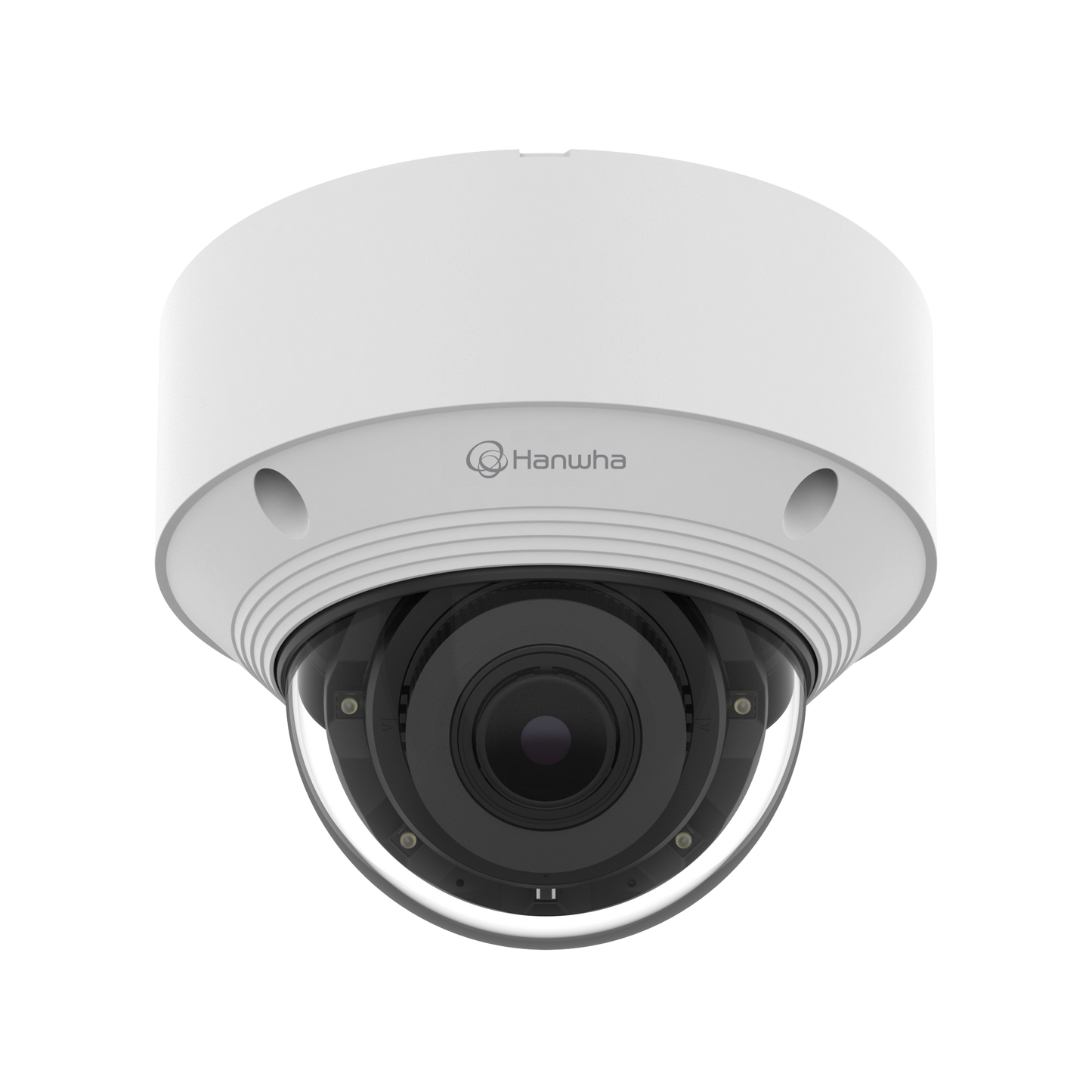

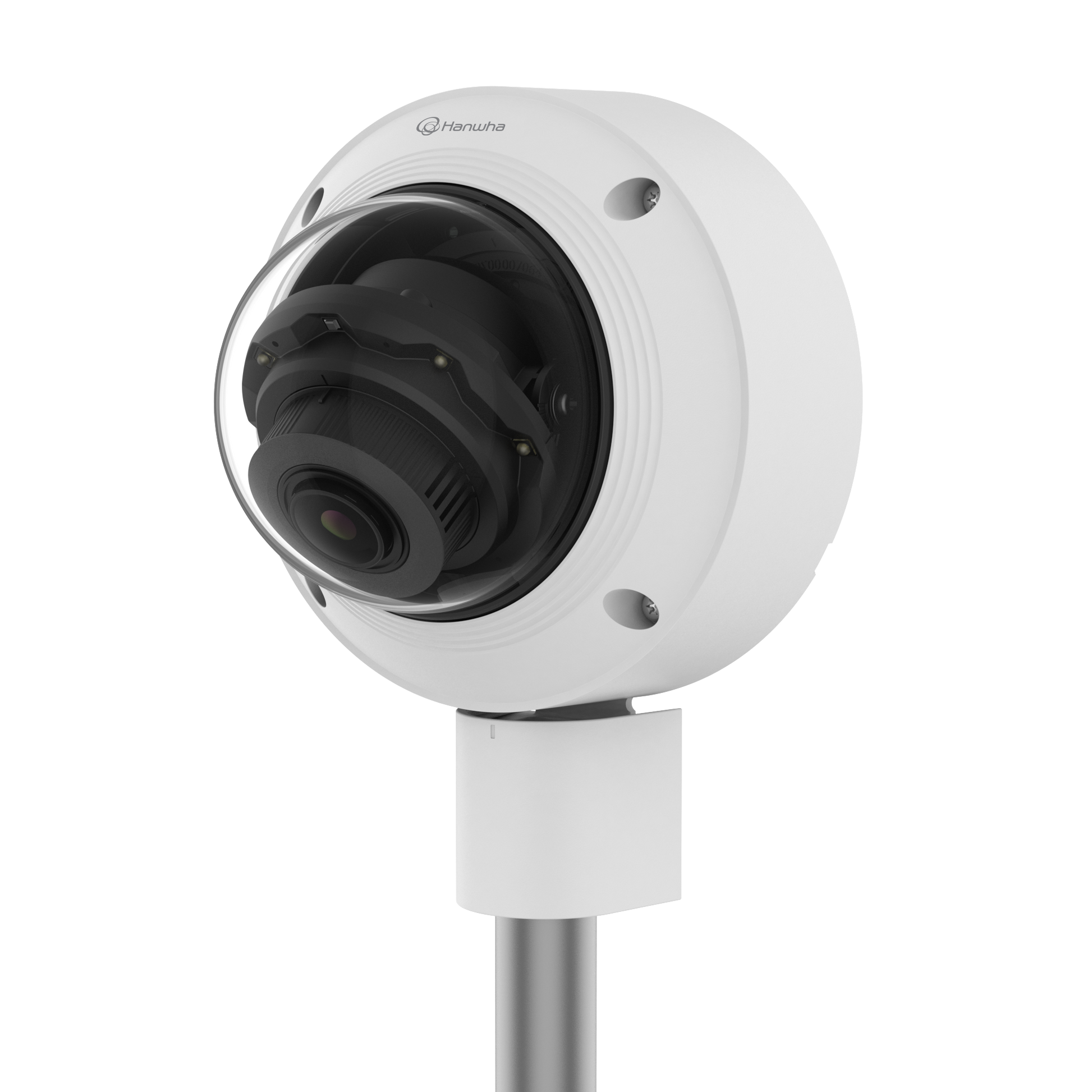

Hanwha Vision Wisenet QND-C8023R 5MP AI IR Dome Camera (Q-Core) – AI-Enhanced, Q Series Compact Surveillance with Dynamic Privacy Masking

The Hanwha Vision Wisenet QND-C8023R is a compact, feature-rich 5MP AI IR dome camera tailored for accurate surveillance in commercial, retail, and public environments. Powered by an onboard AI engine, this camera offers real-time object classification, advanced motion detection, and powerful business intelligence tools like heat mapping and people/vehicle counting.

Equipped with a 4.0mm fixed lens, 120dB WDR, and IR night vision up to 30 metres, the QND-C8023R provides outstanding video performance under any lighting condition. It also supports dynamic privacy masking (AI-based for person/vehicle), ensuring GDPR-compliant coverage without compromising surveillance effectiveness. Certified with RCM (AS/NZS), IP66-equivalent design, and PoE support, this camera is optimized for reliable performance in the Australian and New Zealand markets.

What’s in the Box

• 1x Hanwha Vision QND-C8023R Dome Camera

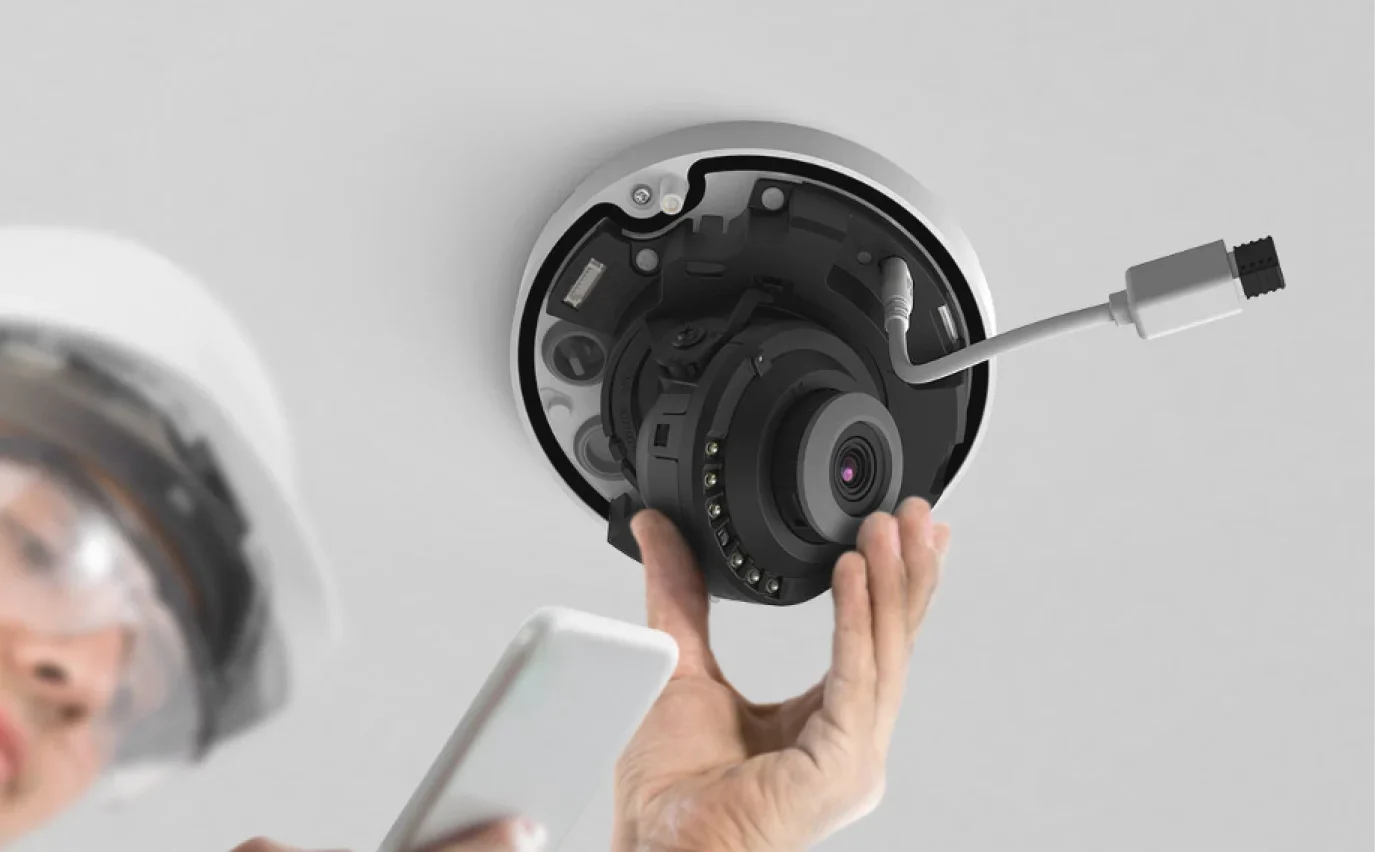

• Mounting Screws & Accessories

• Waterproof Installation Fittings

• Quick Start Guide

• Drilling Template

Main Features

• 5MP Resolution @ 30fps with 4.0mm wide-angle lens

• AI-Powered Detection for people/vehicles and behavior-based analytics

• Dynamic Privacy Masking for person and vehicle outlines (AI-based)

• IR Night Vision up to 30m (98.4 ft)

• True WDR (120dB) for challenging light scenes

• WiseStream III Compression for bandwidth optimization

• Built-in microphone, SD card slot (up to 256GB)

• PoE Powered, Max 8.1W

• ONVIF S/G/T/M support for 3rd-party VMS integration

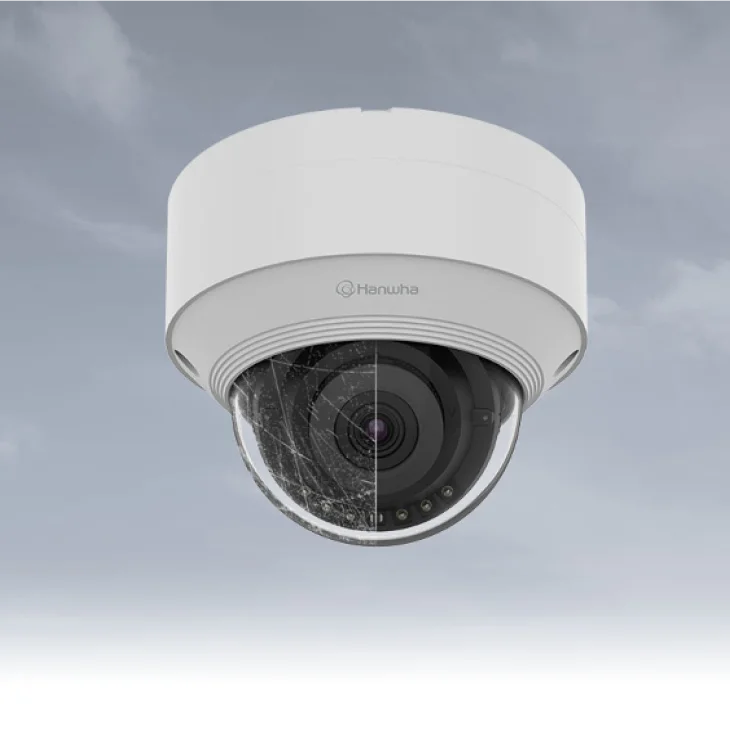

• Compact vandal-resistant dome with hard-coated bubble

• Edge recording & AI-based business intelligence (heatmap, counting, queuing)

Detailed Specifications

Camera & Imaging:

• Sensor: 1/2.8" CMOS

• Resolution: 2592x1944 max

• Min. Illumination: Color 0.05Lux | B/W 0.005Lux | 0Lux (IR on)

• Lens: 4.0mm Fixed (F1.6)

• FoV: H: 80°, V: 59°, D: 102°

• IR Distance: 30m

Video & Compression:

• Codecs: H.265, H.264, MJPEG

• Frame Rate: 30fps @ 5MP (H.265/H.264)

• Smart Codec: WiseStream III

• Rotation: Flip, Mirror, Hallway View

• WDR: 120dB

• DNR: WiseNRⅡ, SSNRⅤ

AI Analytics:

• Object Classification: Person, Vehicle (car, bus, truck, bike, motorcycle)

• Events: Motion, Intrusion, Line Crossing, Loitering, Appearance/Disappearance

• Color Attributes (upper/lower clothes, vehicle color)

• BestShot Image Capture

• Dynamic Privacy Masking: Mosaic mask for individuals/vehicles

Business Intelligence:

• Heatmap, People & Vehicle Counting, Queue Management

Audio & Alarms:

• Built-in Microphone

• Alarm I/O: 1 In / 1 Out (via optional cable SPP-C7200)

• Audio & Event triggers support MQTT, HTTP, SFTP, NAS

Network:

• Ethernet: RJ-45 (10/100BASE-T)

• Streaming: Unicast (20 users), Multicast

• Protocols: IPv4/6, HTTP/S, RTSP, SRTP, MQTT, FTP/SFTP, ONVIF Profiles S/G/T/M

• API: SUNAPI, Hanwha Open Platform

Security:

• Firmware Protection, Secure Boot

• HTTPS/WSS encryption, Digest Authentication

• 802.1X, SD Card Partition Encryption

• Brute-force protection & event logging

Storage & Memory:

• SD Card Slot: Micro SD/SDHC/SDXC (up to 256GB)

• RAM: 2GB | Flash: 1GB

Mechanical & Environmental:

• Housing: Plastic with hard-coated dome (RAL9003)

• Dimensions: Ø110 x 90mm

• Weight: 317g

• Temp: -10°C to +45°C (Operation)

• PoE Power: Max 8.1W (IEEE 802.3af, Class 3)

Certifications:

• EMC: FCC, CE, VCCI, RCM (AS/NZS CISPR 32 Class A)

• Safety: UL 62368-1, IEC/EN 62471

• Environmental: IEC/EN 63000

Warranty Information

• 3-Year Manufacturer’s Warranty

• Handled via official Australian and New Zealand authorized channels for seamless RMA and support

Brand Information

Hanwha Vision, formerly known as Hanwha Techwin, is a trusted global leader in advanced surveillance and security solutions. Backed by decades of innovation, Hanwha Vision delivers reliable, secure, and intelligent video technologies tailored to professional environments.

SKU: QND-C8023R

Practical Use Scenarios

• Retail Stores & Malls: Detect loitering and analyze foot traffic with heatmapping

• Warehouses: Track personnel and vehicle movements with AI filtering

• Educational Institutions: Maintain privacy with dynamic masking and optimize space with queue analysis

• Commercial Buildings: Identify unauthorized access with accurate object classification

• Healthcare Environments: Privacy-friendly surveillance with compliant dynamic masking

Datasheets & Downloads

• Hanwha Vision QND-C8023R

Excellence for the Australian and New Zealand Market

The Hanwha QND-C8023R is certified under RCM (AS/NZS CISPR 32 Class A) and tested for compatibility with Australian and New Zealand network standards. Its power supply conforms to local voltage specs via IEEE802.3af PoE, and all firmware is secured with signed encryption. Distributed only through authorized A/NZ channels, this ensures direct, efficient support and warranty management in the region. Its lightweight, compact design and robust environmental ratings make it perfect for local commercial, urban, and institutional deployments.

Frequently Asked Questions (FAQs) – QND-C8023R

Q1: What is the IR range of the QND-C8023R? (QND-C8023R)
The camera offers a 30m IR viewable distance, enabling clear night-time surveillance even in total darkness.

Q2: Does the QND-C8023R include privacy masking? (QND-C8023R)
Yes, it features dynamic AI-powered privacy masking for both people and vehicles, supporting privacy regulations like GDPR.

Q3: Can the QND-C8023R record locally without an NVR? (QND-C8023R)
Yes, it includes an onboard MicroSD slot (up to 256GB) for edge recording, and supports NAS-based event recording.

Q4: Is the QND-C8023R compatible with third-party VMS systems? (QND-C8023R)
Absolutely. It supports ONVIF Profiles S/G/T/M, Hanwha SUNAPI, and Hanwha Open Platform for integration flexibility.

Q5: How does the QND-C8023R perform in extreme temperatures? (QND-C8023R)
It operates reliably in environments from -10°C to +45°C, with additional protection from dust and moisture due to its sealed dome construction
