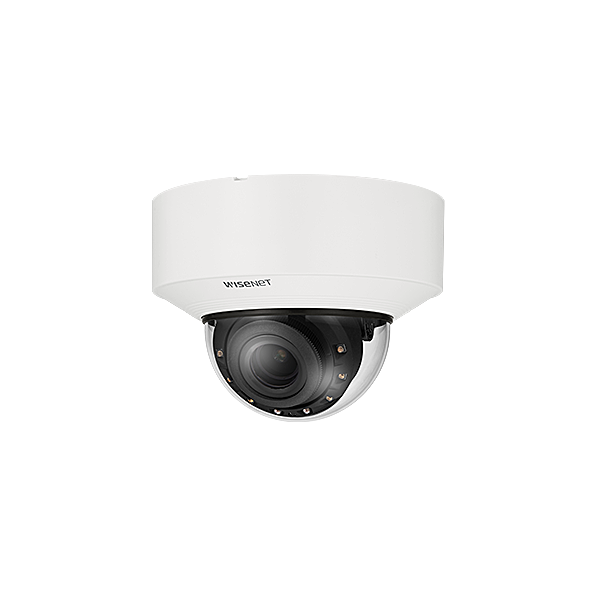

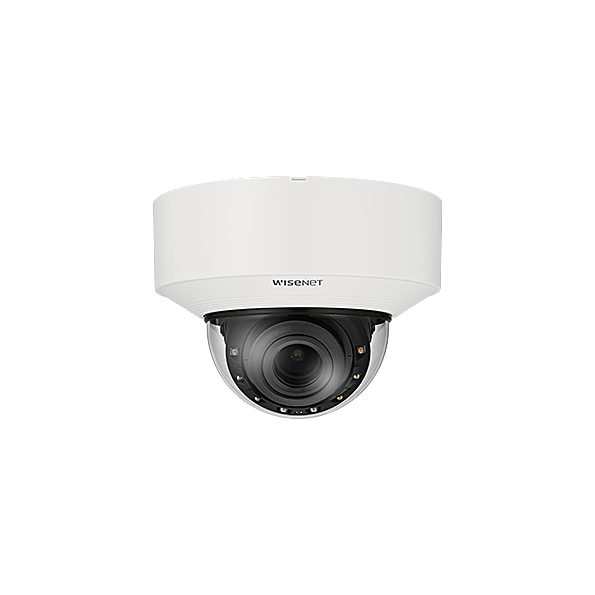

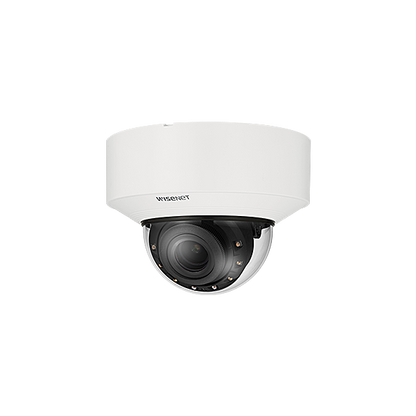

Hanwha Vision Wisenet HV-XNV-C7083R 4MP AI IR Vandal Dome Network Camera – Motorized Varifocal Lens, H.265, IP66/IP67, IK10, AI Analytics | SKU: HV-XNV-C7083R x series

Secure your premises with cutting-edge surveillance using the Hanwha Vision Wisenet HV-XNV-C7083R, a 4MP AI IR Vandal Dome Network Camera designed for exceptional image quality, robust durability, and advanced AI-powered analytics. Part of the powerful Wisenet X-CORE line, this camera delivers outstanding performance for demanding security applications in commercial, industrial, and critical infrastructure environments.

Equipped with a 2.8~10mm (3.6x) motorized varifocal lens, the HV-XNV-C7083R provides flexible field-of-view adjustments, while its impressive low-light capabilities (down to 0.038 Lux in color) and WiseIR technology ensure crystal-clear images day or night. ExtremeWDR (120 dB) effectively handles challenging lighting conditions, capturing detail even in high-contrast scenes.

Built for tough environments, this camera boasts an IP66/IP67/NEMA4X weather-resistant housing, IK10-rated vandal resistance, and a hard-coated dome bubble. Its powerful AI engine enables advanced analytics such as object detection, facial recognition, vehicle classification, license plate recognition, and Intelligent Video Analytics (IVA), enhancing situational awareness and proactive security management.

The HV-XNV-C7083R supports up to 60 fps recording at full resolution, efficient bandwidth usage through WiseStream III compression, and extensive cybersecurity features, including TPM-based security and secure boot. It integrates seamlessly into modern surveillance systems with ONVIF compatibility and offers flexible installation with PoE or 12VDC power.

Whether deployed in city surveillance, transportation hubs, retail, or industrial facilities, the Hanwha Vision Wisenet HV-XNV-C7083R sets the standard for intelligent, resilient, and high-performance video security.

What’s Included in the Box

• Hanwha Vision Wisenet HV-XNV-C7083R 4MP AI IR Vandal Dome Network Camera

• Installation Accessories (mounting hardware varies by installation type)

• Quick Installation Guide

• Optional: Compatible Mounts (e.g., SBP-167HMW) sold separately

Main Features

• High-Resolution Imaging: 4MP (2592×1520) resolution delivering crisp detail.

• Motorized Varifocal Lens: 2.8~10mm (3.6x) motorized varifocal lens with auto-focus for flexible field of view.

• Low-Light Excellence: Color images down to 0.038 Lux (F1.4, 1/30 sec) and true Day/Night with IR range up to 40 m.

• AI-Powered Analytics: Object detection (Person, Face, Vehicle types, License Plate), Virtual Line/Area detection, Intrusion detection, and more.

• High Frame Rates: Up to 60 fps at full resolution for smooth video capture.

• ExtremeWDR: 120 dB dynamic range for challenging lighting scenarios.

• WiseStream III: Advanced compression reduces bandwidth and storage requirements without sacrificing quality.

• Rugged Design: IP66, IP67, NEMA4X weather protection, and IK10 vandal resistance.

• Smart Event Handling: Motion, audio, tampering, defocus, fog detection, sound classification, shock detection.

• Flexible Power Options: Supports PoE (IEEE 802.3af) or 12VDC input.

• Edge Storage: Micro SD/SDHC/SDXC slot up to 512GB for local recording.

• Cybersecurity Ready: TPM, secure boot, firmware verification, and UL CAP certification.

Detailed Specifications

Warranty Information

Hanwha Vision provides a limited warranty for the HV-XNV-C7083R, covering defects in materials and workmanship under normal use. Warranty duration and terms may vary by region. Customers in Australia and New Zealand can rely on authorized local partners for warranty support and service.

Brand Description

Hanwha Vision (formerly Hanwha Techwin) is a globally recognized leader in advanced video surveillance solutions, delivering innovative products renowned for quality, reliability, and cutting-edge AI technology. With a focus on cybersecurity and high-performance imaging, Hanwha Vision products empower organizations worldwide to achieve safer, smarter environments.

SKU

HV-XNV-C7083R

Practical Use Scenarios

✅ Ideal for city surveillance and public safety deployments requiring robust outdoor protection and intelligent analytics.

✅ Perfect for retail stores and shopping centers needing customer analytics, people counting, and proactive security.

✅ Excellent for transportation hubs and critical infrastructure facilities demanding advanced object classification and license plate recognition.

✅ Suitable for industrial sites and warehouses where durability, low-light performance, and cybersecure video are essential.

Datasheets & Downloadable Resources

• Hanwha Vision XNV-C7083R Datasheet (Official PDF)

Excellence for the Australian and New Zealand Market

The Hanwha Vision Wisenet HV-XNV-C7083R is fully compliant with rigorous Australian and New Zealand standards, offering IP66/IP67 protection, IK10 impact resistance, and high-quality AI analytics suitable for diverse environments across ANZ. All cameras are sourced through authorized distributors, ensuring genuine products, regional compliance, and full local warranty support.

Businesses across Australia and New Zealand can trust the HV-XNV-C7083R to deliver state-of-the-art video security with local service channels ready to provide fast and efficient assistance.

 FAQs

Q1: What is the maximum resolution supported by the Hanwha HV-XNV-C7083R (SKU: HV-XNV-C7083R)?
A1: The HV-XNV-C7083R supports resolutions up to 4MP (2592×1520) for high-detail surveillance footage.

Q2: Does the Hanwha HV-XNV-C7083R (SKU: HV-XNV-C7083R) support AI-based analytics?
A2: Yes, it features powerful AI analytics including object detection, face recognition, license plate recognition, people counting, and more.

Q3: How far can the IR illumination reach on the Hanwha HV-XNV-C7083R (SKU: HV-XNV-C7083R)?
A3: The WiseIR feature allows the HV-XNV-C7083R to illuminate scenes up to 40 meters (131.23 feet) in complete darkness.

Q4: Is the Hanwha HV-XNV-C7083R (SKU: HV-XNV-C7083R) suitable for outdoor installations?
A4: Absolutely! It has IP66, IP67, and NEMA4X ratings for weather protection and IK10-rated vandal resistance, making it ideal for tough outdoor environments.

Q5: What power options does the Hanwha HV-XNV-C7083R (SKU: HV-XNV-C7083R) support?
A5: The camera can be powered via PoE (IEEE802.3af, Class 3) or 12VDC for flexible installation.
