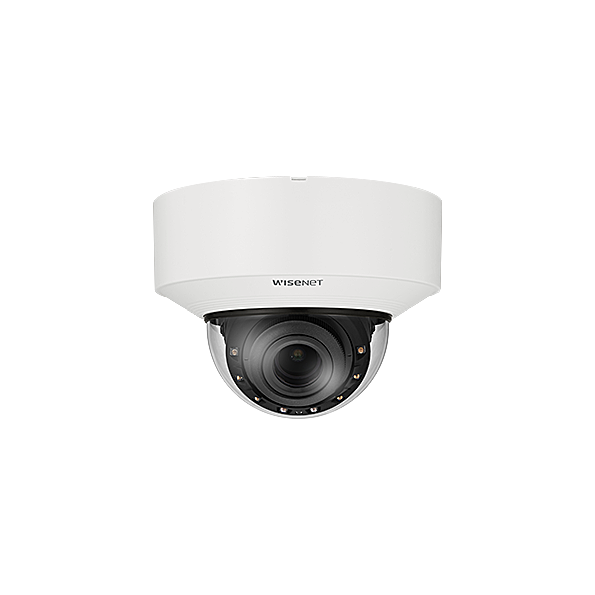

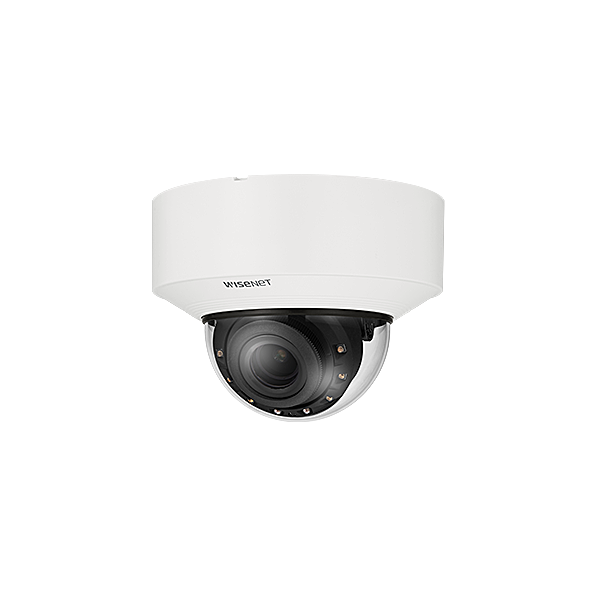

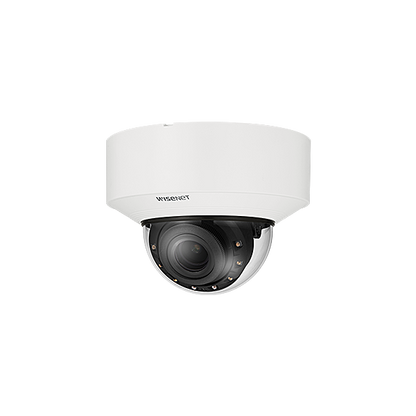

Hanwha Vision Wisenet HV-XNV-C6083R 2MP AI IR Vandal Dome Network Camera – Motorized Varifocal Lens, Extreme 150dB WDR, H.265, IK10, IP66/IP67 | SKU: HV-XNV-C6083R x series

Hanwha Vision Wisenet HV-XNV-C6083R 2MP AI IR Vandal Dome Network Camera – Motorized Varifocal Lens, Extreme 150dB WDR, H.265, IK10, IP66/IP67 | SKU: HV-XNV-C6083R x series

$1,185.24 AUD
$1,607.52 AUD $1,185.24 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Elevate your surveillance capabilities with the Hanwha Vision Wisenet HV-XNV-C6083R, a high-performance 2MP AI IR Vandal Dome Network Camera from the innovative Wisenet X-CORE series. Engineered to deliver exceptional image clarity, advanced AI-driven analytics, and rugged durability, this camera is the perfect solution for demanding commercial, industrial, and urban security applications.

Equipped with a versatile 2.8~12mm (4.3x) motorized varifocal lens, the HV-XNV-C6083R offers flexible field-of-view adjustments, capturing expansive wide shots or detailed close-ups with precision. It excels in challenging lighting conditions with a powerful extremeWDR (150 dB) feature, delivering clear and balanced images even in high-contrast scenes.

Low-light performance is equally impressive, providing color images at just 0.01 Lux and complete darkness vision with IR illumination reaching up to 40 meters. Advanced video analytics powered by an AI engine include object detection (person, face, vehicles, license plates), Intelligent Video Analytics (IVA), people counting, queue management, and heatmaps for powerful situational awareness and business intelligence.

Built to endure harsh environments, this camera is IP66/IP67 and NEMA4X-rated for weather resistance and IK10-rated for vandal protection, ensuring reliable operation in challenging outdoor and indoor locations. Integration is seamless with ONVIF support, multiple streaming profiles, and cutting-edge cybersecurity features like TPM and secure boot.

Whether deployed in city surveillance, critical infrastructure, transportation hubs, or commercial properties, the Hanwha Vision Wisenet HV-XNV-C6083R delivers next-level security intelligence and unmatched performance.

What’s Included in the Box

  • Hanwha Vision Wisenet HV-XNV-C6083R 2MP AI IR Vandal Dome Network Camera

  • Installation Accessories (mounting hardware varies by installation type)

  • Quick Installation Guide

  • Optional: Compatible Mounts (e.g., SBP-167HMW) sold separately

Main Features

  • Full HD 2MP Resolution: Crisp 1920×1080 video captures crucial details for effective surveillance.

  • Motorized Varifocal Lens: 2.8~12mm (4.3x) lens enables remote zoom and focus for optimal coverage.

  • Low-Light Excellence: Delivers color images down to 0.01 Lux (F1.4), with IR illumination up to 40m in complete darkness.

  • Extreme 150dB WDR: Balances lighting across challenging scenes to avoid overexposed or underexposed areas.

  • AI-Powered Analytics: Object detection, face recognition, vehicle classification, license plate recognition, people counting, heat mapping, and more.

  • High Frame Rates: Streams at up to 60 fps for smooth video, even in dynamic scenes.

  • WiseStream III Compression: Reduces bandwidth and storage requirements without compromising quality.

  • Durable Construction: IP66/IP67, NEMA4X, and IK10 certifications for reliable outdoor use and vandal resistance.

  • Comprehensive Event Detection: Motion, tampering, defocus, audio detection, sound classification, fog detection, and shock detection.

  • Flexible Power Options: Supports PoE (IEEE802.3af) and 12VDC input.

  • Edge Storage: MicroSD/SDHC/SDXC slot supports up to 512GB for local recording redundancy.

  • Cybersecurity Protection: Includes TPM, secure OS, firmware integrity checks, and UL CAP compliance.

Detailed Specifications

Category Details
Imaging Sensor 1/2.8" Progressive Scan CMOS
Resolution Options 1920×1080, 1280×1024, 1280×960, 1280×720, and lower
Frame Rate Up to 60fps (WDR off), up to 30fps (WDR on)
Min. Illumination Color: 0.01 Lux (F1.4, 1/30 sec, 30IRE), B/W: 0.001 Lux; 0 Lux with IR
Lens 2.812mm (4.3x) motorized varifocal, F1.4F3.6
Field of View H: 119.5° ~ 27.9°; V: 62.8° ~ 15.7°; D: 142.1° ~ 32.0°
IR Range 40 meters (131.23 feet)
WDR ExtremeWDR, up to 150 dB
Smart Analytics Object detection, IVA, face detection, license plate recognition, queue management, heat mapping
Compression H.265/H.264 (Main/High), MJPEG
Smart Codec WiseStream III
Audio Audio In (mic/line), Audio Out, sound classification
Alarm I/O 2 configurable I/O ports
Storage Micro SD/SDHC/SDXC slot (up to 512GB)
Network Protocols IPv4, IPv6, TCP/IP, UDP, RTP, HTTPS, SNMP, ONVIF Profile S/G/T, and more
Security Features HTTPS, 802.1X, TPM, secure boot, device certificates, cybersecurity compliance UL CAP
Power Supply PoE (IEEE802.3af, Class 3) or 12VDC
Power Consumption PoE: Max 12.95W; 12VDC: Max 12.5W
Operating Temp. -40°C ~ +55°C (-40°F ~ +131°F); intermittent up to +60°C
Ingress Protection IP66/IP67/NEMA4X
Impact Resistance IK10
Housing Material Aluminum, hard-coated dome bubble
Dimensions Ø160 x 118 mm (Ø6.30 x 4.65 in)
Weight 1450g (3.20 lb)

Warranty Information

Hanwha Vision offers a limited warranty covering defects in materials and workmanship for the HV-XNV-C6083R. Warranty terms vary by region. Customers in Australia and New Zealand can count on support through authorized local partners for seamless warranty service and technical assistance.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in advanced video surveillance technology, offering innovative solutions designed for reliability, security, and high-performance imaging. With a strong focus on AI-driven analytics and cybersecurity, Hanwha Vision empowers organizations to protect assets and enhance operational efficiency worldwide.

SKU

HV-XNV-C6083R

Practical Use Scenarios

✅ Ideal for city streets and public spaces requiring robust outdoor protection and intelligent analytics.

✅ Perfect for critical infrastructure facilities needing high dynamic range imaging and proactive security measures.

✅ Excellent for commercial properties, retail environments, and logistics centers demanding accurate object and license plate detection.

✅ Suitable for transportation hubs where high-resolution video and advanced analytics enhance passenger safety and operational monitoring.

Datasheets & Downloadable Resources

Excellence for the Australian and New Zealand Market

The Hanwha Vision Wisenet HV-XNV-C6083R complies with strict Australian and New Zealand standards, featuring IP66/IP67 weather protection and IK10 vandal resistance. Optimized for diverse conditions across the ANZ region, it guarantees stable operation in both urban and industrial environments.

All Hanwha Vision products distributed in Australia and New Zealand are sourced through official channels, ensuring genuine products, regional compliance, and comprehensive local support. Organizations in ANZ can deploy the HV-XNV-C6083R with confidence, knowing they have access to trusted local service and expertise.

 FAQs

Q1: What is the maximum resolution supported by the Hanwha HV-XNV-C6083R (SKU: HV-XNV-C6083R)?
A1: The HV-XNV-C6083R delivers 2MP resolution with crisp 1920×1080 video for detailed surveillance coverage.

Q2: Does the Hanwha HV-XNV-C6083R (SKU: HV-XNV-C6083R) include AI analytics?
A2: Yes! It features AI-powered analytics for object detection, face recognition, vehicle classification, license plate recognition, and more.

Q3: How far does the IR illumination reach on the Hanwha HV-XNV-C6083R (SKU: HV-XNV-C6083R)?
A3: The WiseIR system provides infrared illumination up to 40 meters (131.23 feet), ensuring clear night-time surveillance.

Q4: Is the Hanwha HV-XNV-C6083R (SKU: HV-XNV-C6083R) suitable for outdoor use?
A4: Absolutely. It’s rated IP66, IP67, and NEMA4X for weather resistance, and IK10 for impact protection, making it ideal for harsh outdoor environments.

Q5: What power options are available for the Hanwha HV-XNV-C6083R (SKU: HV-XNV-C6083R)?
A5: The camera can be powered via PoE (IEEE802.3af, Class 3) or 12VDC, providing flexibility for various installation requirements.
