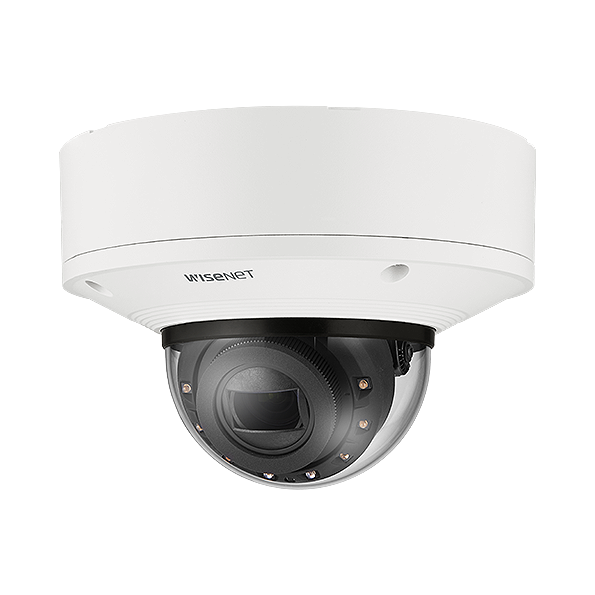

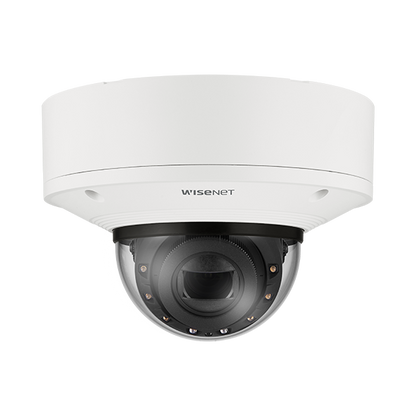

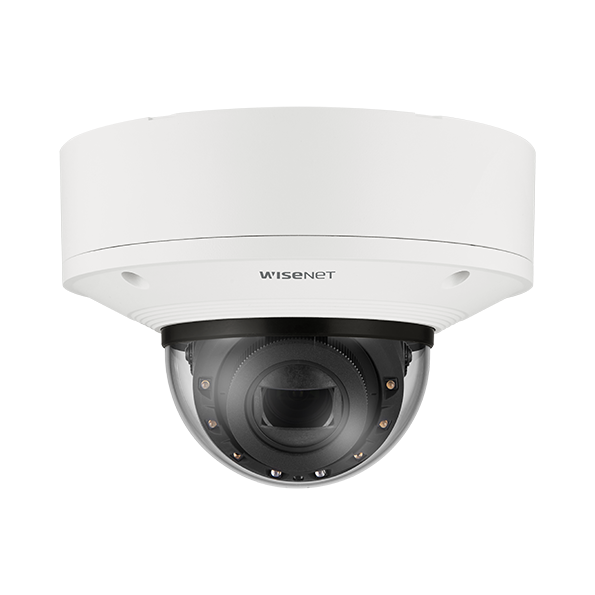

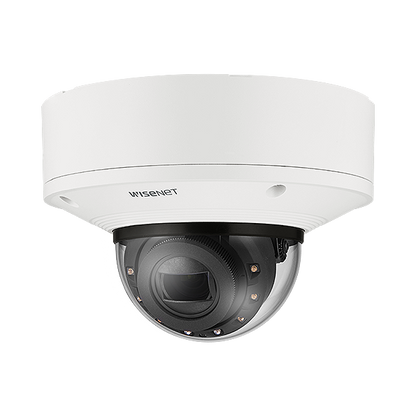

Hanwha Vision Wisenet HV-XNV-8083R 6MP AI IR Outdoor Vandal Dome Camera – Motorized Varifocal Lens, Extreme 120dB WDR, IK10+, IP6K9K, Dual SD Slots | SKU: HV-XNV-8083R x series

Empower your security system with the Hanwha Vision Wisenet HV-XNV-8083R, a robust 6MP AI IR Vandal Dome Camera engineered for superior image clarity, advanced analytics, and resilience in harsh environments. As part of the powerful X-PLUS series, this camera integrates cutting-edge AI technology with durable construction, making it an excellent choice for demanding outdoor applications like city surveillance, transportation hubs, critical infrastructure, and industrial facilities.

Special order item - Ask CCTV Tradie for the ETA

The HV-XNV-8083R offers brilliant 6MP resolution, providing highly detailed imagery suitable for forensic investigations and real-time monitoring. Its 4.4~9.3mm (2.1x) motorized varifocal lens with P-iris ensures flexible coverage, from wide-area overviews to detailed close-ups. ExtremeWDR (120 dB) technology delivers exceptional clarity in challenging lighting conditions, capturing details in both bright and dark areas of the scene.

Low-light performance is exceptional, with color images down to 0.04 Lux and complete darkness vision thanks to WiseIR illumination extending up to 50 meters. Built-in AI analytics enable precise object detection—including people, vehicles, faces, and license plates—and advanced Intelligent Video Analytics (IVA) for real-time situational awareness. Operators can easily search recorded footage for specific events or objects, dramatically reducing investigation times.

Designed for rugged environments, the HV-XNV-8083R features IP66/IP67/IP6K9K weatherproofing, NEMA4X corrosion resistance, and IK10+ vandal protection. Advanced cybersecurity measures, including TPM 2.0, secure boot, and UL CAP compliance, protect your network against cyber threats.

Whether safeguarding busy urban streets, critical infrastructure, or sensitive commercial facilities, the HV-XNV-8083R delivers top-tier video performance, intelligence, and reliability.

What’s Included in the Box

• Hanwha Vision Wisenet HV-XNV-8083R 6MP AI IR Vandal Dome Camera

• Mounting screws and accessories

• Quick Installation Guide

• Optional accessories (e.g., SBP-187HMW) sold separately

Main Features

• High-Resolution Imaging: 6MP resolution (3328×1872) delivers stunning clarity for detailed monitoring.

• Motorized Varifocal Lens: 4.4~9.3mm (2.1x zoom) with P-iris control for precise focus and field-of-view adjustments.

• Low-Light Performance: Captures color images at just 0.04 Lux; WiseIR extends IR illumination up to 50 meters.

• ExtremeWDR (120 dB): Balances scenes with intense backlight and shadows for optimal visibility.

• AI Analytics: Detects people, faces, vehicles, license plates, and performs IVA tasks like loitering, intrusion, virtual line detection, and more.

• Robust Event Detection: Defocus, motion, tampering, fog, audio detection, sound classification, shock detection, appear/disappear events.

• Business Intelligence: Features people counting, queue management, and heat mapping for operational insights.

• Rugged Construction: IP66/IP67/IP6K9K, NEMA4X-rated for weather and corrosion resistance, IK10+ vandal protection.

• Cybersecurity Protection: Includes TPM 2.0, secure boot, device certificate, and UL CAP compliance for robust network security.

• High Durability: Operating temperature from -50°C to +55°C with support for harsh environments.

• Edge Storage: Dual microSD slots supporting up to 1TB for local video retention and redundancy.

Detailed Specifications

Warranty Information

Hanwha Vision provides a limited warranty covering defects in materials and workmanship for the HV-XNV-8083R. Warranty terms vary by region. Customers in Australia and New Zealand benefit from support via authorized local distributors, ensuring hassle-free service and repairs.

Brand Description

Hanwha Vision (formerly Hanwha Techwin) is a global leader in professional video surveillance, offering advanced cameras and systems with exceptional imaging, AI analytics, and robust cybersecurity. Trusted worldwide, Hanwha Vision products secure critical infrastructure, urban environments, and commercial enterprises with unmatched reliability.

SKU

HV-XNV-8083R

Practical Use Scenarios

✅ Ideal for critical infrastructure protection where high-resolution video and advanced analytics improve situational awareness.

✅ Perfect for urban surveillance projects needing AI-driven object detection and extreme durability.

✅ Excellent for transportation hubs and public spaces demanding low-light performance and vandal resistance.

✅ Suitable for commercial facilities requiring business intelligence like people counting and heat mapping.

Datasheets & Downloadable Resources

• Hanwha Vision XNV-8083R Datasheet (Official PDF)

Excellence for the Australian and New Zealand Market

The Hanwha Vision Wisenet HV-XNV-8083R meets stringent Australian and New Zealand standards for reliable performance in diverse environmental conditions. Featuring IP66/IP67/IP6K9K and IK10+ ratings, it’s well-suited for tough ANZ deployments. All products are sourced through authorized channels, ensuring full warranty coverage and local support.

Businesses across Australia and New Zealand can confidently deploy the HV-XNV-8083R, knowing they’re investing in genuine technology backed by Hanwha Vision’s world-class support network.

 FAQs

Q1: What resolution does the Hanwha HV-XNV-8083R (SKU: HV-XNV-8083R) support?
A1: The HV-XNV-8083R provides 6MP resolution at 3328×1872, delivering outstanding detail for critical monitoring.

Q2: How far does the IR illumination reach on the Hanwha HV-XNV-8083R (SKU: HV-XNV-8083R)?
A2: The camera’s WiseIR feature extends infrared illumination up to 50 meters (164.04 feet).

Q3: Does the Hanwha HV-XNV-8083R (SKU: HV-XNV-8083R) support AI analytics?
A3: Absolutely! It offers AI-driven object detection, IVA analytics, business intelligence tools like people counting, and more.

Q4: Is the Hanwha HV-XNV-8083R (SKU: HV-XNV-8083R) suitable for harsh outdoor environments?
A4: Yes. It’s rated IP66/IP67/IP6K9K, NEMA4X, and IK10+, making it ideal for extreme weather and vandal-prone areas.

Q5: What power options does the Hanwha HV-XNV-8083R (SKU: HV-XNV-8083R) support?
A5: The camera supports PoE+ (IEEE802.3at Class 4) and 12VDC, with power redundancy for reliable operation.
