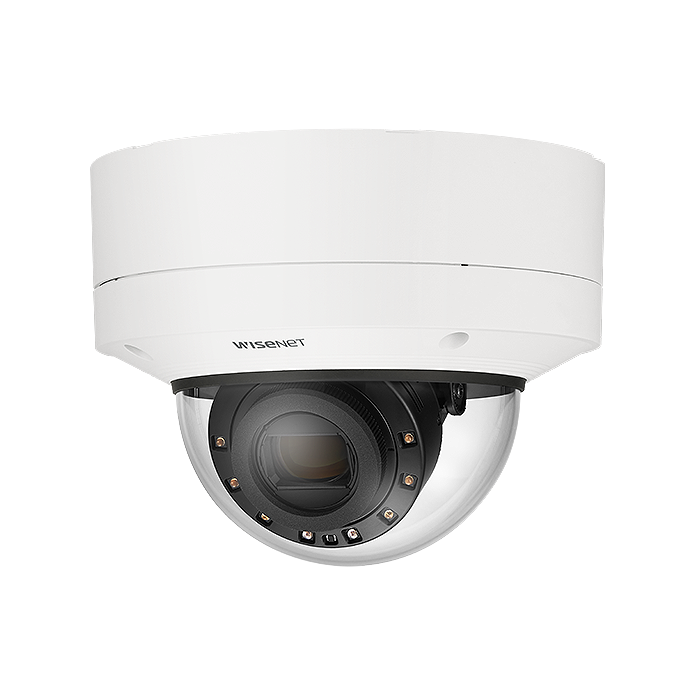

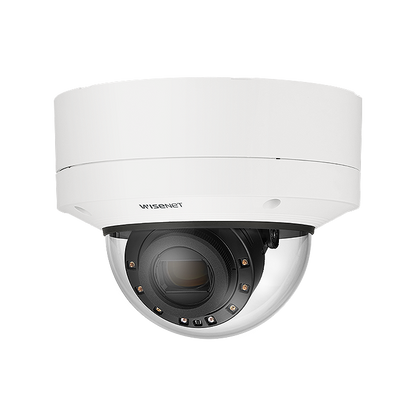

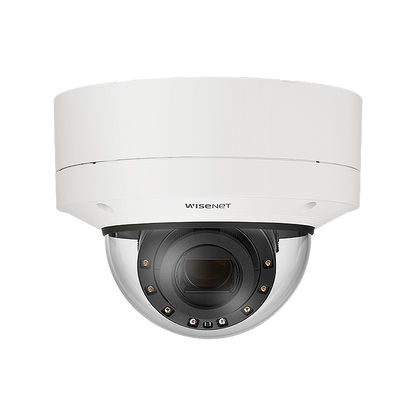

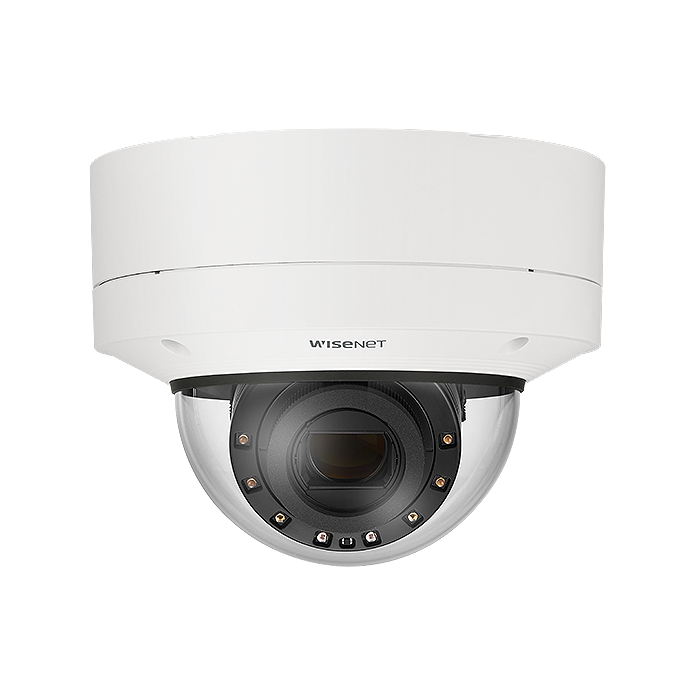

Hanwha Vision Wisenet HV-XNV-6123R 2MP AI IR Outdoor Vandal Dome Camera – 12x Motorized Zoom, Extreme 150dB WDR, 120fps, IP6K9K, IK10+ | SKU: HV-XNV-6123R x series

Boost your surveillance capabilities with the Hanwha Vision Wisenet HV-XNV-6123R, a powerful 2MP AI IR Vandal Dome Network Camera designed for exceptional clarity, durability, and intelligent analytics. Part of the Wisenet X-PLUS series, this camera combines ultra-high zoom, advanced imaging, and AI-driven features, making it an ideal choice for critical outdoor and high-security installations.

Equipped with an impressive 5.2~62.4mm (12x optical) motorized varifocal lens and additional 32x digital zoom, the HV-XNV-6123R delivers unmatched flexibility, capturing scenes from wide areas to fine details over long distances. Extreme low-light capabilities allow color images down to 0.03 Lux, while WiseIR technology illuminates up to 90 meters in total darkness for clear night vision.

Its extremeWDR technology provides up to 150dB dynamic range, ensuring high-quality images even in complex lighting situations. With frame rates up to 120fps (WDR off), this camera ensures smooth video capture for critical monitoring applications.

AI-driven analytics elevate security operations by detecting objects (people, faces, vehicles, license plates) and triggering alerts for defined activities such as intrusion, loitering, or directional movement. Additional events like defocus, motion, tampering, audio detection, and fog detection provide comprehensive situational awareness.

Built for extreme environments, the camera features IP66/IP67/IP6K9K, NEMA4X, and IK10+ certifications for water, dust, and impact resistance. A hard-coated dome bubble ensures long-term durability, while advanced cybersecurity measures—including TPM, secure boot, and UL CAP compliance—protect your network from cyber threats.

Whether securing city streets, transportation hubs, industrial sites, or critical infrastructure, the Hanwha HV-XNV-6123R offers exceptional clarity, intelligence, and ruggedness for demanding surveillance needs.

What’s Included in the Box

• Hanwha Vision Wisenet HV-XNV-6123R 2MP AI IR Outdoor Vandal Dome Camera

• Mounting accessories (screws and brackets vary by installation)

• Quick Installation Guide

• Optional compatible mounts (e.g., SBP-300PM, SBP-300CM) sold separately

Main Features

• High-Speed 2MP Imaging: Delivers crisp 1920×1080 video with up to 120 fps for smooth, detailed footage.

• 12x Optical Motorized Zoom: 5.2~62.4mm lens allows flexible monitoring from wide-area views to focused details.

• Low-Light Excellence: Captures color images at just 0.03 Lux and offers IR illumination up to 90m.

• ExtremeWDR (150dB): Handles complex lighting conditions to reveal critical details in shadows and highlights.

• AI-Powered Analytics: Detects people, faces, vehicles, license plates, and triggers alerts based on behavior analytics.

• Robust Event Detection: Includes defocus detection, motion, tampering, audio detection, fog detection, and shock detection.

• High Durability: IP66/IP67/IP6K9K, NEMA4X, and IK10+ protection for extreme outdoor conditions and vandal resistance.

• WiseStream III Compression: Reduces bandwidth without sacrificing video quality.

• Flexible Power Options: Supports PoE+ (IEEE802.3at) and 12VDC with power redundancy.

• Edge Storage: Dual microSD slots support up to 1TB (512GB x 2) for local video storage.

• Advanced Cybersecurity: Includes TPM 2.0, secure boot, and UL CAP compliance for secure operation.

Detailed Specifications

Warranty Information

Hanwha Vision offers a limited warranty covering defects in materials and workmanship for the HV-XNV-6123R. Warranty duration and terms may vary by region. Customers in Australia and New Zealand can count on local support from authorized distributors for warranty and technical assistance.

Brand Description

Hanwha Vision (formerly Hanwha Techwin) is a global leader in advanced surveillance technology, delivering innovative solutions that combine high-resolution imaging, AI analytics, and robust cybersecurity. Trusted worldwide, Hanwha Vision products protect critical infrastructure, urban spaces, and commercial environments with reliability and cutting-edge performance.

SKU

HV-XNV-6123R

Practical Use Scenarios

✅ Perfect for city surveillance and critical infrastructure requiring long-range zoom and intelligent analytics.

✅ Ideal for transportation hubs like airports, ports, and rail stations where wide coverage and detailed inspection are needed.

✅ Excellent for industrial sites and logistics centers demanding rugged cameras with high zoom and low-light performance.

✅ Suitable for perimeter security applications requiring high frame rates and AI-driven event detection.

Datasheets & Downloadable Resources

• Hanwha Vision XNV-6123R Datasheet (Official PDF)

Excellence for the Australian and New Zealand Market

The Hanwha Vision Wisenet HV-XNV-6123R is fully compliant with stringent Australian and New Zealand standards. Its extreme durability, IP6K9K and IK10+ ratings, and advanced AI analytics make it a perfect fit for diverse environments in the ANZ region.

All Hanwha products sold in Australia and New Zealand are sourced through authorized distribution channels, ensuring genuine products and full local warranty support. Businesses across ANZ can deploy the HV-XNV-6123R with confidence, knowing they have access to world-class technology and reliable regional service.

 FAQs

Q1: What is the maximum resolution supported by the Hanwha HV-XNV-6123R (SKU: HV-XNV-6123R)?
A1: The HV-XNV-6123R provides 2MP resolution with crisp 1920×1080 video for high-detail surveillance.

Q2: How far can the Hanwha HV-XNV-6123R (SKU: HV-XNV-6123R) see in darkness?
A2: The WiseIR feature enables IR illumination up to 90 meters (295.28 feet) for clear night-time monitoring.

Q3: Does the Hanwha HV-XNV-6123R (SKU: HV-XNV-6123R) support AI analytics?
A3: Yes! It features AI-powered analytics for detecting people, vehicles, faces, license plates, and behavioral events like intrusion and loitering.

Q4: Is the Hanwha HV-XNV-6123R (SKU: HV-XNV-6123R) suitable for harsh outdoor environments?
A4: Absolutely. It’s rated IP66/IP67/IP6K9K, NEMA4X, and IK10+ for extreme weather resistance and vandal protection.

Q5: What power options does the Hanwha HV-XNV-6123R (SKU: HV-XNV-6123R) support?
A5: The camera can operate on PoE+ (IEEE802.3at, Class 4) or 12VDC with power redundancy for uninterrupted operation.
