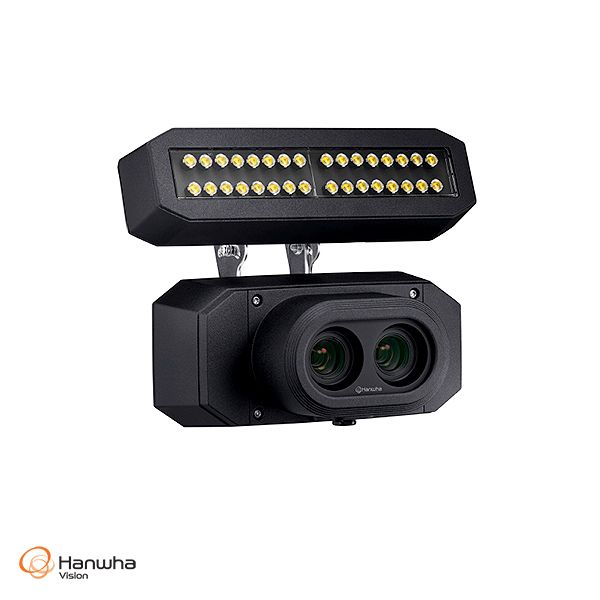

The Hanwha Vision TNS-9060IBC is a cutting-edge Dual Sensor BCR Camera engineered to streamline logistics automation and enhance parcel tracking efficiency. This bi-functional device integrates 4K Mono and Color imaging to deliver high-precision barcode recognition even on high-speed conveyor belts, while also offering detailed video monitoring. Built with reinforced durability and intelligent AI features, it is ideal for robust industrial environments.
What’s Included
-
TNS-9060IBC Dual Sensor BCR Camera
-
Mounting hardware and installation bracket
-
User manual
Main Features
-
Dual global sensors: 1” Mono 4K + 1” Color 4K CMOS
-
35mm fixed lens with wide field of view
-
AI-based barcode localization and recognition
-
Supports various 1D barcode standards including Code128, Code39, Code93, Codabar, ITF, UPC, and EAN
-
Captures barcodes at conveyor speeds up to 2m/s
-
Durable design: IP66, IP67, IK10, NEMA TS-2 compliance
-
Advanced thermal and humidity control
-
Max resolution: 4096x2160 @ 20fps for both sensors
-
Integrated 48 White LEDs for enhanced illumination
Detailed Specifications
-
Resolution: Mono & Color – 4096x2160 (4K)
-
Max Frame Rate: 20fps (Mono & Color)
-
Lens: 35mm fixed, F8.0 aperture, C-Mount
-
Min Object Distance: 0.2m
-
Compression Formats: H.264, H.265, MJPEG
-
Analytics: Real-time barcode tracking, AI-based search
-
Connectivity: M12 8-pin Ethernet, 10/100/1000BASE-T
-
Power: 24VDC, Max 35.4W
-
Operating Temperature: -40°C to +55°C
-
Housing: Black aluminum, IP66/67, IK10
-
Weight: 3.44 kg (with bracket)
-
Certifications: FCC, CE/UKCA, NEMA TS-2, UL 62368-1, IK10, IP67
Warranty Information
Backed by Hanwha Vision with a comprehensive 24-month warranty.
Brand Overview
Hanwha Vision, formerly Hanwha Techwin, is a global leader in video surveillance solutions. Renowned for innovation, reliability, and advanced analytics, Hanwha’s technology supports mission-critical applications worldwide.
SKU
HV-TNS-9060IBC
Practical Use Scenarios
-
Automated warehouse logistics
-
High-speed parcel tracking systems
-
Industrial barcode validation
-
Security-integrated shipping centers
Datasheets or Downloadable Resources
Excellence for the Australian and New Zealand Market
-
Meets all Australian IP and IK standards
-
Rigorously tested for durability under industrial conditions
-
Sourced from authorized Hanwha Vision distributors
-
Direct brand-supported warranty and service handling
-
Fully compatible with local infrastructure and safety codes
FAQs (SKU: HV-TNS-9060IBC)
Q1: What barcode types are supported by the HV-TNS-9060IBC?
A1: The HV-TNS-9060IBC supports 1D barcodes including Code128, Code39, Code93, Codabar, ITF, UPC, and EAN.
Q2: What is the maximum conveyor belt speed the HV-TNS-9060IBC can monitor?
A2: It can track barcodes on conveyor belts moving at speeds up to 2m/s (6.5 ft/s).
Q3: Does the HV-TNS-9060IBC include both video and barcode data monitoring?
A3: Yes, it integrates 4K video monitoring with advanced barcode tracking simultaneously.
Q4: Is the HV-TNS-9060IBC suitable for outdoor use?
A4: Yes, it features IP66/IP67 and IK10 ratings, making it suitable for harsh environments.
Q5: What power supply does the HV-TNS-9060IBC require?
A5: It operates on 24VDC and can consume up to 35.4W with LED lighting active.
