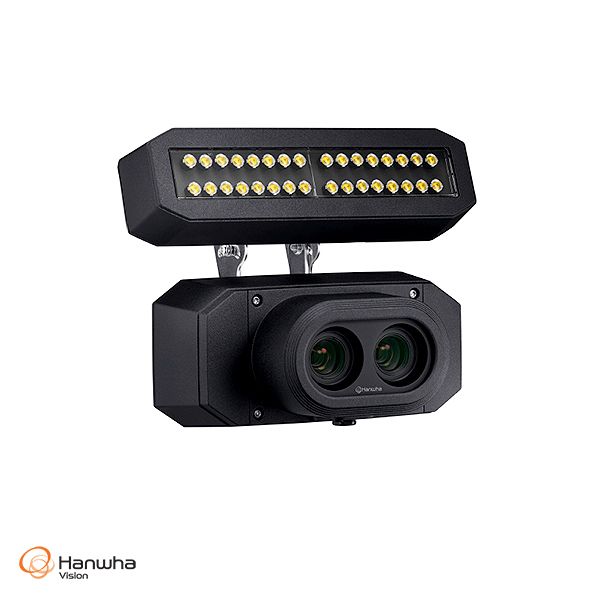

Hanwha Vision TNS-9050IBC Dual Sensor BCR 4K Camera, AI Barcode Tracking, 25mm Lens, IP66/IK10 Rated, Multi-Sensor, 8MP, 20FPS – HV-TNS-9050IBC T Series

The Hanwha Vision TNS-9050IBC is a cutting-edge Dual Sensor BCR 4K Camera, built for high-precision barcode recognition and advanced video monitoring. Perfect for high-speed logistics automation, this camera features a dual global shutter (MONO & COLOR 4K 1") setup, powerful AI-based barcode location tracking, and an expansive 25mm fixed lens that enables optimal wide field-of-view surveillance.

Its industrial-grade design includes IP66/IP67/IK10 ratings and compliance with NEMA TS-2 standards for rugged, high-vibration environments. The TNS-9050IBC ensures accurate parcel tracking with enhanced security protocols and real-time monitoring capabilities.

What's in the Box

• 1x Hanwha Vision TNS-9050IBC Dual Sensor BCR 4K Camera

• LED Illumination Module

• Mounting Bracket

• User Manual

• Warranty Documentation

Main Features

• Dual Sensor Imaging: Global Shutter Mono 1” & Color 1” CMOS with 4096x2160 resolution.

• AI Barcode Recognition: Supports 1D codes like Code128, Codabar, and ITF.

• Wide Field of View: 25mm fixed focal length with a horizontal FOV of 30.4°.

• Rugged Build: IP66/IP67 rated, IK10 impact resistance, certified for shock/vibration.

• Connectivity: M12 8pin Ethernet (10/100/1000BASE-T).

• Lighting: Built-in 32x White LEDs.

• Streaming: H.265/H.264/MJPEG support, Unicast/Multicast with up to 6 users.

• Advanced Security: HTTPS, SRTP, WebSocket Secure, TPM module for secure boot and data encryption.

• Operating Temp: -40°C to +55°C, built to withstand extreme environments.

Detailed Specifications

• Imaging Sensor: Dual Global Shutter 1” CMOS

• Max. Resolution: 4096x2160 (Mono & Color)

• Frame Rate: Up to 20fps per sensor

• Lens: 25mm, Manual Focus, C-Mount

• Compression: H.265, H.264 (Main/High), MJPEG

• Network Protocols: IPv4/6, HTTP/S, RTP, RTSP, NTP, SNMPv1/v2c/v3, FTP, IGMP, DNS, SRTP

• Operating Voltage: 24VDC

• Power Consumption: Max 28.6W with LEDs on

• Certifications: FCC, CE, IK10, IP66/67, NEMA TS-2, EN 60068-2-6/27

• Dimensions: Camera: 218 x 104.1 x 127.1 mm, LED: 255.8 x 73.8 x 49.8 mm

• Weight: Total 3.438kg (with bracket)

Warranty

Backed by Hanwha Vision with a standard manufacturer's warranty for peace of mind.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in advanced video surveillance technologies, offering smart, AI-powered security solutions with unmatched performance, durability, and integration capabilities.

SKU

HV-TNS-9050IBC

Practical Use Scenarios

• Warehouse Logistics: Accurate barcode tracking on fast-moving conveyor belts.

• Parcel Hubs: Enhanced monitoring and delivery validation with dual sensor footage.

• Industrial Automation: Barcode scanning combined with 4K video for quality assurance.

• Security Operations: Real-time barcode reading and visual monitoring for asset tracking.

Datasheet & Resources

📄 Download TNS-9050IBC Datasheet

Excellence for the Australian and New Zealand Market

• Fully compliant with Australian IP and IK ratings.

• Built to perform in local environmental conditions from -40°C to +55°C.

• Exclusively sourced via authorized Hanwha Vision distributors.

• Warranty and product support are handled directly through Hanwha Vision AU/NZ.

• Ideal for logistics, retail, and industrial sectors throughout Australia and New Zealand.

FAQs – HV-TNS-9050IBC

Q: What is the maximum barcode scanning speed of the HV-TNS-9050IBC?
A: The camera supports AI barcode detection on conveyors moving up to 2m/s (6.5ft/s).

Q: Can HV-TNS-9050IBC function outdoors?
A: Yes, with IP66/IP67 ratings and operation down to -40°C, it's built for harsh outdoor environments.

Q: What video compression formats are supported on HV-TNS-9050IBC?
A: It supports H.265, H.264 (Main/High), and MJPEG for flexible streaming.

Q: Is the HV-TNS-9050IBC NDAA compliant?
A: Yes, Hanwha Vision designs products with global compliance, including NDAA and cybersecurity standards.

Q: How is security managed on the HV-TNS-9050IBC?
A: Advanced security includes HTTPS, secure firmware, TPM, IP filtering, and SRTP.
