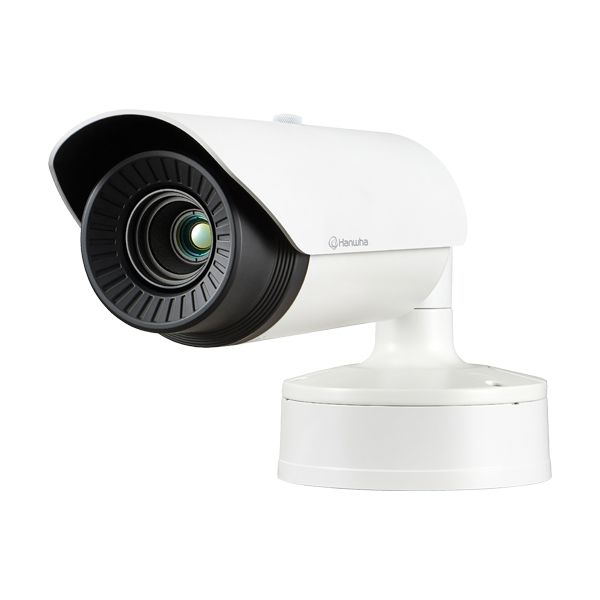

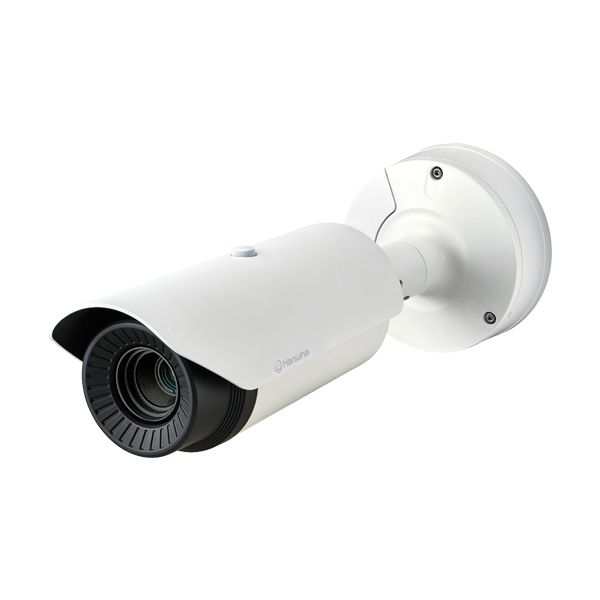

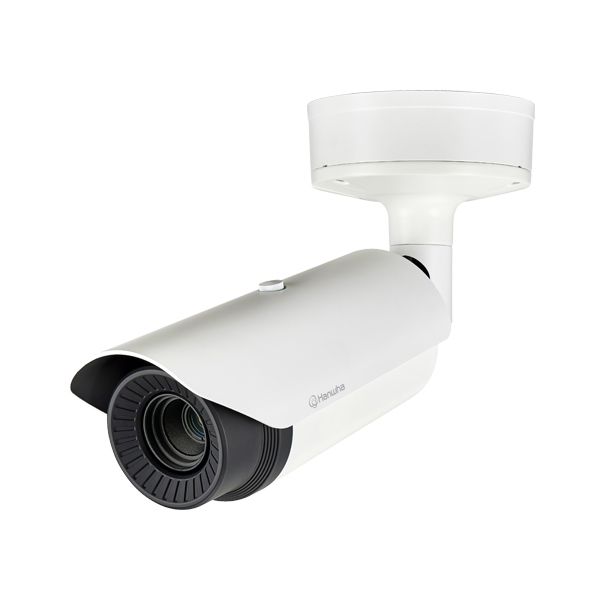

Hanwha Vision T-Series VGA Thermal Radiometry Camera | 640x480 | 19mm Fixed Lens | IP66 IK10 | PoE | HV-TNO-L4040TR

The Hanwha Vision HV-TNO-L4040TR is a high-performance VGA Thermal Radiometry Camera, engineered for environments requiring precision temperature monitoring and reliable security in challenging conditions. Equipped with a 19mm fixed focal lens, it supports a resolution of 640x480 and captures critical data with advanced thermal imaging at up to 8fps. Its AI-based analytics features include directional detection, motion detection, and temperature monitoring across six quadrangle ROI zones, making it ideal for industrial, transport, and infrastructure applications.

What's in the Box

• Hanwha Vision TNO-L4040TR Thermal Radiometry Camera

• Installation hardware

• Quick setup guide

Main Features

• Thermal Resolution: 640x480 VGA with hybrid palette options

• Lens: 19mm fixed focal lens, F1.0 aperture

• Radiometry Range: -20°C to 130°C with ±5°C/±20% accuracy

• Video Compression: H.265, H.264, MJPEG

• AI Analytics: Motion, directional, audio, tampering, loitering, temperature, shock detection

• Power Options: PoE, 24V AC, 12V DC

• Durability: IP66, IK10, NEMA 4X-rated enclosure

• Edge Storage: Up to 256GB Micro SD card

Detailed Specifications

• Imaging Device: Uncooled micro bolometer

• Field of View: H: 32°, V: 24.3°, D: 39.2°

• Temperature Detection Zones: 6 ROI, full FoV

• Audio: Mic/Line In, Line Out

• Alarm I/O: 1 Input / 2 Output

• Network Protocols: ONVIF S/G/T, IPv4/IPv6, MQTT, HTTPS

• Build: White aluminum, ø101.97x401.8mm, 3.124kg

• Operating Temp: -40°C to +60°C

• Certifications: IP66, IK10, NEMA 4X

Warranty

24 Months Manufacturer Warranty

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in security technology and intelligent video surveillance solutions, offering innovative products built to the highest standards of quality and reliability.

SKU

HV-TNO-L4040TR

Practical Use Scenarios

• Industrial sites requiring thermal monitoring for equipment and safety

• Secure facilities with stringent environmental and security standards

• Transport logistics centers needing visual and thermal event detection

• Utilities and critical infrastructure surveillance

Datasheet or Downloadable Resources

Download the HV-TNO-L4040TR Datasheet

Excellence for the Australian and New Zealand Market

This product meets the high standards expected in the Australian and New Zealand security sectors. It is fully compliant with regional regulations and performance expectations, sourced through authorized Hanwha Vision representatives. Local warranty support ensures quick resolution and technical reliability for mission-critical applications.

FAQs (SKU: HV-TNO-L4040TR)

Q: What is the temperature detection range of the HV-TNO-L4040TR?
A: The temperature detection range is from -20°C to 130°C.

Q: Is the HV-TNO-L4040TR weather-resistant for outdoor use?
A: Yes, it has IP66, IK10, and NEMA 4X ratings, making it suitable for harsh outdoor environments.

Q: Does the HV-TNO-L4040TR support SD card storage?
A: Yes, it supports Micro SD/SDHC/SDXC cards up to 256GB.

Q: What power options are supported by the HV-TNO-L4040TR?
A: It supports PoE, 24VAC, and 12VDC.

Q: Does the HV-TNO-L4040TR provide analytics for temperature monitoring?
A: Yes, it supports radiometric analytics including six ROI zones and spot temperature readings.
