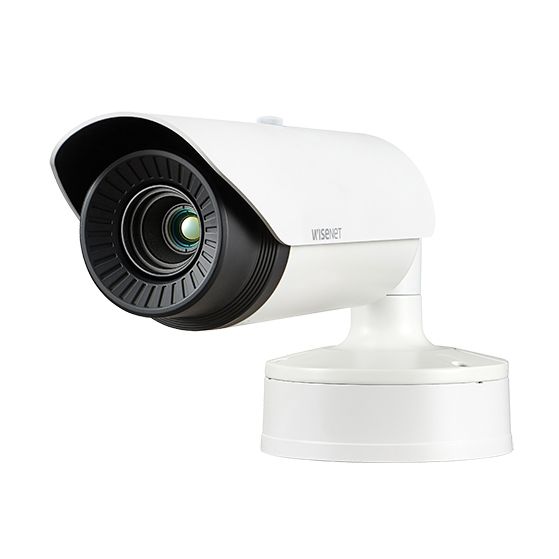

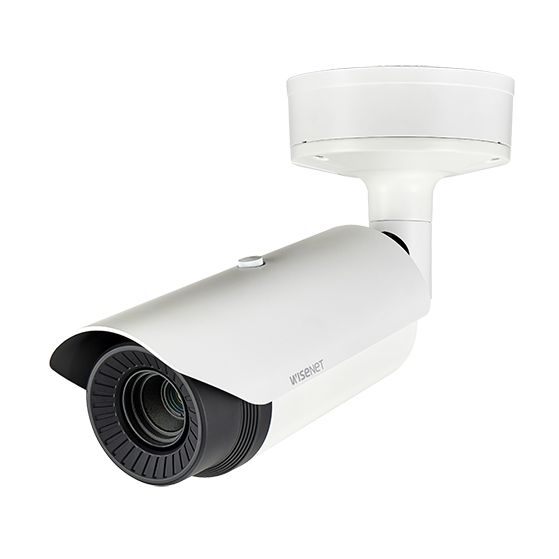

Hanwha Vision T-Series VGA Thermal Camera (8FPS) | HV-TNO-L4050T

Hanwha Vision T-Series VGA Thermal Camera (8FPS) | HV-TNO-L4050T

$9,006.60 AUD
$12,240.00 AUD $9,006.60 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Upgrade your thermal surveillance with the Hanwha Vision HV-TNO-L4050T, a robust VGA thermal camera engineered for precision monitoring in high-demand environments. Featuring a high-sensitivity uncooled micro bolometer sensor and a 35mm fixed focal lens, this unit captures clear thermal imaging at a resolution of 640 x 480. Ideal for industrial, perimeter, or critical infrastructure security applications, it supports advanced analytics such as directional and motion detection, tampering alerts, and temperature-based event triggers.

What’s in the Box

  • Hanwha Vision HV-TNO-L4050T Thermal Camera

  • Mounting Accessories

  • Quick Installation Guide

Key Features

  • Resolution: 640 x 480 VGA thermal output

  • Lens: 35mm fixed focal lens with F1.0 aperture

  • Framerate: Max 8fps across all resolutions

  • Codec Support: H.265, H.264, MJPEG

  • Advanced Analytics: Motion detection, tampering, virtual line, directional detection, temperature detection, and more

  • Durability: IP66, IK10, and NEMA 4X rated for harsh environments

  • Power Options: PoE, 24VAC, 12VDC with low power consumption

  • Storage: Supports up to 256GB via micro SD/SDHC/SDXC

  • Custom Color Palettes: Whitehot, Blackhot, Rainbow, Sepia, Iron, and more

Technical Specifications

Specification Details
Imaging Device Uncooled micro bolometer
Pixel Size 17μm
NETD < 50mK
Field of View H: 17.2°, V: 13°, D: 22°
Min. Object Distance 36m
Audio In/Out Mic-in / Line-in and Line-out
Video Output CVBS, USB for setup
Network Interface RJ-45 (10/100BASE-T)
Edge Storage Micro SD/SDHC/SDXC up to 256GB
Dimensions/Weight Ø101.97 x 401.8mm / 3,124g
Operating Temperature -40°C to +60°C
Certifications IP66, IK10, NEMA 4X

Warranty

  • 24 Months Manufacturer Warranty

Brand Overview

Hanwha Vision is a leading global provider of intelligent video surveillance solutions, formerly known as Hanwha Techwin. Known for innovation and reliability, Hanwha’s products serve a broad range of sectors including transportation, public safety, and industrial applications.

Practical Use Scenarios

  • Perimeter Security for utilities or military zones

  • Industrial Monitoring of heat-emitting equipment or assets

  • High-Risk Facility Surveillance under challenging weather conditions

  • Smart Analytics Applications using AI-enhanced detection events

Datasheets and Downloads

Excellence for the Australian and New Zealand Market

This product meets rigorous Australian standards and is fully compatible with systems in the ANZ region. Supplied exclusively via authorized representatives, ensuring authenticity and compliance. Hanwha Vision’s warranty and technical support are handled directly, offering peace of mind to Australian and New Zealand installers and users.

FAQs – SKU HV-TNO-L4050T

Q1: Does the HV-TNO-L4050T support PoE?
A1: Yes, it supports IEEE 802.3af PoE, Class 3. 【HV-TNO-L4050T】

Q2: What environments is this camera rated for?
A2: It is IP66, IK10, and NEMA 4X certified, making it suitable for outdoor and industrial applications. 【HV-TNO-L4050T】

Q3: Can I use SD storage for video recording?
A3: Yes, it supports micro SD/SDHC/SDXC cards up to 256GB. 【HV-TNO-L4050T】

Q4: What analytics features does this camera offer?
A4: It includes motion detection, tampering, virtual line crossing, loitering, and directional detection. 【HV-TNO-L4050T】
