Hanwha Vision T-Series VGA Thermal Camera – 640x480 Thermal Surveillance with Intelligent Detection | HV-TNO-L4040T

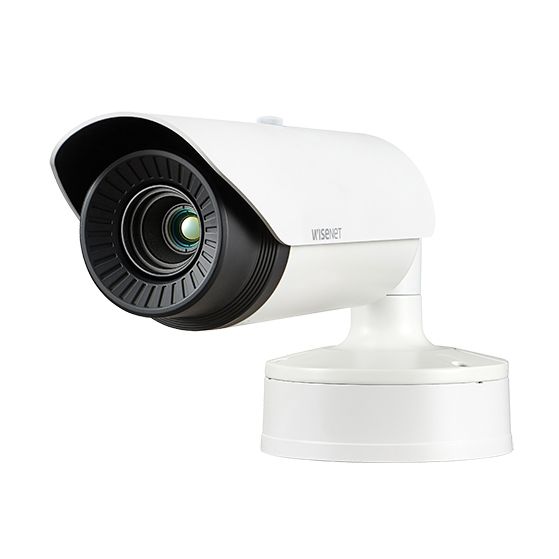

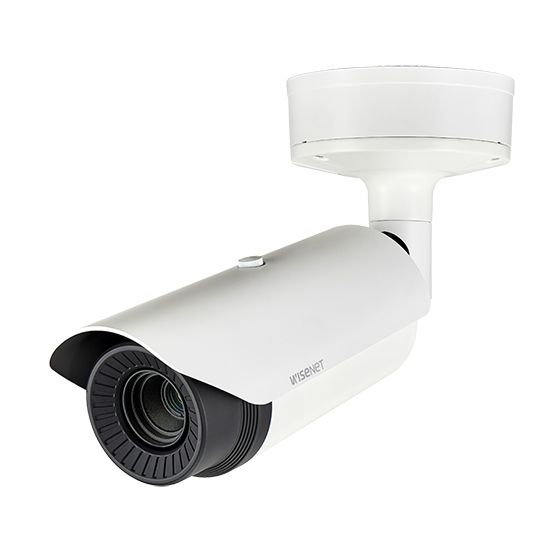

The Hanwha Vision HV-TNO-L4040T is a high-performance VGA thermal camera tailored for robust surveillance in demanding environments. Engineered with a 640x480 resolution thermal sensor and a 19mm fixed focal lens, it delivers precise thermal imaging even in total darkness or challenging weather conditions. This camera supports H.265, H.264, and MJPEG codecs, enabling efficient bandwidth and storage usage. Integrated intelligent analytics—such as motion, tampering, and temperature detection—enhance security automation and responsiveness.

Ideal for industrial, perimeter, or critical infrastructure monitoring, the HV-TNO-L4040T provides broad compatibility with existing systems and complies with IP66, IK10, and NEMA 4X standards for durability and weather resistance.

What's Included

• Hanwha Vision HV-TNO-L4040T Thermal Camera

• Mounting accessories

• Installation manual

Main Features

• VGA thermal resolution: 640 x 480

• Built-in 19mm fixed lens, F1.0 aperture

• Max. 8fps across all supported codecs (H.265/H.264/MJPEG)

• Intelligent video analytics including motion, audio, loitering, tampering, and shock detection

• Audio In/Out and CVBS/USB video outputs

• Advanced data security and access control protocols

• Edge storage up to 256GB via Micro SD/SDHC/SDXC

• Power: PoE (IEEE802.3af, Class 3), 24VAC, or 12VDC

• Weather and impact resistant (IP66, IK10, NEMA 4X)

• Operating Temp: -40°C to +60°C

Detailed Specifications

• Sensor Type: Uncooled micro bolometer

• NETD: <50mK; Pixel Size: 17μm

• FOV: H 32°, V 24.3°, D 39.2°

• Min Object Distance: 11m

• Digital Image Stabilization: Yes

• Video Outputs: CVBS & Micro USB

• Color Palettes: Whitehot, Blackhot, Rainbow, Sepia, Iron, Custom

• Smart Codec: WiseStreamII

• Network Protocols: IPv4/IPv6, HTTPS, SNMP, MQTT, ONVIF Profile S/G/T, etc.

• Power Consumption: Max. 10.5W (24VAC)

• Dimensions/Weight: Ø101.97 x 401.8mm / 3.12kg

Warranty Information

• 24 Months Manufacturer Warranty

Brand Description

Hanwha Vision is a global leader in next-generation video surveillance solutions, offering advanced AI-based analytics, thermal imaging, and end-to-end security technologies. Formerly Hanwha Techwin, the brand is known for delivering reliable and innovative security solutions worldwide.

SKU Information

• SKU: HV-TNO-L4040T

• Supplier SKU: TNO-L4040T

Practical Use Scenarios

• Industrial safety and heat signature detection

• Border and perimeter security in zero-light conditions

• Monitoring critical infrastructure in harsh environments

• Thermal surveillance for utilities and transportation hubs

Datasheet and Resources

• Download Full Datasheet – HV-TNO-L4040T (PDF)

Excellence for the Australian and New Zealand Market

This product is optimized for deployment across Australia and New Zealand, featuring:

• Compliance with stringent ANZ environmental standards

• Certified to meet IP66, IK10, and NEMA4X protection for local conditions

• Supplied exclusively through authorized Hanwha Vision channels in ANZ

• Manufacturer-backed warranty handled directly with Hanwha Vision for reliable support

FAQs – HV-TNO-L4040T

Q1: Can the HV-TNO-L4040T operate in extremely cold environments?
A1: Yes, the HV-TNO-L4040T is built to operate in temperatures ranging from -40°C to +60°C. (Product Code: HV-TNO-L4040T)

Q2: Does the camera offer intelligent analytics for perimeter security?
A2: Absolutely, it includes directional detection, motion, tampering, virtual line, and temperature anomaly detection. (Product Code: HV-TNO-L4040T)

Q3: How is power supplied to the HV-TNO-L4040T?
A3: It supports Power over Ethernet (PoE), as well as 24VAC and 12VDC options. (Product Code: HV-TNO-L4040T)

Q4: What video codecs are supported?
A4: The camera supports H.265, H.264, and MJPEG for flexible streaming. (Product Code: HV-TNO-L4040T)

Q5: Is the camera protected against vandalism and environmental damage?
A5: Yes, with IP66, IK10, and NEMA4X certifications, it's ideal for demanding environments. (Product Code: HV-TNO-L4040T)
