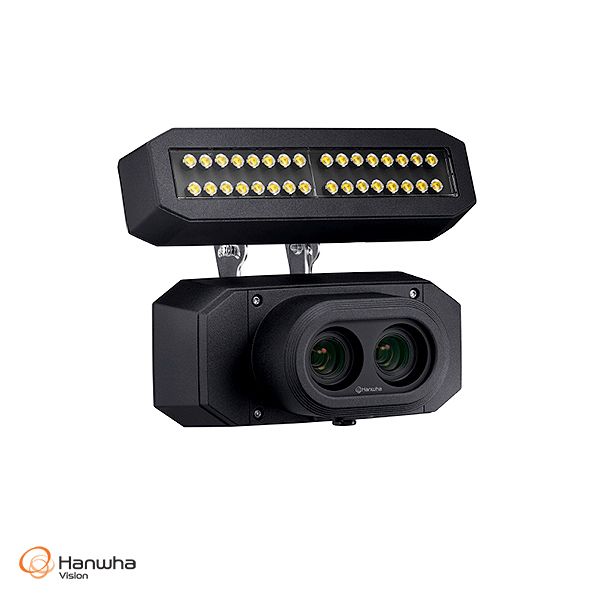

Hanwha Vision T-Series Dual Sensor BCR 4K Camera – 16mm Fixed Lens – AI Barcode Recognition

Optimize logistics and parcel management with the Hanwha Vision TNS-9040IBC, a dual-sensor BCR (Barcode Reader) camera engineered for high-performance barcode scanning and video monitoring in fast-paced conveyor belt environments. Equipped with MONO and COLOR 4K global shutter sensors, this camera offers advanced barcode recognition using AI-based detection, even at conveyor speeds up to 2m/s.

This robust camera is ideal for logistics automation, enabling accurate tracking and enhanced operational efficiency. With reinforced durability and industrial-grade certifications, it withstands demanding environments while delivering high-resolution imaging and secure data communication.

What's in the Box

• Hanwha Vision TNS-9040IBC Camera Unit

• Integrated LED Illumination Module

• M12 8-pin Ethernet Connector

• Installation Bracket

• User Manual

Main Features

• Dual Global Sensor: Mono + Color 4K (1" CMOS sensors)

• AI-based barcode location tracking

• 16mm fixed lens with ultra-wide FoV

• Barcode support: Code128, Code93, Codabar, ITF, UPC, EAN

• High-speed conveyor tracking up to 2m/s

• High-durability construction: IP66, IP67, IK10, NEMA TS-2 compliant

• White LED illumination (32 LEDs)

• Multiple streaming resolutions and protocols

• Secure boot, firmware encryption, and SRTP support

• Power: 24VDC, Max 28.6W

Specifications

• Resolution: Mono & Color up to 4096×2160 @ 20fps

• Lens: 16mm, Manual Focus, F8.0

• Field of View: H47.5° / V26.9° / D53.2°

• Connectivity: M12 8-pin Ethernet

• Video Compression: H.264, H.265, MJPEG

• Operating Temp: -40°C to +55°C

• Ingress Rating: IP66, IP67

• Shock Resistance: EN 60068-2-27, NEMA TS-2

• Material: Black Aluminum

• Weight: 3.44kg (with bracket)

Warranty Information

Covered by a 24-month manufacturer’s warranty from Hanwha Vision.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in advanced video surveillance solutions. Known for cutting-edge AI technologies and robust, industrial-grade products, Hanwha Vision delivers trusted security and automation systems tailored for modern enterprise needs.

Practical Use Scenarios

• Automated logistics centers

• Parcel tracking in courier warehouses

• Industrial conveyor-based barcode scanning

• Smart warehouse management

• Compliance-focused delivery hubs

Datasheets & Downloads

• Download Full Datasheet (PDF)

Excellence for the Australian and New Zealand Market

This product meets stringent Australian and New Zealand standards, offering IP66/67 and IK10-rated durability for varied environments. All Hanwha Vision products are sourced through authorized regional distributors, ensuring full manufacturer warranty support. NDSS-related certifications and environmental ratings comply with regional regulatory expectations.

FAQs – SKU HV-TNS-9040IBC

Q1: What barcode types does HV-TNS-9040IBC support?
A1: The HV-TNS-9040IBC supports 1D codes including Code128, Code93, Codabar, Interleaved 2 of 5, UPC, and EAN.

Q2: What is the maximum speed of conveyor belts it can track barcodes on?
A2: It can track barcodes on conveyor belts moving at up to 2 meters per second (6.5 ft/s).

Q3: Is HV-TNS-9040IBC suitable for harsh environments?
A3: Yes, it's IP66/IP67 and IK10 rated, with certifications for shock and vibration resistance, making it ideal for industrial use.

Q4: Does it include integrated lighting?
A4: Yes, it includes 32 white LEDs to enhance barcode visibility in low-light conditions.

Q5: What power source is required for the HV-TNS-9040IBC?
A5: It operates on 24VDC with a maximum power consumption of 28.6W when LEDs are active.
