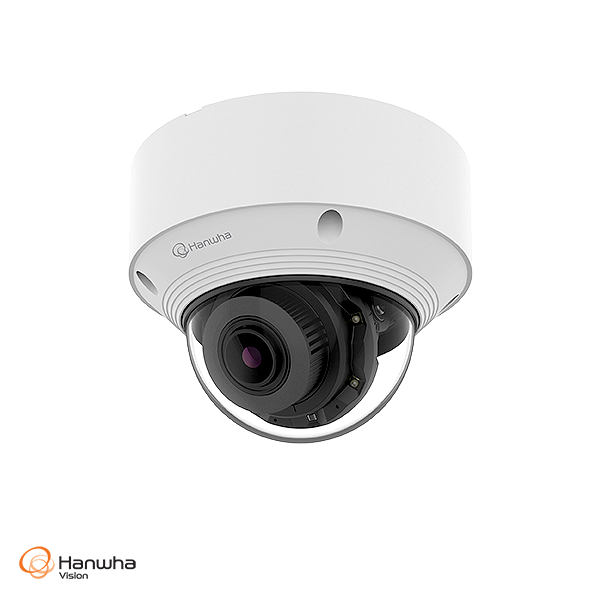

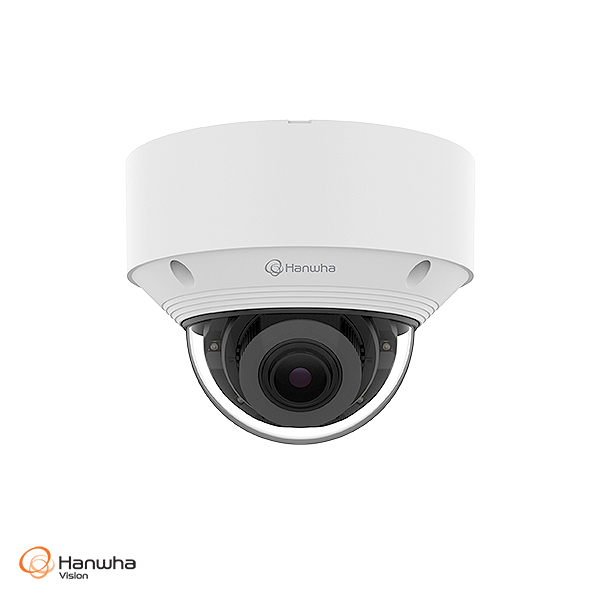

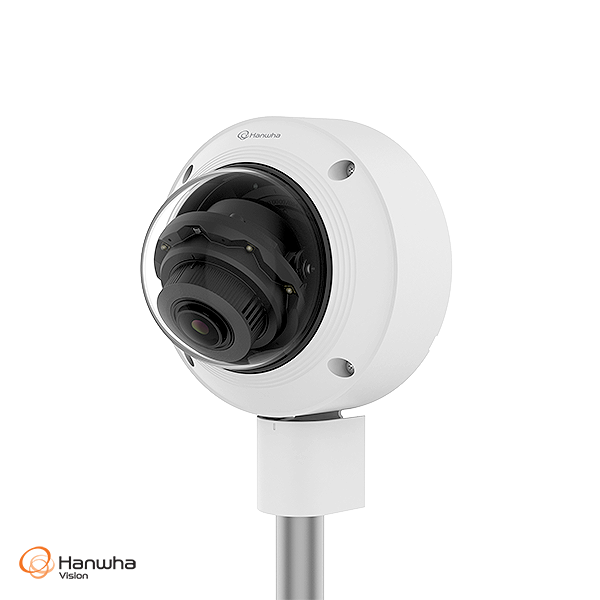

Hanwha Vision QNV-C9083R – Q-Core 8MP AI IR Vandal Dome AI Camera

The Hanwha Vision QNV-C9083R is an advanced AI-powered 8MP IR vandal dome camera designed for enhanced security and surveillance. Featuring real-time person and vehicle detection, the QNV-C9083R reduces false alarms by distinguishing actual security threats from environmental interferences like moving trees, shadows, or animals. With a rugged design, it is ideal for both indoor and outdoor applications requiring high-resolution imaging and smart analytics.

Key Features:

• AI-Powered Analytics: Detects and classifies people and vehicles for improved accuracy.

• High-Resolution Imaging: Max. 8MP resolution for superior clarity.

• Low-Light Performance: Color: 0.06Lux (F1.6, 1/30sec), BW: 0.006Lux (F1.6, 1/30sec, 30IRE).

• Motorized Varifocal Lens: 3.2~10.2mm (3.2X) for flexible field-of-view adjustments.

• Multiple Video Codecs: Supports H.265, H.264, and MJPEG compression.

• Day & Night Functionality: ICR technology with 120dB WDR for balanced exposure.

• Edge Storage Support: Micro SD/SDHC/SDXC slot (up to 256GB).

• Durable and Weatherproof: IP66 and IK10 rated for vandal and weather resistance.

• Power over Ethernet (PoE): Max 12.95W consumption.

• Multiple Streaming: Supports up to 5 video profiles for efficient bandwidth management.

Specifications:

• Imaging Sensor: 1/2.8" CMOS

• Resolution: 3840x2160 (8MP) and multiple lower resolution options

• Max. Frame Rate: 30fps @8MP (H.265, H.264, MJPEG)

• Lens: 3.2~10.2mm motorized varifocal

• Wide Dynamic Range: 120dB

• AI-Based Analytics: Real-time classification of people and vehicles

• IR Viewable Distance: 30m (98.42ft)

• Network Interface: RJ-45 (10/100BASE-T)

• Alarm & Event Management: Motion detection, tampering alerts, virtual line, and area intrusion detection

• Environmental Ratings: IP66, IK10

• Operating Temperature: -30°C to +55°C (-22°F to +131°F)

• Power Input: PoE (IEEE802.3af, Class 3)

• Power Consumption: Max. 12.95W

• Product Dimensions: ø140 x 110.2mm

• Weight: 875g

What’s Included:

• 1 x Hanwha Vision QNV-C9083R AI 8MP IR Vandal Dome Camera

• Mounting accessories (as per selected model)

• Quick installation guide

Warranty Information:
This product includes a manufacturer’s warranty. Contact Hanwha Vision or authorized resellers for specific warranty terms and conditions.

Datasheets

Manual
Data Sheet
Brochure

Brand Information:
Hanwha Vision, formerly known as Hanwha Techwin, is a global leader in security and surveillance solutions, offering innovative and high-performance cameras designed for various security applications.

Excellence for the Australian and New Zealand Market:

• Certified to meet Australian and New Zealand industry standards.

• Designed for commercial, industrial, and high-security applications.

• Sourced from authorized Hanwha Vision distributors to guarantee authenticity.

• Local warranty support available through Hanwha Vision’s official representatives.

Practical Use Scenarios:

• Retail Security: Detect potential threats with advanced AI-based monitoring.

• Traffic Surveillance: Monitor vehicle movement and classify vehicle types.

• Commercial Buildings: Enhance security with real-time person detection.

• Public Spaces: Identify and respond to security threats efficiently.

FAQs:
Q: How does AI help in reducing false alarms?
A: The Hanwha QNV-C9083R uses AI algorithms to differentiate between people, vehicles, and environmental factors, minimizing false alarms caused by moving trees, shadows, or animals.

Q: Is this camera suitable for outdoor use?
A: Yes, it is IP66 and IK10 rated, ensuring durability against weather and vandalism.

Q: What is the maximum resolution of this camera?
A: The camera supports up to 8MP resolution (3840x2160) for high-definition video quality.

Q: Does this camera support PoE?
A: Yes, it operates on Power over Ethernet (PoE) for easier installation and power management.

Q: Can I store footage directly on the camera?
A: Yes, it features edge storage with support for Micro SD/SDHC/SDXC up to 256GB.

For advanced security and AI-powered surveillance, the Hanwha Vision QNV-C9083R is the ideal choice for businesses, public spaces, and high-security environments.
