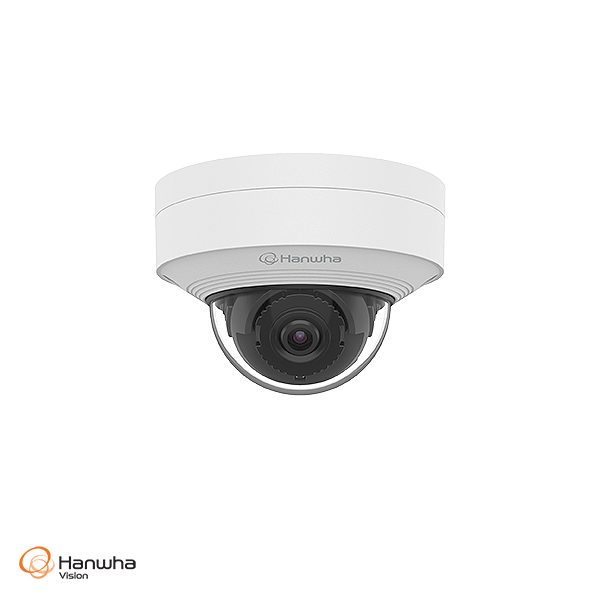

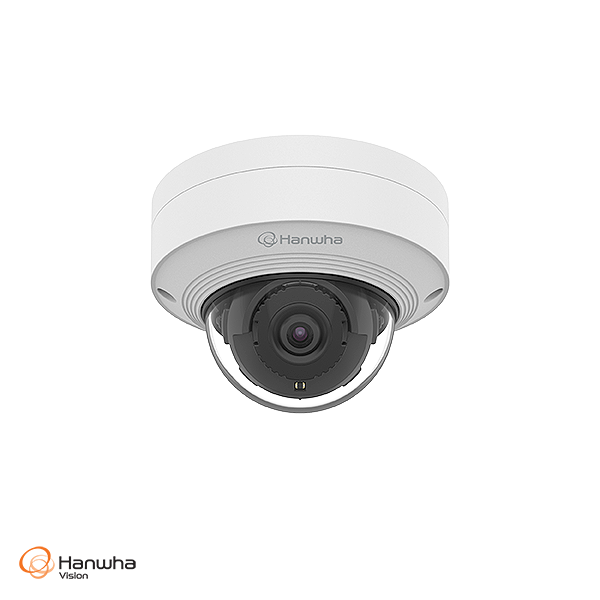

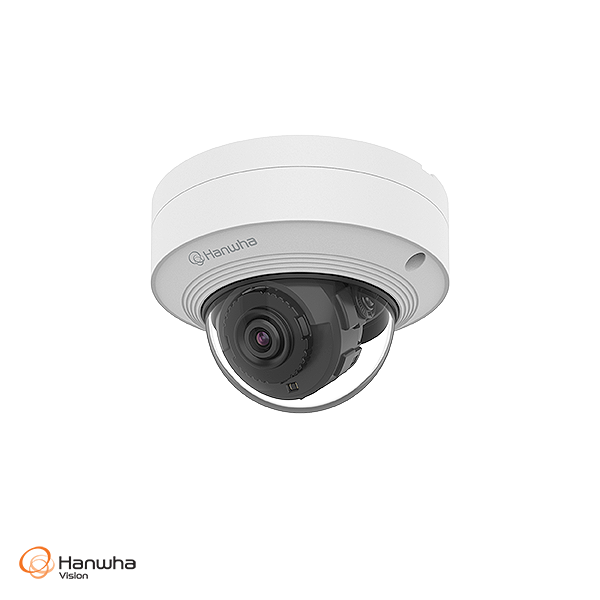

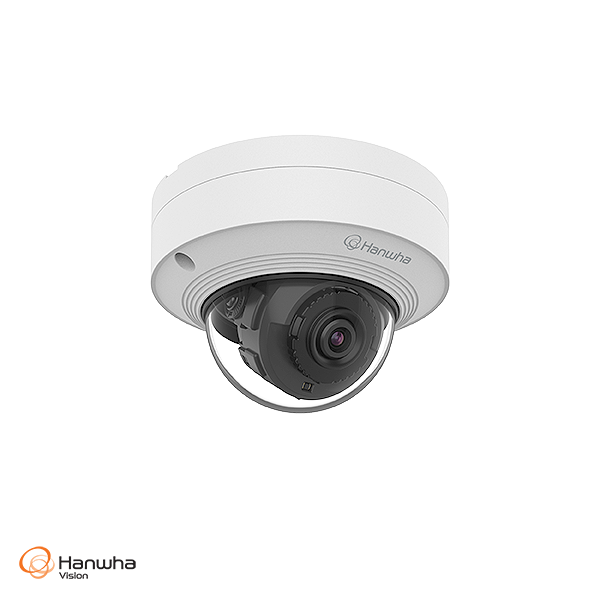

Hanwha Vision QNV-C8012 – Q-Core 5MP Vandal Dome AI Camera (No IR)

The Hanwha Vision QNV-C8012 is an advanced 5MP AI-powered vandal dome camera designed for enhanced security and surveillance. With AI-driven object classification, the camera effectively distinguishes between people and vehicles, minimizing false alarms caused by environmental factors such as moving trees, shadows, or animals. Its robust design makes it ideal for both indoor and outdoor applications, ensuring reliable performance in various conditions.

Key Features:

• AI-Powered Analytics: Real-time detection and classification of people and vehicles.

• High-Resolution Imaging: Max. 5MP resolution for detailed surveillance footage.

• Low-Light Performance: Color: 0.05Lux (F2.0, 1/30sec), BW: 0.005Lux (F2.0, 1/30sec, 30IRE).

• Fixed Focal Lens: 2.4mm for wide-angle coverage.

• Multiple Video Codecs: Supports H.265, H.264, and MJPEG compression.

• Day & Night Functionality: ICR technology with 120dB WDR for improved visibility.

• Edge Storage Support: Micro SD/SDHC/SDXC slot (up to 256GB).

• Rugged & Weatherproof: IP66, IK10, and NEMA4X certified for harsh environments.

• Power over Ethernet (PoE): Max 7W power consumption.

• Multiple Streaming: Supports up to 5 video profiles for flexible bandwidth management.

Specifications:

• Imaging Sensor: 1/2.8" CMOS

• Resolution: 2592x1944 (5MP) and multiple lower resolution options

• Max. Frame Rate: 30fps @5MP (H.265, H.264, MJPEG)

• Lens: 2.4mm fixed focal

• Wide Dynamic Range: 120dB

• AI-Based Analytics: Object detection, motion detection, virtual line, loitering detection

• IR Viewable Distance: Optimized for night-time surveillance

• Network Interface: RJ-45 (10/100BASE-T)

• Alarm & Event Management: Motion detection, tampering alerts, virtual area intrusion detection

• Environmental Ratings: IP66, IK10, NEMA4X

• Operating Temperature: -40°C to +55°C (-40°F to +131°F)

• Power Input: PoE (IEEE802.3af, Class 3)

• Power Consumption: Max. 7W

• Product Dimensions: ø110 x 77mm

• Weight: 522g

What’s Included:

• 1 x Hanwha Vision QNV-C8012 AI 5MP Vandal Dome Camera

• Mounting accessories (as per selected model)

• Quick installation guide

Warranty Information:
This product includes a manufacturer’s warranty. Contact Hanwha Vision or authorized resellers for specific warranty terms and conditions.

Brand Information:
Hanwha Vision, formerly known as Hanwha Techwin, is a global leader in security and surveillance solutions, offering innovative and high-performance cameras designed for various security applications.

Datasheets

Manual
Data Sheet
Brochure

Excellence for the Australian and New Zealand Market:

• Certified to meet Australian and New Zealand industry standards.

• Designed for commercial, industrial, and high-security applications.

• Sourced from authorized Hanwha Vision distributors to guarantee authenticity.

• Local warranty support available through Hanwha Vision’s official representatives.

Practical Use Scenarios:

• Retail Security: Monitor store entrances and customer activity efficiently.

• Office Surveillance: Ensure a secure work environment with real-time monitoring.

• Industrial Facilities: Durable and weather-resistant design ideal for factories.

• Public Areas: Enhance security with AI-based person and vehicle detection.

FAQs:
Q: How does AI help in reducing false alarms?
A: The Hanwha QNV-C8012 uses AI-powered object classification to differentiate between people, vehicles, and environmental factors, reducing unnecessary alerts.

Q: Is this camera suitable for outdoor use?
A: Yes, it is IP66, IK10, and NEMA4X rated, ensuring durability against harsh weather and vandalism.

Q: What is the maximum resolution of this camera?
A: The camera supports up to 5MP resolution (2592x1944) for high-definition surveillance.

Q: Does this camera support PoE?
A: Yes, it operates on Power over Ethernet (PoE) for easy installation and power management.

Q: Can I store footage directly on the camera?
A: Yes, it includes edge storage support for Micro SD/SDHC/SDXC up to 256GB.

For high-quality AI-powered security and surveillance, the Hanwha Vision QNV-C8012 is the perfect choice for businesses, public areas, and high-security environments.
