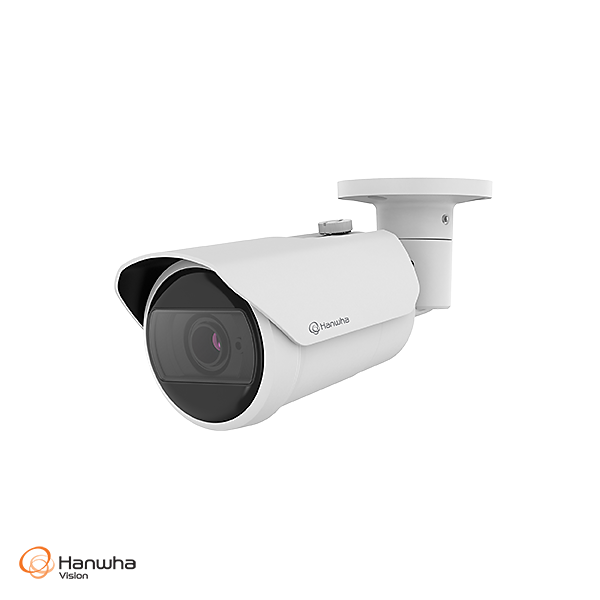

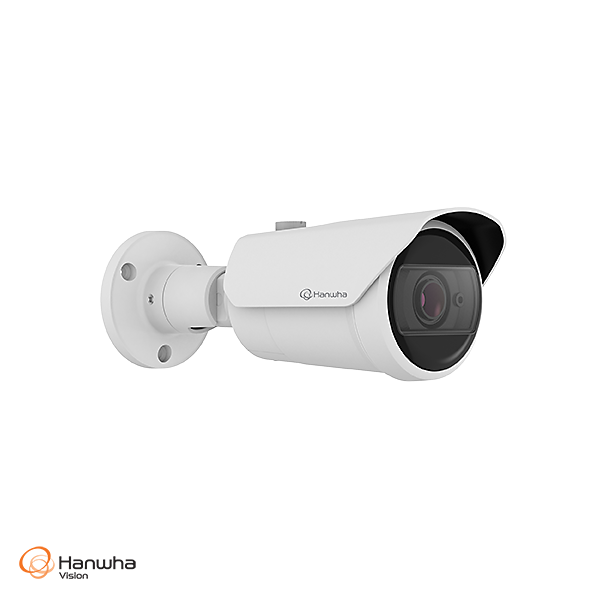

Hanwha Vision QNO-C8023R 5MP AI IR Bullet Security Camera Q Series (Q-Core) – Outdoor PoE, Smart Analytics, 30m Night Vision, IP66 IK10 Rated

The Hanwha Vision QNO-C8023R is a professional-grade 5MP AI-powered IR bullet camera engineered for high-performance surveillance in outdoor environments. With advanced AI analytics, excellent low-light capabilities, and robust design, this camera delivers enhanced monitoring and intelligent detection for a variety of applications.

What's in the Box

• Hanwha Vision QNO-C8023R 5MP AI IR Bullet Camera

• Mounting hardware

• Quick installation guide

• Micro-USB installation cable

Main Features

• High-Resolution Output: 5MP (2592x1944) resolution at up to 30fps ensures crisp and clear video.

• AI-Driven Analytics: Person and vehicle classification, color attribute detection, BestShot, motion analysis, virtual lines and areas.

• Low-Light Excellence: Delivers color at 0.05Lux and B/W at 0.005Lux; complete darkness visibility with IR (0Lux).

• 30m IR Range: Built-in IR LEDs provide up to 30 metres (98.42 feet) of night vision.

• Rugged Construction: Rated IP66 and IK10 for resistance to harsh weather and vandalism.

• Optimized Compression: Supports H.265, H.264, MJPEG, and AI-based WiseStream III for bandwidth efficiency.

• Dynamic Privacy Masking: AI-assisted masking with mosaic patterns.

• Edge Storage Support: MicroSD card slot supports up to 256GB.

• PoE Simplification: Power and data through a single Ethernet cable.

Detailed Specifications

• Image Sensor: 1/2.8" CMOS

• Lens: 4.0mm fixed, F1.6 aperture

• Field of View: H: 80°, V: 59°, D: 102°

• Minimum Focus Distance: 0.5m (1.64ft)

• WDR: 120dB wide dynamic range

• Noise Reduction: AI-based WiseNRⅡ and SSNRⅤ

• AI Analytics: Motion detection, object classification, queue management, heatmapping, people and vehicle counting

• Audio: Mic/line input, line output

• Network: RJ-45 (10/100BASE-T); supports multiple streaming and protocols including IPv4/IPv6, HTTPS, MQTT

• Video Compression: H.265, H.264, MJPEG

• Edge Storage: MicroSD/SDHC/SDXC up to 256GB

• Operating Temperature: -30°C to +55°C

• Power Supply: PoE (IEEE802.3af, Class 3), max 8.1W

• Dimensions: ø93.4 x 245.8mm

• Weight: 890g

Warranty Information

This product is covered by Hanwha Vision’s 3-year warranty, ensuring protection against manufacturing defects and failures under normal usage. All warranty claims are processed through official Hanwha Vision service channels.

Brand Description

Hanwha Vision, formerly known as Hanwha Techwin, is a globally recognized leader in video surveillance. The brand is known for combining reliability, innovative technology, and powerful AI analytics into its wide range of professional security products.

SKU

QNO-C8023R

Datasheet

Practical Use Scenarios

• Retail Security: Monitor store interiors and entrances, deter theft, and study customer behaviour.

• Parking Areas: Monitor vehicles, analyze traffic flow, and detect unauthorized access.

• Corporate Buildings: Secure entryways, track personnel movement, and ensure compliance.

• Public Infrastructure: Deploy in parks, transit stations, or urban zones for enhanced safety.

• Industrial Zones: Monitor production areas, perimeter breaches, and equipment safety.

Excellence for the Australian and New Zealand Market

The QNO-C8023R is certified to comply with RCM (AS/NZS CISPR 32 Class A), meeting stringent Australian and New Zealand regulatory standards. Built to perform in diverse climates, it is ideal for both metropolitan and remote deployments across ANZ. All units are sourced through official channels, and warranty claims are handled directly by Hanwha Vision, ensuring prompt and reliable support.

FAQs (QNO-C8023R)

Q: What is the maximum resolution of the QNO-C8023R?
A: The QNO-C8023R supports up to 5MP resolution (2592x1944) at 30fps.

Q: Does the QNO-C8023R support PoE installation?
A: Yes, the QNO-C8023R supports IEEE802.3af (Class 3) Power over Ethernet.

Q: How far can the IR LEDs on the QNO-C8023R illuminate?
A: The QNO-C8023R can illuminate up to 30 metres (98.42 feet) in complete darkness.

Q: What AI features are included in the QNO-C8023R?
A: The QNO-C8023R includes person/vehicle classification, motion detection, virtual lines/areas, and BestShot functions.

Q: Is the QNO-C8023R weatherproof and vandal-resistant?
A: Yes, it is IP66 weather-rated and IK10 certified for durability in tough outdoor conditions.

Q: Can I store footage locally on the QNO-C8023R?
A: Yes, the QNO-C8023R supports microSD cards up to 256GB for edge storage.

Q: What certifications does the QNO-C8023R meet for use in Australia and New Zealand?
A: The QNO-C8023R meets RCM certification requirements, including AS/NZS CISPR 32 Class A compliance.

Q: What is the power consumption of the QNO-C8023R?
A: The QNO-C8023R consumes a maximum of 8.1W via PoE.

Q: What are the environmental operating limits of the QNO-C8023R?
A: The QNO-C8023R operates in temperatures from -30°C to +55°C with full humidity tolerance.

Q: Does the QNO-C8023R support audio?
A: Yes, it supports selectable mic/line-in and line-out audio features.
