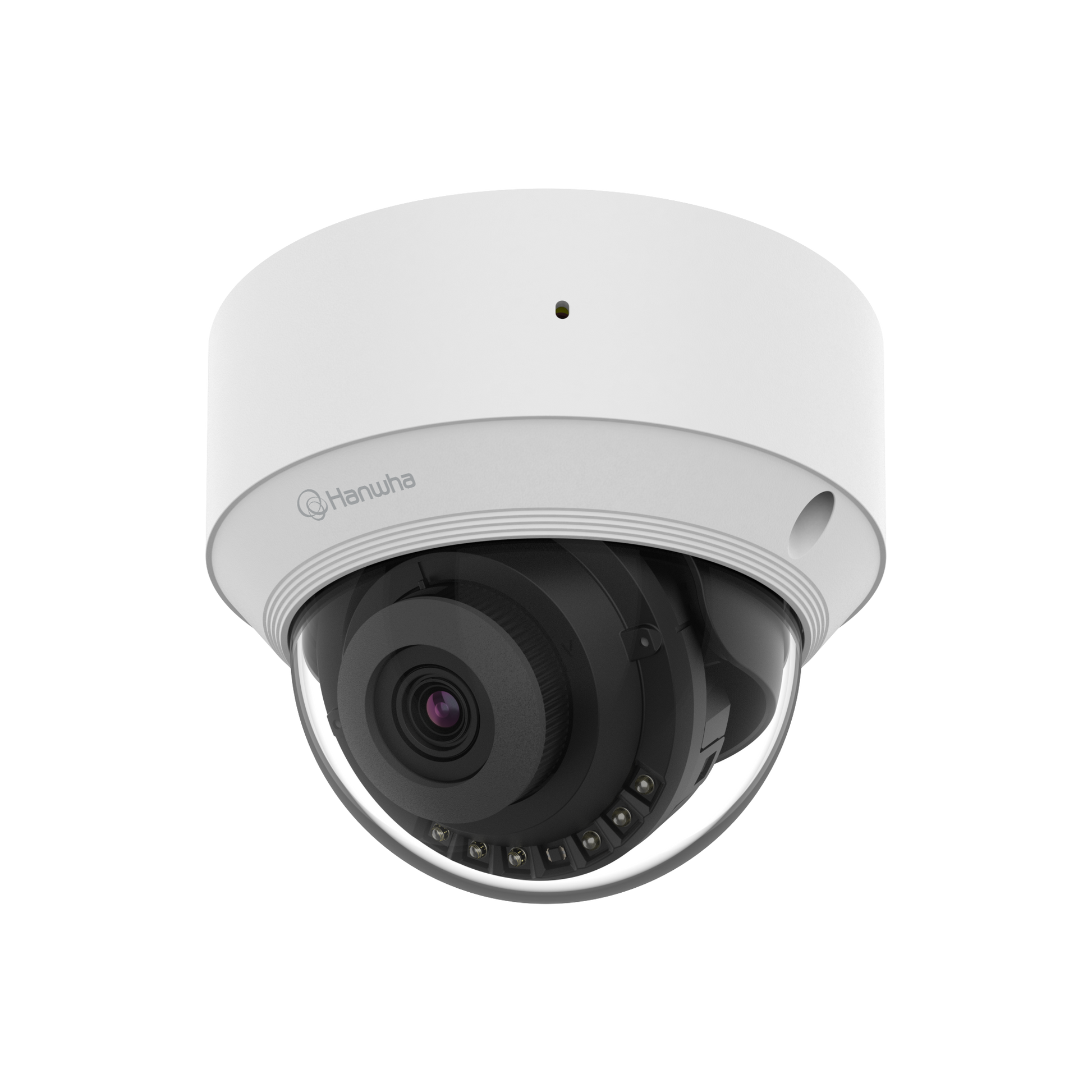

Hanwha Vision QND‑C8013R | 5 MP AI IR Dome Security Camera – Ultra‑Low‑Light, WDR, AI Analytics

Hanwha Vision QND‑C8013R | 5 MP AI IR Dome Security Camera – Ultra‑Low‑Light, WDR, AI Analytics

$477.67 AUD
$632.40 AUD $477.67 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Hanwha Vision QND‑C8013R is a high-performance 5 MP dome camera equipped with intelligent AI features, ideal for commercial and residential security setups. Offering crystal-clear imaging even in ultra‑low‑light and full darkness, this advanced dome camera features AI-powered analytics, dynamic privacy masking, and robust cybersecurity measures—perfect for modern security demands.

What’s Included in the Box

  • Hanwha Vision QND‑C8013R 5 MP AI IR Dome Camera

  • Quick Installation Guide

  • Mounting Screws and Anchors

  • PoE (802.3af) Power Injector Cable

  • Warranty and Safety Information

Key Features

  • 5 MP High‑Resolution Imaging: Sharp up to 2592 × 1944 at 30 fps.

  • Ultra‑Low‑Light & IR Performance: 0.05 Lux (F1.6) in colour, 0 Lux when IR active, with up to 25 m IR range.

  • AI‑Enhanced Analytics: NPU‑powered object detection (person, vehicle types), colour attribute recognition, BestShot capture, and dynamic privacy masking.

  • Wide Dynamic Range (WDR): 120 dB provides clear images in high‑contrast lighting.

  • Efficient Compression: H.265/H.264, MJPEG, and WiseStream III for optimized bandwidth use.

  • Smart Privacy Masking: Mosaic masking for moving people/vehicles, plus 32 static polygon zones.

  • Robust Cybersecurity: IEEE 802.1X, HTTPS/WSS, secure boot, encrypted firmware, SD‑card partition encryption.

  • Expandable Analytics: Business intelligence tools including people & vehicle counting, queue management, and heatmaps.

  • Reliable Construction: Hard‑coated dome bubble, rugged 110 × 90 mm housing under 350 g.

Detailed Specifications

Parameter Value
Imaging Sensor 1/2.8″ CMOS
Lens Focal Length 3.0 mm fixed (H: 100°, V: 73°, D: 129°)
Minimum Illumination 0.05 Lux (colour), 0.005 Lux (BW), 0 Lux (IR)
Max Frame Rate 30 fps @ 5 MP (H.265/H.264)
Day/Night Mode ICR auto-switch
Noise Reduction AI-driven WiseNR II + SSNR V
Pan/Tilt/Rotate Pan 0–355°, Tilt 0–75°, Rotate 0–355°
Network Interface RJ-45 (10/100 Mbps), IPv4/IPv6
Storage Options NAS and microSD (up to 256 GB)
Power PoE (IEEE 802.3af), max 8.1 W, typ. 4 W
Environmental Rating –10 °C to +45 °C, 0–95 % RH
Certifications FCC, CE/UKCA, RCM, UL, IEC 62471
Dimensions / Weight Ø110 × 90 mm, 317 g

Warranty Information

Backed by Hanwha Vision’s industry-standard manufacturer warranty. For detailed coverage and support options, please contact your authorised distributor or contact Hanwha Vision directly.

Brand Overview

Formerly Hanwha Techwin, Hanwha Vision is a renowned global leader in security and surveillance, offering robust and innovative solutions. Now rebranded, the company continues its legacy of delivering cutting-edge, reliable products with world-class support.

SKU

QND‑C8013R

Practical Use Scenarios

  • Retail Stores: Monitor entrances and checkout zones with enhanced person detection and privacy protection.

  • Parking Facilities: Track vehicle types, count traffic, and detect loitering.

  • Office Buildings: Clear, detailed monitoring in both day and night with dynamic masking for privacy zones.

  • Public Spaces: AI analytics enable queue tracking, heatmapping, and crowd counting.

Datasheets / Downloads

Excellence for the Australian and New Zealand Market

This camera delivers on Australian/New Zealand standards with strong EMC and safety compliance. NDSS-approved for network security use. All units are imported directly via authorised distributors, ensuring genuine products and full manufacturer warranty support. Technical service is handled directly by Hanwha Vision or certified partners within the region.

FAQs

Q: Is QND‑C8013R compatible with WiseStream III compression?
A: Yes. The QND‑C8013R supports WiseStream III (AI-enhanced codec) for efficient bandwidth usage and enhanced video quality.

Q: What is the minimum illumination required for QND‑C8013R?
A: The camera operates in colour with 0.05 Lux (F1.6), drops to 0.005 Lux in B/W, and reaches total darkness when IR is enabled.

Q: Does QND‑C8013R support microSD storage?
A: Yes. It features a single slot for microSD/SDHC/SDXC cards up to 256 GB for edge recording.

Q: Does QND‑C8013R meet Australian EMC standards?
A: Yes. The QND‑C8013R carries RCM EMC certification per AS/NZS CISPR 32 Class A.

Q: Can QND‑C8013R detect vehicles and people separately?
A: Absolutely – AI analytics differentiate between person and vehicle (car/truck/bus/bike), plus colour and attribute recognition capabilities.
