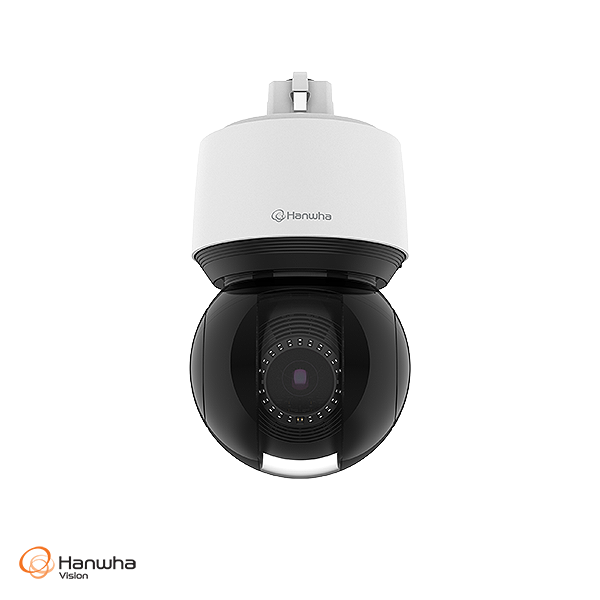

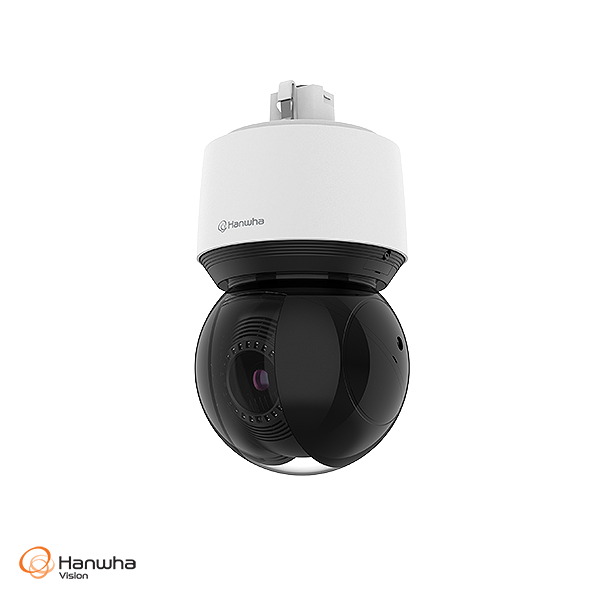

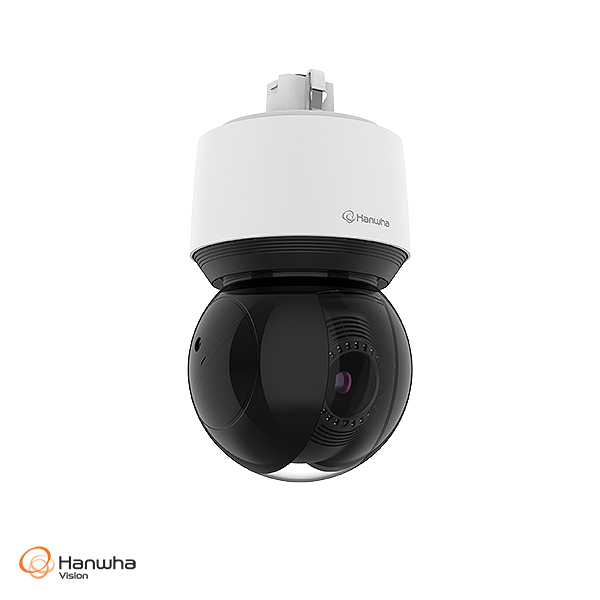

Hanwha Vision Q-Series 2MP IR PTZ Camera | HV-QNP-6320R

The Hanwha Vision Q-Series HV-QNP-6320R is a powerful yet compact PTZ solution, ideal for versatile security deployments in commercial, retail, and urban environments. Designed to be lighter and more compact than conventional PTZ cameras, it significantly reduces installation time and mechanical load, making it perfect for both retrofit and new installations.

Equipped with a high-performance 2MP CMOS sensor, the HV-QNP-6320R captures crisp Full HD video with a remarkable 32x optical zoom, delivering detailed imagery even at great distances. Combined with digital zoom, it offers up to an incredible 1024x total zoom capability.

The integrated IR LEDs provide clear night vision up to 100 meters (328.08 ft), ensuring robust monitoring even in complete darkness. Its advanced imaging features include True WDR (120dB) for high-contrast scenes and Digital Image Stabilization (DIS) with a built-in gyro sensor to reduce camera shake from wind or vibrations.

Supporting modern compression formats like H.265 and H.264, along with WiseStream II technology, the camera reduces bandwidth and storage requirements while preserving excellent image quality. Intelligent analytics—including motion detection, tampering, virtual line crossing, and directional detection—empower proactive monitoring and quick incident response.

Built for harsh environments, the HV-QNP-6320R meets IP66, IK10, and NEMA 4X standards, ensuring reliable operation against dust, water, vandalism, and extreme weather. With support for auto-tracking and up to 300 presets, it’s a versatile solution for wide-area surveillance.

What's Included in the Box

• Hanwha Vision HV-QNP-6320R 2MP IR PTZ Camera

• Mounting hardware

• Quick installation guide

• Warranty documentation

Main Features

• Full HD 2MP (1920 x 1080) resolution for sharp video detail

• 32x optical zoom (total up to 1024x with digital zoom)

• Exceptional low-light sensitivity: Color down to 0.05 Lux, 0 Lux with IR

• IR illumination range up to 100 meters (328.08 ft)

• True WDR (120dB) for balanced images in high-contrast lighting

• Digital Image Stabilization (DIS) with built-in gyro sensor

• Intelligent analytics: motion detection, tampering, virtual area, and line detection

• Multi-codec support: H.265, H.264, MJPEG

• WiseStream II for efficient bandwidth usage

• IP66, IK10, and NEMA 4X certified for harsh environments

• NDAA compliant for sensitive deployments

• PoE+ (IEEE802.3at) support for simplified power and connectivity

• Auto tracking and up to 300 preset positions

Detailed Specifications

Warranty Information

The Hanwha Vision HV-QNP-6320R is covered by a 3-year manufacturer’s warranty, ensuring dependable support and peace of mind for your security investment.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a trusted global provider of innovative video surveillance solutions. Combining advanced imaging technologies with powerful analytics and robust cybersecurity, Hanwha Vision products protect critical infrastructure, commercial properties, and public spaces around the world. As an industry leader, Hanwha Vision delivers reliability, performance, and value for professional security applications.

SKU

HV-QNP-6320R

Practical Use Scenarios

• City Surveillance: Monitor intersections, streets, and public spaces with high zoom and auto-tracking.

• Retail & Commercial: Secure large retail areas, parking lots, and building perimeters with powerful PTZ coverage.

• Transportation Hubs: Oversee terminals, platforms, and concourses with fast, precise PTZ movement.

• Critical Infrastructure: Protect facilities like power plants and water treatment centers with robust, weather-resistant cameras.

• Industrial Sites: Monitor wide operational zones and distant perimeters in harsh conditions.

• Airports & Ports: Track movement of vehicles, vessels, and personnel across expansive facilities.

Datasheets / Downloadable Resources

Download the Official Datasheet

Excellence for the Australian and New Zealand Market

The Hanwha Vision HV-QNP-6320R fully complies with RCM AS/NZS standards, ensuring seamless integration into professional surveillance systems in Australia and New Zealand. Certified to IP66, IK10, and NEMA 4X standards, it is built to withstand extreme weather, vandalism, and harsh environmental conditions, making it ideal for diverse ANZ applications.

Hanwha Vision products supplied for the ANZ market are sourced through official distribution channels, ensuring genuine products and comprehensive warranty support. Local technical assistance and warranty handling provide peace of mind for Australian and New Zealand customers deploying the HV-QNP-6320R in critical security projects.

This camera’s blend of powerful zoom, advanced analytics, and rugged design makes it perfectly suited for high-security installations across the ANZ region.

FAQs

Q1: What is the IR distance of the Hanwha Vision HV-QNP-6320R? (SKU: HV-QNP-6320R)
The HV-QNP-6320R provides infrared illumination up to 100 meters (328.08 feet), delivering clear images even in complete darkness.

Q2: Is the Hanwha Vision HV-QNP-6320R NDAA compliant? (SKU: HV-QNP-6320R)
Yes, the HV-QNP-6320R is fully NDAA compliant, making it suitable for government and sensitive infrastructure projects.

Q3: How fast does the PTZ mechanism operate on the Hanwha Vision HV-QNP-6320R? (SKU: HV-QNP-6320R)
It offers preset pan speeds up to 700°/sec and tilt speeds up to 300°/sec, ensuring rapid repositioning for incident response.

Q4: Does the Hanwha Vision HV-QNP-6320R support edge recording? (SKU: HV-QNP-6320R)
Yes, it supports microSD/SDHC/SDXC cards up to 256GB for local storage of recordings.

Q5: Can the Hanwha Vision HV-QNP-6320R withstand outdoor environments? (SKU: HV-QNP-6320R)
Absolutely. With IP66, IK10, and NEMA 4X certifications, it’s built for harsh outdoor installations, including extreme temperatures and weather conditions.
