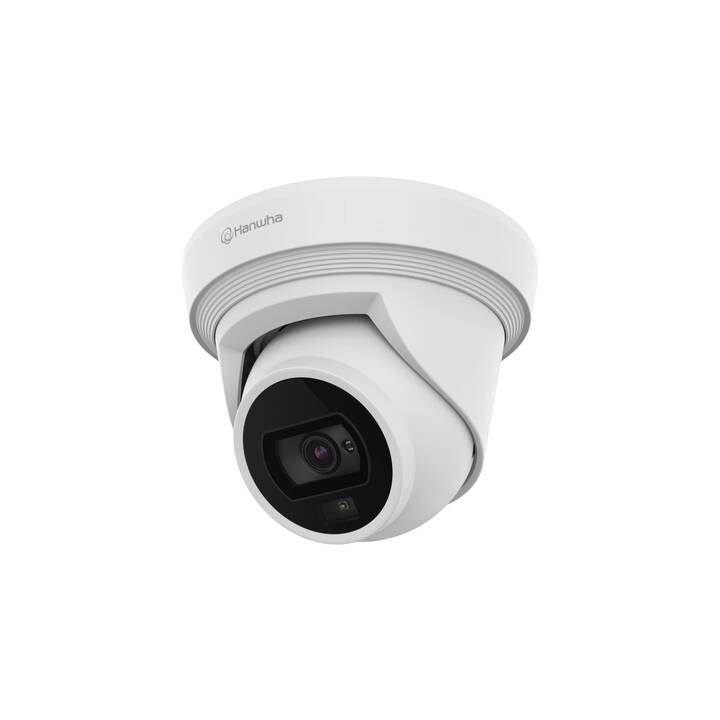

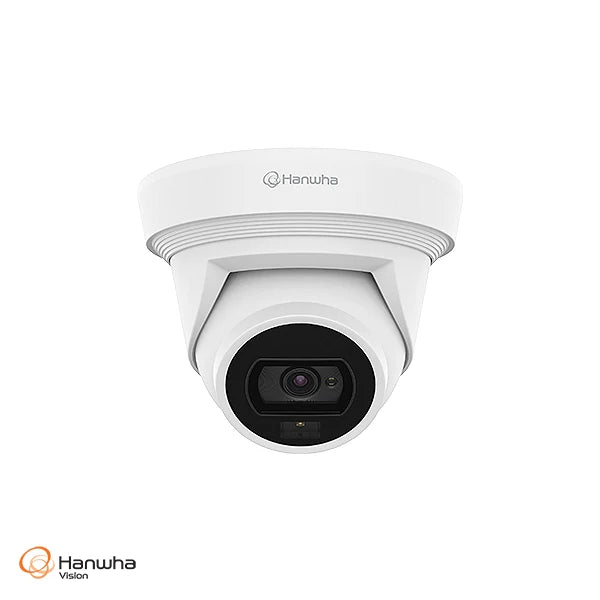

Hanwha Vision Q-Core 8MP AI FlatEye Camera (HV-QNE-C9013RL) Q series

Illuminate your surveillance like never before with the Hanwha Vision Q-Core 8MP AI FlatEye Camera. Designed for superior low-light performance, this advanced dual light camera integrates both warm white LEDs and infrared (IR) lights, offering exceptional clarity and detail in various lighting conditions.

Key Features:

• High Resolution: Capture detailed footage with a maximum resolution of 8 Megapixels (3840x2160).
• Fixed Lens: 3.0mm fixed lens ensures a wide field of view for comprehensive monitoring.
• Low-Light Performance:
  • Color Mode: 0.034Lux (F1.6, 1/30 sec)
  • Black & White Mode: 0.0034Lux (F1.6, 1/30 sec, 30IRE)
  • IR LED On: 0Lux for complete darkness visibility.
• Frame Rate: Max 30fps at 8MP for smooth and fluid video playback.
• Advanced Codecs: Supports H.265, H.264, MJPEG, and WiseStreamⅢ (AI-based) for efficient compression and high-quality streaming.
• Day & Night Functionality: Equipped with WDR (120dB) and WiseNRⅡ (AI-based) to ensure clear images in challenging lighting conditions.
• AI Capabilities: Features object classification, attribute detection, and intelligent analysis for enhanced security.
• Storage: Built-in Micro SD/SDHC/SDXC memory slot supports up to 256GB for local video storage.
• Enhanced Viewing: White LED and IR illumination offer a viewable length of up to 30 meters (98.42 feet) for both LED and IR modes.
• Durability: IP66/IP67 and IK10 ratings provide superior resistance to weather and physical impact.
• Connectivity: ONVIF Profile S/G/T/M, SUNAPI (HTTP API), and Power over Ethernet (PoE) for seamless integration into your existing systems.
• Special Features: Hallway view option and advanced WiseStreamⅢ (AI-based) technology for optimized performance.

Upgrade to the Hanwha Vision Q-Core 8MP AI FlatEye Camera for a powerful, all-encompassing surveillance solution that excels in low-light environments and delivers superior image quality and reliability.

Specifications:

Video:

• Imaging Device: 1/2.8" CMOS
• Resolution Options:
  • Max: 3840x2160
  • Other: 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Frame Rate:
  • H.265/H.264: Max. 30fps/25fps (60Hz/50Hz)
  • MJPEG: Max. 30fps (@8MP Max. 5fps)
• Min. Illumination:
  • Color: 0.034Lux (F1.6, 1/30sec)
  • Black & White: 0.0034Lux (F1.6, 1/30sec, 30IRE), 0Lux (IR LED on)

Lens:

• Focal Length: 3.0mm fixed focal
• Max. Aperture Ratio: F1.6
• Angular Field of View:
  • Horizontal: 108°
  • Vertical: 59°
  • Diagonal: 127°
• Min. Object Distance: 0.5m (1.64ft)
• Focus Control: Fixed
• Lens Type: Fixed IRIS
• Mount Type: M12

Pan/Tilt/Rotate:

• Range:
  • Pan: 0°~350°
  • Tilt: 0°~75°
  • Rotate: 0°~360°

Operational Features:

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto (ICR)
• Backlight Compensation: BLC, WDR, SSDR
• Wide Dynamic Range: 120dB
• Digital Noise Reduction: SSNRⅤ, WiseNRⅡ (AI-based)
• Motion Detection: 8 zones, 8-point Polygonal zones
• Privacy Masking: 32 zones, 4-point quadrangle zones
• Gain Control: Low / Middle / High
• White Balance: ATW / AWC / Manual / Indoor / Outdoor
• LDC Support: Yes
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (1/5~1/12,000 sec)
• Video Rotation: Flip, Mirror, Hallway view (90°/270°)

Analytics:

• Classified Object Types: Person/Vehicle (car/bus/truck/motorcycle/bicycle)
• Attributes: Person, Vehicle (car/bus/truck/motorcycle/bicycle)
• DetectionShot: Yes
• AI-Based Events: Motion detection, Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
• Additional Events: Defocus detection, Tampering, Virtual area (Appear/Disappear)
• Business Intelligence: People counting, Vehicle counting, Queue management, Heatmap

Alarm Functions:

• Triggers: Analytics, Network disconnect
• Events:
  • File Upload: Image via e-mail/FTP
  • Notification: E-mail
  • Recording: SD/SDHC/SDXC or NAS recording at event triggers
  • Handover: PTZ preset, Send message via HTTP/HTTPS/TCP
  • Light Alarm: Yes

Light:

• Type: Dual light (White warm light, IR)
• IR Viewable Length:
  • White LED: 30m (98.42ft)
  • IR: 30m (98.42ft)
• IR Wavelength: Long-life 850 nm IR LED

Network:

• Ethernet: RJ-45 (10/100BASE-T)
• Video Compression: H.265/H.264 (Main/High), MJPEG
• Smart Codec: Manual (5 areas), WiseStreamⅢ (AI-based)
• Bitrate Control:
  • H.264/H.265: CBR or VBR
  • MJPEG: VBR
• Streaming: Unicast (20 users) / Multicast
• Multiple Streaming: Up to 5 profiles
• Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3, ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT
• API: ONVIF Profile S/G/T/M, SUNAPI (HTTP API)

Security:

• OS / Firmware Protection: Secure boot, Signed firmware, Firmware encryption
• User Authentication: Digest Authentication, Prevent brute-force attack
• Network Authentication: 802.1X Authentication (EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication: HTTPS, SRTP, WSS (WebSocket secure)
• Access Control: Based on IP address
• Data Protection: Authentication information encryption, ZIP compression encryption
• Audit: User Access/System/Event log management
• Device ID: Device Certificate (Hanwha Private Root CA)
• Secure Storage: SD card partition encryption

General:

• Webpage Languages: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 1 slot (up to 256GB)
• Memory: 2GB RAM, 1GB Flash

Environmental & Electrical:

• Operating Temperature / Humidity: -40°C to +60°C (-40°F to +140°F) / 0~95% RH (Startup above -30°C)
• Storage Temperature / Humidity: -50°C to +60°C (-58°F to +140°F) / 0~95% RH
• Certifications: IP66/IP67, IK10
• Input Voltage: PoE (IEEE802.3af, Class 3)
• Power Consumption:
  • Max: 10.0W
  • Typical: 4.5W

Mechanical:

• Color / Material: White / Aluminum
• RAL Code: RAL9003
• Dimensions / Weight: Ø140.0 x 99.6mm (Ø5.51 x 3.92"), 790g (1.74 lb)
• Mounting Options:
  • Hanging Mount (Dome): SBP-140HMW
  • Backbox: SBV-140BW
  • Ceiling Mount (Assy): SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS
  • Wall Mount: SBP-140WMW, SBP-300WMW/WMW1, SBP-390WMW2
  • Pole Mount: SBD-140PMW, SBP-300PMW2, SBD-140PMB
  • Parapet Mount: SBP-300LMW, SBP-156LMW1
  • Corner Mount: SBP-300KMW1, SBD-140KMB
  • Tilt Mount: SBV-140TMW
  • Cabinet: SBP-300NBW

Certifications & Standards:

• EMC:
  • FCC 47 CFR 15 Subpart B Class A
  • ICES-3(A)/NMB-3(A)
  • CE/UKCA (EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3)
  • VCCI CISPR 32 Class A
  • RCM AS/NZS CISPR 32 Class A
• Safety:
  • UL 62368-1, CAN/CSA C22.2 NO. 62368-1
  • IEC/EN 62471
• Environment: IEC/EN 63000, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10
• DORI (EN62676-4 standard):
  • Detect (25PPM/8PPF): 55.8m (183.07ft)
  • Observe (63PPM/19PP
