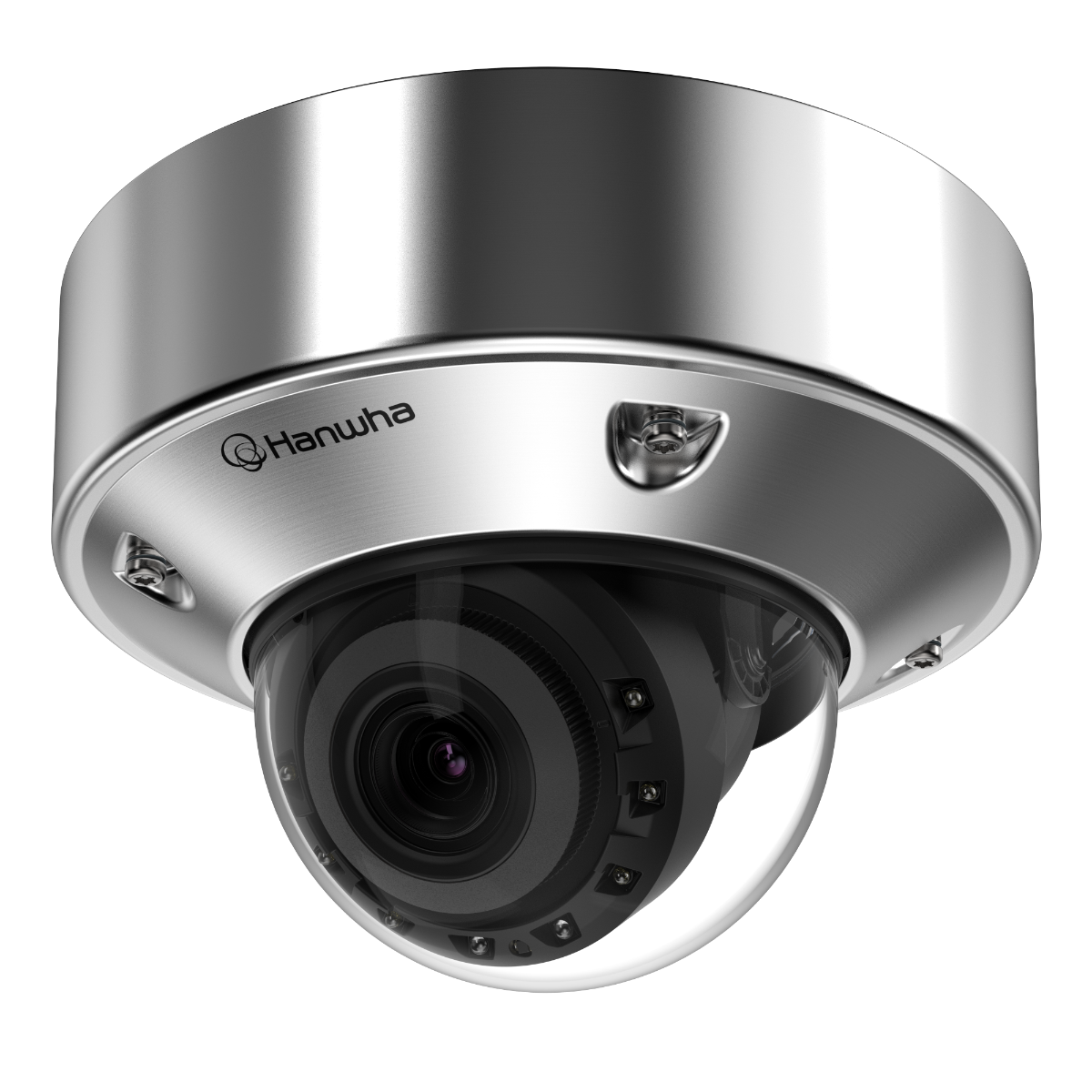

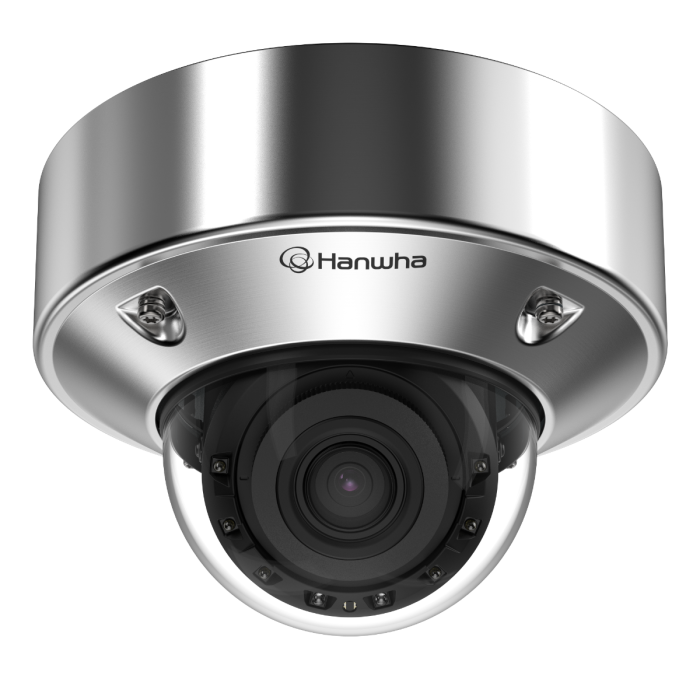

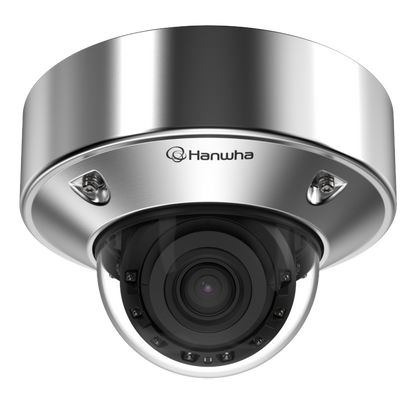

Hanwha Vision HV-XNV-A9084RS 8MP Stainless Steel AI IR Vandal Dome Camera with Wisenet 9 AI, 4.4–9.3mm Varifocal Lens, 50m IR, IP68, IK11 & NSF/ANSI 169

The Hanwha Vision HV-XNV-A9084RS is an advanced 8MP stainless steel AI IR vandal dome camera built for high-performance surveillance in demanding environments. Featuring the Wisenet 9 AI-powered SoC, a 4.4–9.3mm motorised varifocal lens, 50m WiseIR night vision, intelligent video analytics, dynamic privacy masking and rugged environmental protection, it is ideal for commercial, industrial, marine, food processing and critical security applications.

At the core of the second-generation Hanwha Vision X Series, the HV-XNV-A9084RS uses Dual NPU architecture to separate AI image enhancement and analytics processing, helping deliver reliable video quality and responsive AI detection without overloading a single processing resource.

Its stainless steel housing and nylon dome are designed for extreme conditions, with official ratings including IP66, IP67, IP68, IP6K9K, NEMA 4X, IK11 and NSF/ANSI Standard 169, making the camera suitable for washdown areas, harsh outdoor environments and food or beverage facilities.

What’s Included in the Box

• 1 x Hanwha Vision HV-XNV-A9084RS / XNV-A9084RS camera
• Manufacturer-supplied installation accessories
• Manufacturer documentation / quick installation materials
• Standard manufacturer packaging

Main Features

• 8MP image resolution up to 3840 x 2160
• Wisenet 9 AI-powered SoC with Dual NPU support
• 4.4–9.3mm motorised varifocal lens
• 50m WiseIR infrared viewing distance
• AI object detection for person, face, vehicle and licence plate
• Intelligent video analytics including virtual line, virtual area, motion, slip and fall, face mask and social distancing detection
• Business intelligence features including people counting, vehicle counting, crowd counting, queue management and heatmap
• BestShot thumbnail support and AI attribute extraction
• Dynamic Privacy Masking
• 120dB WDR, WiseNR II and WiseStream AI-based bandwidth optimisation
• Stainless steel STS316L body with nylon dome
• IP66/IP67/IP68/IP6K9K, NEMA 4X, IK11 and NSF/ANSI 169 rated
• PoE power with WisePower monitoring and Eco mode
• Edge storage via microSD/SDHC/SDXC up to 1TB

Detailed Specifications

Camera Type: 8MP Stainless Steel AI IR Vandal Dome Camera
Model: XNV-A9084RS
SKU: HV-XNV-A9084RS
Image Sensor: 1/1.8" CMOS
Maximum Resolution: 3840 x 2160
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: H.265/H.264 up to 30fps/25fps at 60Hz/50Hz
Lens: 4.4–9.3mm motorised varifocal
Optical Zoom: 2.1x
Field of View: Horizontal 113°–47°, vertical 58°–26°, diagonal 138°–54°
IR Distance: WiseIR up to 50m
Minimum Illumination: Colour 0.04 lux, B/W 0.004 lux
WDR: 120dB
Day/Night: Auto ICR
Image Enhancement: WiseNR II, SSNR V, defog, digital image stabilisation
AI Object Classification: Person, face, vehicle, licence plate
AI Attributes: Clothing colour, gender, bag, vehicle type, vehicle colour, age, face mask and glasses
Analytics: Object detection, virtual line, motion detection, face mask detection, social distancing detection, slip and fall detection, virtual area, defocus, tampering, audio and shock detection
Business Intelligence: People counting, vehicle counting, crowd counting, queue management and heatmap
Network Interface: RJ-45 10/100BASE-T
API Support: ONVIF S/G/T/M, SUNAPI and Hanwha Vision Open Platform
Security: Secure boot, signed firmware, encrypted firmware, HTTPS, SRTP, secure storage, SBOM and FIPS 140-3 Level 3 secure element support
Edge Storage: microSD/SDHC/SDXC up to 1TB
Power: PoE IEEE 802.3af Class 3
Power Consumption: Max 11.2W, typical 8.4W
Operating Temperature: -40°C to +50°C
Housing Material: Stainless steel STS316L, nylon dome
Dimensions: Ø175 x 120mm
Weight: 2,010g
Environmental Ratings: IP66, IP67, IP68, IP6K9K, NEMA 4X, IK11
Certification: NSF/ANSI Standard 169, RCM AS/NZS CISPR 32 Class A and other global certifications listed by Hanwha Vision

Warranty Information

Manufacturer warranty applies according to Hanwha Vision’s regional warranty terms and authorised channel conditions. Warranty support should be handled through the authorised supplier, distributor or direct brand communication process where applicable.

Brand Description

Hanwha Vision, formerly known as Hanwha Techwin, is a global provider of professional video surveillance, network camera and intelligent security solutions. The brand is recognised for advanced imaging, AI analytics, cybersecurity-focused camera design and enterprise-grade surveillance technology.

SKU

HV-XNV-A9084RS

Practical Use Scenarios

The HV-XNV-A9084RS is suitable for high-security and harsh-environment applications including commercial buildings, food and beverage facilities, warehouses, transport hubs, marine sites, industrial plants, public areas, perimeter surveillance, washdown zones and locations requiring AI-based business intelligence such as people counting, queue monitoring and crowd analysis.

Datasheets & Downloadable Resources

Official Hanwha Vision resources available for this model include datasheets, manuals, CAD files, certifications, A&E documents, quick guides, installation guide sheets and firmware downloads.

Excellence for the Australian and New Zealand Market

The HV-XNV-A9084RS is a strong fit for the Australian and New Zealand market, offering rugged environmental protection, professional-grade surveillance performance and certifications relevant to demanding commercial and industrial deployments. Its listed RCM AS/NZS CISPR 32 Class A compliance supports suitability for local regulatory expectations, while the NSF/ANSI 169 certification makes it especially relevant for food and beverage environments. For best results, this product should be sourced through authorised brand representatives, with warranty handling supported through direct communication with the brand or authorised channel partners.

FAQs

What is the HV-XNV-A9084RS used for?

The HV-XNV-A9084RS is used for professional AI video surveillance in commercial, industrial, food processing, marine, warehouse and outdoor security environments.

Does the HV-XNV-A9084RS support 8MP resolution?

Yes, the HV-XNV-A9084RS supports 8MP resolution up to 3840 x 2160 for detailed security monitoring.

What lens does the HV-XNV-A9084RS include?

The HV-XNV-A9084RS includes a 4.4–9.3mm motorised varifocal lens with 2.1x optical zoom.

How far can the HV-XNV-A9084RS see at night?

The HV-XNV-A9084RS features WiseIR infrared illumination with a viewable distance of up to 50m.

Is the HV-XNV-A9084RS suitable for harsh outdoor environments?

Yes, the HV-XNV-A9084RS is designed for harsh environments with ratings including IP66, IP67, IP68, IP6K9K, NEMA 4X and IK11.

Does the HV-XNV-A9084RS support AI analytics?

Yes, the HV-XNV-A9084RS supports AI-based object detection, intelligent video analytics, people counting, vehicle counting, crowd counting, queue management and heatmap features.

Is the HV-XNV-A9084RS suitable for food and beverage environments?

Yes, the HV-XNV-A9084RS is listed with NSF/ANSI Standard 169 certification, making it suitable for special purpose food equipment and device environments.

Does the HV-XNV-A9084RS support dynamic privacy masking?

Yes, the HV-XNV-A9084RS supports dynamic privacy masking to help protect privacy while maintaining situational awareness.

What power method does the HV-XNV-A9084RS use?

The HV-XNV-A9084RS is powered by PoE using IEEE 802.3af Class 3.

Does the HV-XNV-A9084RS support local edge storage?

Yes, the HV-XNV-A9084RS supports microSD/SDHC/SDXC edge storage up to 1TB.
