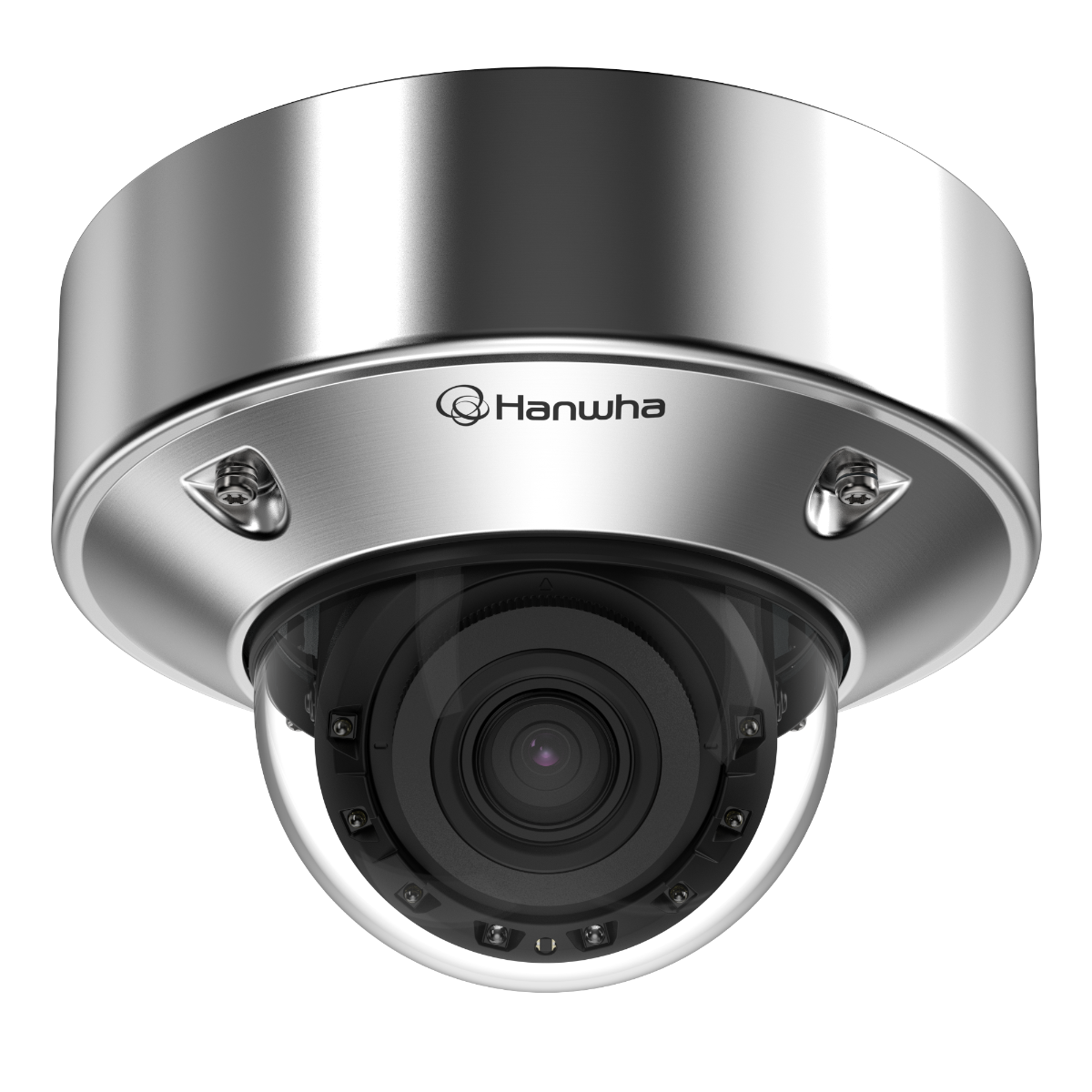

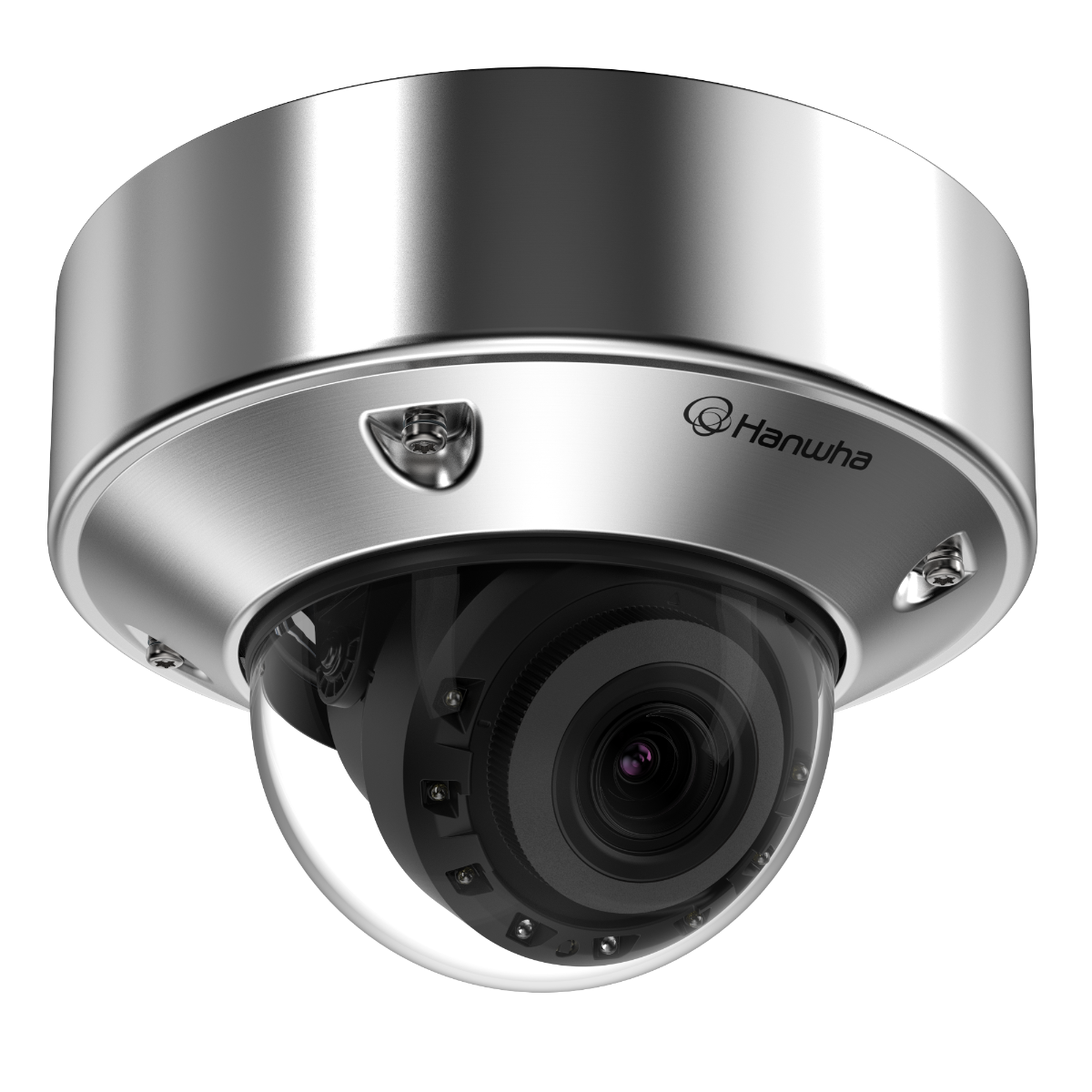

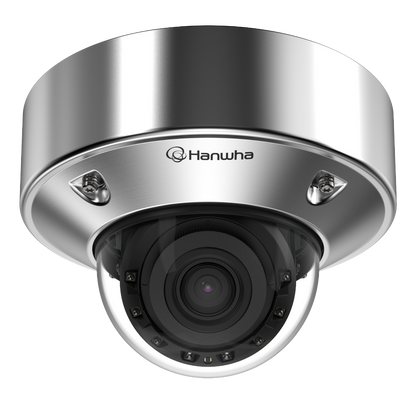

Hanwha Vision HV-XNV-A8084RS 5MP Stainless Steel AI IR Vandal Dome Camera with Wisenet 9 AI, 3.3–9.3mm Varifocal Lens, 50m IR, IP68 & NSF/ANSI 169

The Hanwha Vision HV-XNV-A8084RS is a professional 5MP stainless steel AI IR vandal dome camera designed for demanding surveillance environments requiring high-resolution imaging, intelligent analytics, strong night visibility and rugged protection. Featuring the advanced Wisenet 9 AI-powered SoC, a 3.3–9.3mm motorised varifocal lens, 50m WiseIR illumination, AI object detection and business intelligence analytics, the HV-XNV-A8084RS is ideal for commercial, industrial, food processing, marine and high-security applications.

At the core of Hanwha Vision’s second-generation P and X Series camera platform, the Wisenet 9 AI engine uses Dual NPU architecture to support both image enhancement and analytics processing, helping maintain strong image quality while enabling accurate AI-based detection and classification.

Built with a stainless steel STS316L body and nylon dome, the HV-XNV-A8084RS is engineered for harsh conditions including washdown areas, corrosive environments and chemically demanding locations. Hanwha Vision lists environmental protection including IP66, IP67, IP68, IP6K9K, NEMA 4X and NSF/ANSI Standard 169, with the product key feature summary also listing IK10 vandal resistance.

What’s Included in the Box

• 1 x Hanwha Vision HV-XNV-A8084RS / XNV-A8084RS camera

• Manufacturer-supplied installation accessories

• Manufacturer documentation / quick installation materials

• Standard Hanwha Vision packaging

Main Features

• 5MP image resolution up to 2560 x 1920

• Wisenet 9 AI-powered SoC

• Dual NPU for AI-based image enhancement and analytics performance

• 3.3–9.3mm motorised varifocal lens

• 2.8x optical zoom

• 50m WiseIR infrared illumination

• AI object detection for person, face, vehicle and licence plate

• Intelligent video analytics including virtual line, virtual area, motion detection, face mask detection, social distancing detection and slip/fall detection

• Business intelligence analytics including people counting, vehicle counting, crowd counting, queue management and heatmap

• BestShot thumbnail support and colour attribute extraction

• Dynamic Privacy Masking

• 120dB WDR for challenging lighting conditions

• WiseStream AI-based bandwidth reduction

• Stainless steel housing for harsh environments

• NSF/ANSI 169 certification for food and beverage environments

• Edge storage via microSD/SDHC/SDXC up to 1TB

Detailed Specifications

Camera Type: 5MP Stainless Steel AI IR Vandal Dome Camera
Model: XNV-A8084RS
SKU: HV-XNV-A8084RS
Image Sensor: 1/2.8" CMOS
Maximum Resolution: 2560 x 1920
Video Compression: H.265, H.264, MJPEG
Maximum Frame Rate: H.265/H.264 up to 30fps/25fps at 60Hz/50Hz
Lens: 3.3–9.3mm motorised varifocal
Optical Zoom: 2.8x
Maximum Aperture: F1.3 wide / F2.3 tele
Field of View: Horizontal 99°–31°, vertical 71°–23°, diagonal 133°–39°
IR Distance: WiseIR up to 50m
Minimum Illumination: Colour 0.04 lux, B/W 0.004 lux
Day/Night: Auto ICR
Wide Dynamic Range: 120dB
Noise Reduction: WiseNR II and SSNR V
Image Stabilisation: Digital image stabilisation supported
Defog: Supported
Privacy Masking: 32 polygonal zones
Dynamic Privacy Masking: Supported
AI Object Classification: Person, face, vehicle and licence plate
AI Attributes: Clothing colour, gender, bag, vehicle type, vehicle colour, age, face mask and glasses
Analytics Events: Object detection, virtual line, motion detection, face mask detection, social distancing detection, slip/fall detection, virtual area, defocus, tampering, audio detection and shock detection
Business Intelligence: People counting, vehicle counting, crowd counting, queue management and heatmap
Audio: Mic/line input selectable, line output
Alarm Interface: 2 configurable I/O ports
Network Interface: Metal-shielded RJ-45 10/100BASE-T
API Support: ONVIF S/G/T/M, SUNAPI and Hanwha Vision Open Platform
Edge Storage: microSD/SDHC/SDXC up to 1TB
Security Features: Secure boot, signed firmware, encrypted firmware, HTTPS, SRTP, secure storage, SBOM and FIPS 140-3 Level 3 secure element support
Power: PoE IEEE 802.3af Class 3
Power Consumption: Max 11.2W, typical 8.4W
Operating Temperature: -40°C to +50°C
Humidity: 0–100% RH condensing
Body Material: Stainless steel STS316L
Dome Material: Nylon dome
Colour: Silver
Dimensions: Ø175 x 120mm
Weight: 2,010g
Environmental Ratings: IP66, IP67, IP68, IP6K9K, NEMA 4X
Listed Certifications/Standards: NSF/ANSI Standard 169, RCM AS/NZS CISPR 32 Class A and other global EMC, safety and environmental standards listed by Hanwha Vision.

Warranty Information

Manufacturer warranty applies according to Hanwha Vision’s regional warranty terms and authorised channel conditions. Warranty support should be handled through the authorised supplier, distributor or direct brand communication process where applicable.

Brand Description

Hanwha Vision, formerly known as Hanwha Techwin, is a global video surveillance and security technology brand offering professional network cameras, AI analytics, imaging technologies and enterprise surveillance solutions. Hanwha Vision confirms that it was formerly known as Hanwha Techwin.

SKU

HV-XNV-A8084RS

Practical Use Scenarios

The HV-XNV-A8084RS is well suited for food and beverage facilities, commercial buildings, warehouses, industrial sites, marine environments, public spaces, transport infrastructure, retail security, perimeter monitoring and locations requiring intelligent video analytics such as people counting, queue monitoring, vehicle counting and crowd analysis.

Datasheets & Downloadable Resources

Hanwha Vision lists downloadable resources for the XNV-A8084RS including datasheets, manuals, CAD files, certifications, A&E documents, quick guides, installation guide sheets and firmware.

Excellence for the Australian and New Zealand Market

The HV-XNV-A8084RS is a strong surveillance choice for the Australian and New Zealand market, particularly for harsh commercial, industrial and washdown environments. Its official standards listing includes RCM AS/NZS CISPR 32 Class A, supporting suitability for Australian and New Zealand compliance expectations, while NSF/ANSI Standard 169 makes it especially relevant for food and beverage environments.

For best results, the HV-XNV-A8084RS should be sourced through authorised Hanwha Vision representatives or approved distribution channels. Warranty support should be managed through direct communication with the brand or authorised channel partner. NDSS approval is not applicable to this surveillance camera category unless separately specified by the manufacturer or distributor.

FAQs

What is the HV-XNV-A8084RS used for?

The HV-XNV-A8084RS is used for professional AI video surveillance in commercial, industrial, marine, food processing, warehouse and harsh outdoor environments.

Does the HV-XNV-A8084RS support 5MP resolution?

Yes, the HV-XNV-A8084RS supports 5MP image resolution up to 2560 x 1920.

What lens does the HV-XNV-A8084RS have?

The HV-XNV-A8084RS includes a 3.3–9.3mm motorised varifocal lens with 2.8x optical zoom.

How far can the HV-XNV-A8084RS see at night?

The HV-XNV-A8084RS features WiseIR infrared illumination with a viewable IR distance of up to 50m.

Is the HV-XNV-A8084RS suitable for food and beverage environments?

Yes, the HV-XNV-A8084RS is listed with NSF/ANSI Standard 169 certification, making it suitable for food and beverage environments where compliant camera equipment is required.

Does the HV-XNV-A8084RS support AI object detection?

Yes, the HV-XNV-A8084RS supports AI object classification for people, faces, vehicles and licence plates.

Does the HV-XNV-A8084RS include business intelligence analytics?

Yes, the HV-XNV-A8084RS supports people counting, vehicle counting, crowd counting, queue management and heatmap analytics.

Does the HV-XNV-A8084RS support dynamic privacy masking?

Yes, the HV-XNV-A8084RS supports dynamic privacy masking to help protect privacy while still allowing active monitoring.

What power method does the HV-XNV-A8084RS use?

The HV-XNV-A8084RS uses PoE via IEEE 802.3af Class 3, with maximum listed power consumption of 11.2W.

Does the HV-XNV-A8084RS support edge storage?

Yes, the HV-XNV-A8084RS supports microSD/SDHC/SDXC edge storage up to 1TB.

Is the HV-XNV-A8084RS suitable for Australian and New Zealand installations?

Yes, the HV-XNV-A8084RS is suitable for many Australian and New Zealand commercial security projects, with Hanwha Vision listing RCM AS/NZS CISPR 32 Class A among its certifications.
