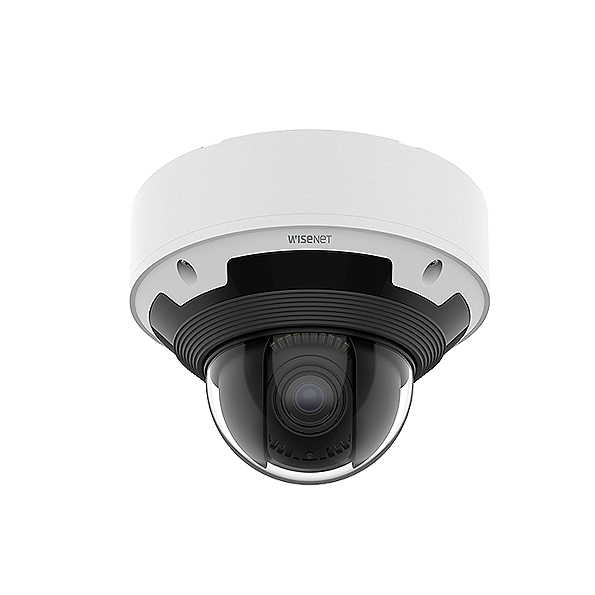

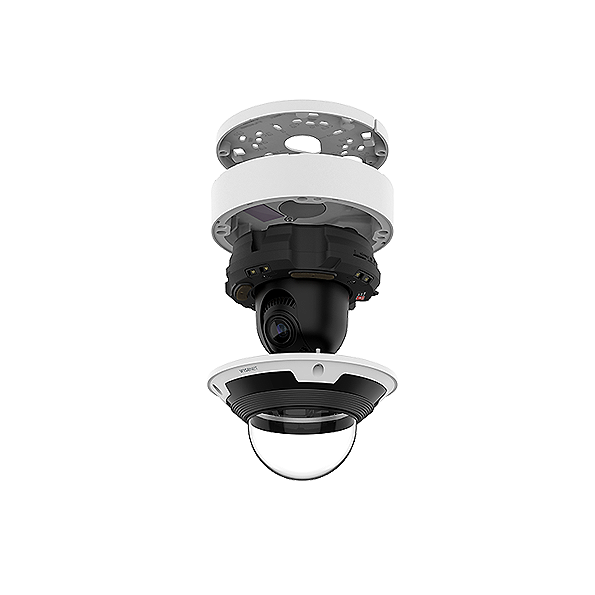

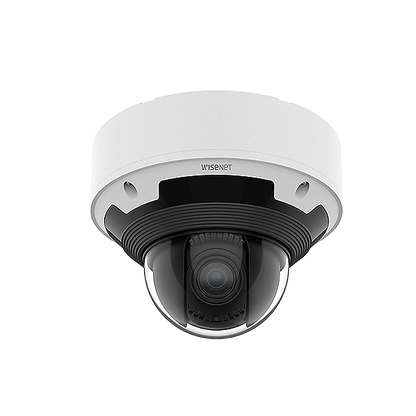

Hanwha Vision HV-XNV-9083RZ 8MP AI IR Vandal Dome Camera x series

The Hanwha Vision HV-XNV-9083RZ is an advanced 8MP vandal-resistant dome camera designed for highly reliable surveillance in tough environments. Engineered with a powerful AI analytics engine, it offers real-time object detection and classification for people, vehicles, faces, and license plates. This model delivers superior image clarity in all conditions with its 4.4~9.3mm motorized varifocal lens, WiseIR technology, and extremeWDR (120 dB). The rugged aluminum build with hard-coated dome is certified to IP66/IP67/IP6K9K and IK10+, ensuring resilient performance in outdoor or industrial deployments.

What's Included:

• HV-XNV-9083RZ Camera Unit

• Installation Hardware

• Documentation and Quick Start Guide

• Optional Mounting Accessories List

Main Features:

• 8MP resolution (3840x2160)

• 4.4~9.3mm (2.1x) motorized varifocal P-iris lens

• Low-light capability: 0.03 Lux (Color), 0.003 Lux (B/W), 0 Lux (IR on)

• IR range up to 30 meters, adaptive to scene

• AI-based analytics: person, face, vehicle (car, truck, bus, bicycle, motorcycle), license plate

• IVA: intrusion, loitering, virtual line/area, enter/exit, directional

• Audio detection, tampering, motion, defocus, fog detection

• Sound classification and shock detection

• Dual SD slots (up to 1TB), H.265/H.264/MJPEG with WiseStreamIII

• Rugged housing: IP66/IP67/IP6K9K, NEMA4X, IK10+

Specifications:

• Image Sensor: 1/1.8" progressive CMOS

• Max Frame Rate: 30fps (H.265/H.264)

• Lens: P-iris, IR corrected

• FOV: H: 113°~47°, V: 58°~26°, D: 138°~54°

• Pan/Tilt/Rotate: 0350° / 085° / 0~340° (Remote)

• Operating Temperature: -50°C to +55°C

• Power: PoE+ (Max 22.5W)

• Dimensions: Ø180 x 135 mm

• Weight: 2kg

Warranty: Backed by Hanwha Vision’s 3-year standard warranty covering material and workmanship defects. Additional coverage options are available through authorized distributors.

Brand Description: Hanwha Vision (formerly Hanwha Techwin) is a global surveillance leader, providing state-of-the-art video solutions tailored for a wide array of industries. Known for AI-driven analytics and superior build quality, Hanwha cameras set benchmarks in security innovation.

SKU: HV-XNV-9083RZ

Practical Use Scenarios:

• Monitoring city streets and intersections

• Securing commercial or industrial perimeters

• AI-driven analytics for car parks and license plate monitoring

• Smart building integration for corporate and educational facilities

• Harsh outdoor sites like ports, rail, or mining zones

Datasheets & Resources:

• Download Datasheet - PDF

Excellence for the Australian and New Zealand Market: Specifically optimized for Australian and New Zealand environments, the HV-XNV-9083RZ complies with RCM standards (AS/NZS CISPR 32 Class A) and meets NEMA4X, IK10+, and IP66/IP67/IP6K9K certifications. It is available exclusively through authorized ANZ distributors, with local support and warranty handling direct from Hanwha Vision for efficient service and peace of mind.

FAQs (SKU: HV-XNV-9083RZ): Q1: What is the maximum IR range of the HV-XNV-9083RZ?
A1: The camera delivers up to 30 meters of IR illumination depending on the scene, enhancing night surveillance.

Q2: Can the HV-XNV-9083RZ detect and classify multiple types of vehicles?
A2: Yes, it uses AI to identify various vehicle types including cars, trucks, buses, motorcycles, and bicycles.

Q3: Is the camera suitable for coastal or industrial environments?
A3: Absolutely. Its NEMA4X and IP6K9K ratings make it ideal for rugged and harsh locations.

Q4: Does this camera support SD card recording?
A4: Yes, it has dual SD card slots supporting up to 1TB (512GB x2) of local storage.

Q5: What installation mounts are compatible with the HV-XNV-9083RZ?
A5: The camera supports mounting with accessories like the SBP-187HMW dome hanging mount and other standard gangbox options.
