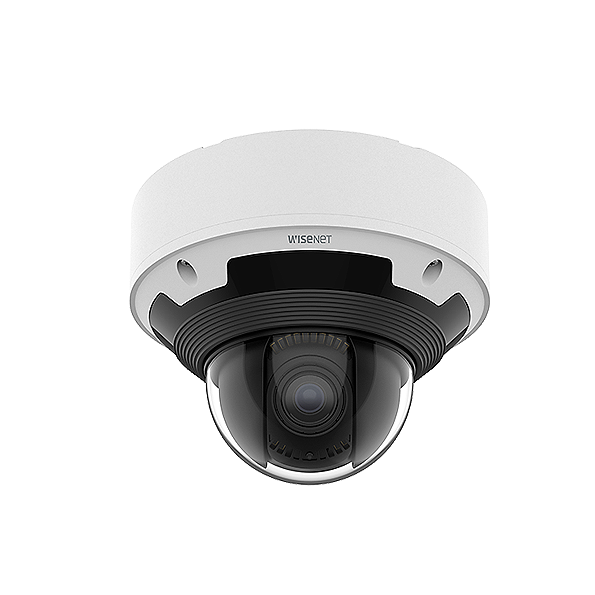

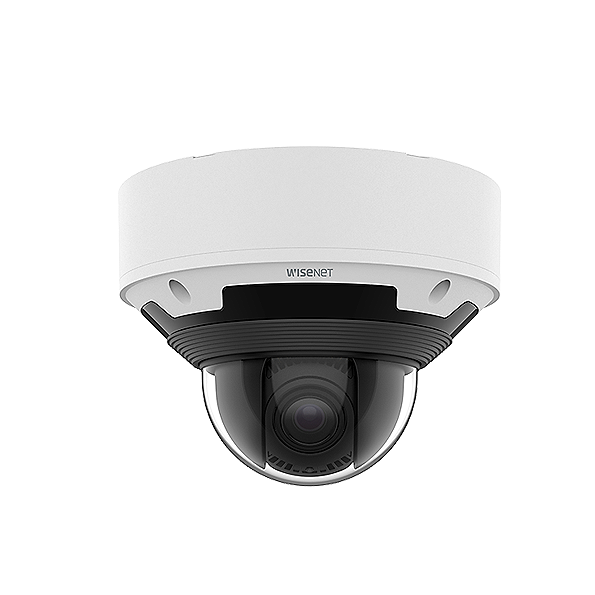

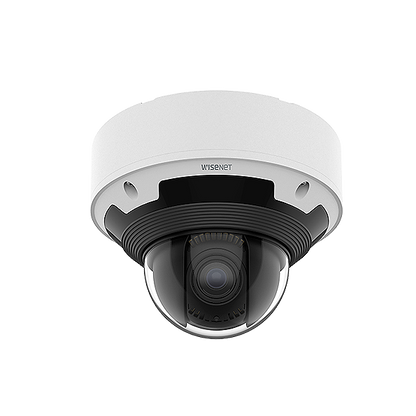

Hanwha Vision HV-XNV-8083RZ 6MP x series

The Hanwha Vision HV-XNV-8083RZ is a high-performance AI-powered 6MP vandal-resistant dome camera, ideal for demanding surveillance applications. Designed to classify and track people, vehicles, faces, and license plates in real-time, this camera features cutting-edge analytics powered by a Neural Processing Unit (NPU). Built for outdoor resilience, it is IP66, IP67, IP6K9K, and IK10+ rated, ensuring protection against harsh environmental conditions. With up to 30 meters of IR illumination and extremeWDR, it captures clear video in any lighting.

What's Included:

• HV-XNV-8083RZ Camera Unit

• Mounting Hardware

• User Documentation

• Compatibility List for Optional Accessories

Main Features:

• 6MP (3328x1872) resolution

• 4.4~9.3mm (2.1x) motorized varifocal lens

• 0.03 Lux (Color), 0 Lux (IR on)

• IR range: up to 30m, optimized per scene

• AI analytics: object detection, IVA, audio classification

• DIS with gyro sensor, extremeWDR (120dB)

• IP66/IP67/IP6K9K, IK10+, NEMA4X protection

• Dual SD card slots (max. 1TB total)

• Operating temperature: -50°C to +55°C

Specifications:

• Sensor: 1/1.8" CMOS

• IR Range: 15m to 30m

• WDR: 120dB, WiseNRII

• Power: PoE+ (max 22.5W)

• Dimensions: Ø180 x 135 mm

• Weight: 2 kg

• DORI (Detect/Observe/Recognize/Identify): Wide: 44.1m/17.6m/8.8m/4.4m; Tele: 153.1m/61.2m/30.6m/15.3m

• Video: H.265/H.264/MJPEG, up to 30fps

• Certifications: RCM, CE, FCC, IK10+, IP66/IP67/IP6K9K

Warranty: Standard 3-year warranty from Hanwha Vision, with extended warranty options available through authorized distributors.

Brand Description: Hanwha Vision, formerly Hanwha Techwin, delivers advanced surveillance technologies and AI-driven analytics. Trusted globally for their durability and intelligence, Hanwha products are used across critical infrastructures, smart cities, and commercial sectors.

SKU: HV-XNV-8083RZ

Practical Use Scenarios:

• Outdoor commercial and government perimeter protection

• Vehicle and license plate recognition in transit areas

• Campus surveillance with AI-powered analytics

• Industrial security for harsh environments

Datasheets & Resources:

• Download Datasheet - PDF

Excellence for the Australian and New Zealand Market: The HV-XNV-8083RZ is engineered to meet stringent ANZ standards, featuring RCM compliance and extreme weather resistance with IP66/IP67/IP6K9K and IK10+ ratings. Distributed through certified Hanwha partners, warranty support is managed directly for efficient service. Ideal for government, infrastructure, and retail sectors across Australia and New Zealand.

FAQs (SKU: HV-XNV-8083RZ): Q1: What is the maximum IR range of the HV-XNV-8083RZ?
A1: The IR range extends up to 30 meters, depending on the scene, using WiseIR technology.

Q2: Does the HV-XNV-8083RZ support AI object and license plate detection?
A2: Yes, the camera can detect and classify people, vehicles, license plates, and more using AI.

Q3: Is the HV-XNV-8083RZ rated for harsh outdoor use?
A3: Absolutely, it is IP66/IP67/IP6K9K, NEMA4X, and IK10+ rated for extreme weather and vandal resistance.

Q4: What power options are supported by the HV-XNV-8083RZ?
A4: The camera supports PoE+ with a typical consumption of 12.1W and maximum of 22.5W.

Q5: Which mounting accessories are compatible with the HV-XNV-8083RZ?
A5: It supports standard Hanwha mounts like SBP-187HMW for flexible installation.
