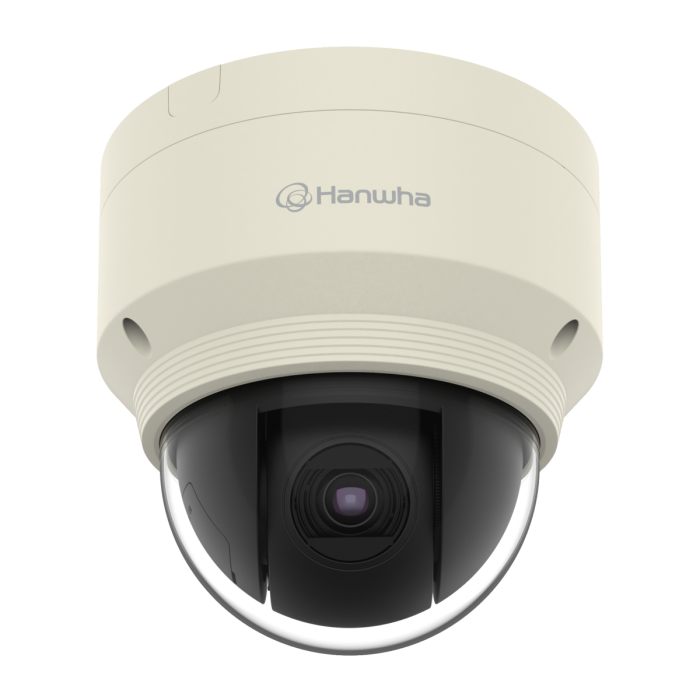

Hanwha Vision HV-XNP-6120HW 2MP PTZ Surveillance Camera x series

he Hanwha Vision HV-XNP-6120HW is a professional-grade 2MP PTZ (Pan-Tilt-Zoom) network camera engineered for high-performance surveillance in demanding environments. Equipped with a 12x optical zoom and 32x digital zoom, this camera delivers precision tracking and high-definition monitoring across vast areas. It supports H.265/H.264/MJPEG compression and provides up to 60fps at Full HD resolution. With robust weatherproof and vandal-resistant design (IP66 and IK10 rated), and integrated intelligent video analytics—including motion, face, and sound detection—this model is ideal for advanced security applications.

What's Included in the Box:

• HV-XNP-6120HW Camera

• Mounting Hardware

• Installation Guide

• Accessory Compatibility Documentation

Main Features:

• Full HD 2MP resolution (1920x1080)

• 12x optical zoom (5.2–62.4mm), 32x digital zoom (384x total)

• 150dB Wide Dynamic Range (WDR) for challenging lighting

• Minimum illumination: 0.03 Lux (Color), 0.003 Lux (B/W)

• Intelligent Video Analytics: Face, Motion, Loitering, Virtual Line, Fog, Audio Detection, Tampering

• SD/SDHC/SDXC card slot (up to 512GB)

• IP66-rated weatherproof and IK10-rated vandal-resistant housing

• Bi-directional audio, privacy masking, and directional indicator

• ONVIF Profile S/G/T support, PoE & 12VDC input

Detailed Specifications:

• Sensor: 1/2.8” CMOS

• Lens: 5.2–62.4mm, F1.6–F3.0

• Angle of View: H: 54.58°–5.30°, V: 32.19°–3.00°

• PTZ Range: 360° endless pan, -5° to 185° tilt

• Preset Accuracy: ±0.2°, Preset Speed: 350°/sec

• Operating Temperature: -30°C to +55°C

• Power Consumption: Max. 12W

• Dimensions: Ø168 × 161.5mm

• Weight: 1.9kg

• Audio In/Out: Mic/Line in, 1Vrms output

Warranty Information:
Includes a 3-year limited manufacturer's warranty covering defects in material and workmanship. Extended support available via authorized Hanwha partners.

Brand Description:
Hanwha Vision (formerly Hanwha Techwin) is a globally recognized provider of intelligent video surveillance solutions, delivering high-performance IP cameras and analytics with a focus on reliability, cybersecurity, and AI innovation.

SKU: HV-XNP-6120HW

Practical Use Scenarios:

• Public safety monitoring in parks and city centers

• Transportation terminals requiring facial and object analytics

• Parking lot surveillance with zoom-tracking capabilities

• Large retail and commercial facility perimeters

• School campuses requiring broad-area monitoring

Datasheets & Resources:

• Download Datasheet - PDF

Excellence for the Australian and New Zealand Market:
The HV-XNP-6120HW is built to meet the rigorous demands of Australian and New Zealand surveillance standards. It features IP66 and IK10 certifications, ensuring it performs reliably in both urban and remote settings. Exclusively distributed through authorized Hanwha Vision partners, the camera includes full local support and warranty services. Compliant with RCM and NEMA4X regulations, this model is ideal for councils, education institutions, and transport sectors throughout ANZ.

FAQs (SKU: HV-XNP-6120HW):

Q1: What zoom capabilities does the HV-XNP-6120HW provide?
A1: The camera offers 12x optical and 32x digital zoom, resulting in a combined 384x total zoom.

Q2: Can this camera function in very low light environments?
A2: Yes, it has a low-light sensitivity of 0.03 Lux (color) and 0.003 Lux (B/W), ideal for night surveillance.

Q3: Does the HV-XNP-6120HW support local storage?
A3: Absolutely. It features dual SD card slots supporting up to 512GB of edge storage.

Q4: Is the camera suitable for outdoor installation?
A4: Yes, it’s IP66 weather-resistant and IK10 vandal-proof, built for rugged outdoor use.

Q5: What kind of smart analytics does the HV-XNP-6120HW support?
A5: It supports AI-powered features like directional detection, sound classification, loitering, tampering, and more, ensuring comprehensive situational awareness.
