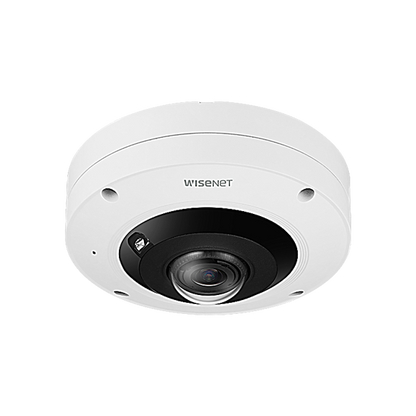

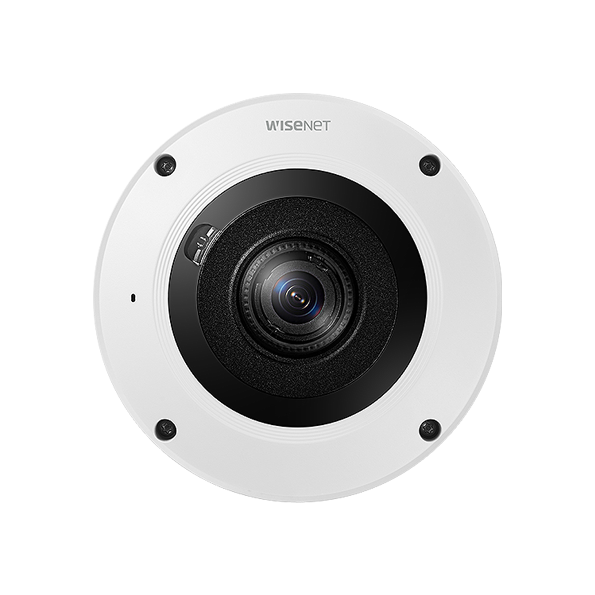

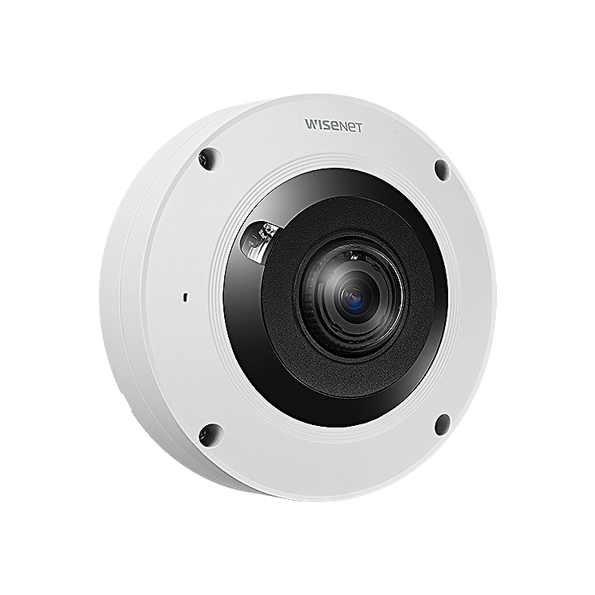

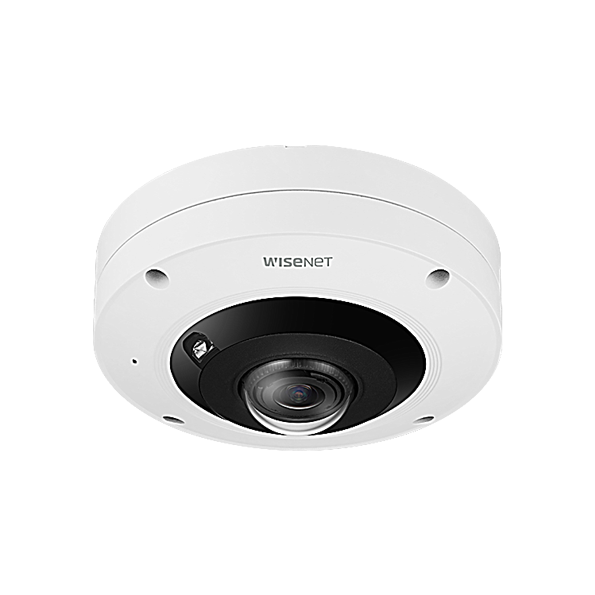

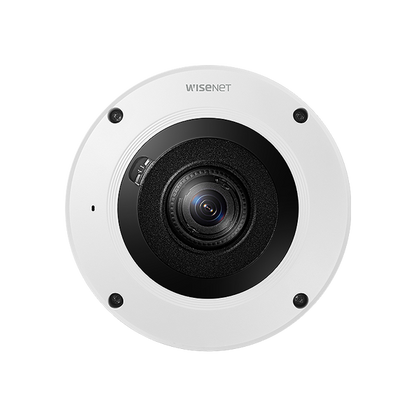

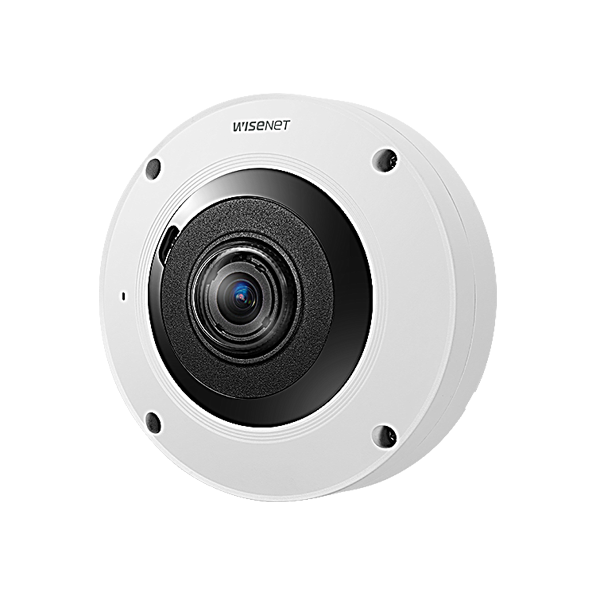

Hanwha Vision HV-XNF-9013RV 12MP AI IR Fisheye Camera – IP66 / NEMA4X / IK10 Rated, Advanced Object Analytics, and WiseStream III x series

The Hanwha Vision HV-XNF-9013RV is an advanced 12MP AI-powered fisheye camera designed for comprehensive 360° surveillance in demanding environments. Powered by Wisenet 7, this camera delivers unmatched image quality, AI-driven object detection, and industry-leading cybersecurity protections. Equipped with a stereographic fisheye lens, it ensures distortion-minimized panoramic views ideal for large indoor or outdoor areas. The WiseIR technology provides adjustable infrared illumination up to 13 meters, delivering clear video in total darkness. Rugged construction meets IP66, NEMA4X, and IK10 standards for harsh environmental conditions, while built-in analytics and cybersecurity features elevate it as a future-proof choice for modern surveillance networks.

What’s Included

• HV-XNF-9013RV Camera Unit

• Installation Hardware

• Documentation Manual

• Optional Accessory Recommendations (e.g. wall mounts, skin covers)

Main Features

✅ Ultra-High Resolution:

• Original View: up to 3008x3008 at 30fps

• Double Panorama: up to 3584x1792

• Single Panorama: up to 3584x896

✅ Stereographic Fisheye Lens:

• Horizontal, Vertical, Diagonal FOV: 187°

✅ Powerful AI Analytics:

• Object classification (Person, Face, Vehicle, License Plate)

• IVA: Virtual lines, areas, intrusion detection, loitering, etc.

• Business intelligence: People counting, queue management, heat mapping

✅ Adjustable IR with WisePower:

• Up to 13m with PoE+

• Up to 8m with PoE

✅ Extreme WDR (120 dB):

• Delivers exceptional dynamic range, even in challenging lighting

✅ Next-Level Cybersecurity:

• TPM 2.0 (FIPS 140-2 certified)

• Device certificate, secure boot/storage, firmware verification

✅ Edge Recording:

• Dual MicroSD slots (up to 1TB total)

✅ Flexible Installation:

• Wall, ceiling, or pendant mount with accessories

✅ Weather & Impact Resistance:

• IP66, NEMA 4X, IK10 rated

• Operational temperature from -40°C to +60°C

Detailed Specifications

• Imaging Device: 1/2.3" 12MP CMOS

• Lens: 1.08mm fixed focal, F2.2

• Min Illumination: 0.39 Lux (Color), 0 Lux with IR

• IR Range: PoE: 8m; PoE+: 13m

• Compression: H.265/H.264 (Main/High), MJPEG

• Smart Codec: WiseStream III (AI based)

• Network: RJ-45, 10/100Base-T Ethernet

• Protocols: IPv4, IPv6, TCP/IP, UDP, RTSP, HTTPS, ONVIF S/G/T/M

• Edge Storage: Dual SD/SDHC/SDXC slots, Max. 512GB each

• Audio I/O: In (mic/line), Out (line-level)

• Power Supply: PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), 12VDC

• Power Consumption: Max. 23W (PoE+)

• Certifications: RCM AS/NZS CISPR 32 Class A, CE, FCC, IK10, NEMA 4X

• Dimensions: Ø160 x 72 mm

• Weight: 1,170 g

Warranty

Hanwha Vision offers a standard 3-year warranty on the HV-XNF-9013RV, covering manufacturing defects under normal use. Extended warranties may be available through authorized distributors.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in innovative video surveillance technology, offering robust solutions with advanced AI analytics, cybersecurity, and exceptional image quality for professional security markets.

SKU: HV-XNF-9013RV

Price: $857.30 (ex-GST)

Practical Use Scenarios

• Retail and public space monitoring with heatmap analytics

• Transportation hubs requiring 360° coverage

• Office and commercial premises seeking advanced privacy masking and crowd management

• Casinos and entertainment venues requiring object detection and people counting

• Warehouses and logistics centers for comprehensive indoor coverage

Datasheets & Resources

• Download Datasheet – PDF

Excellence for the Australian and New Zealand Market

The HV-XNF-9013RV meets rigorous standards for use in Australia and New Zealand, including RCM compliance (AS/NZS CISPR 32 Class A). It is weather-resistant (IP66/NEMA4X), vandal-proof (IK10), and optimized for local conditions. Sourced exclusively from authorized distributors, warranty and service are handled directly through Hanwha Vision’s ANZ channels, ensuring fast support and compliance with regional standards.

FAQs (SKU: HV-XNF-9013RV)

Q1: What is the IR range of the HV-XNF-9013RV?
A1: The IR range is up to 13 meters when powered via PoE+ and up to 8 meters with standard PoE.

Q2: Can this fisheye camera perform AI object detection?
A2: Yes, it features advanced AI analytics to detect and classify people, faces, vehicles, and license plates, plus virtual line and area analytics.

Q3: Is this camera suitable for outdoor installations?
A3: Absolutely. It’s IP66 and NEMA4X rated, ensuring weather and dust resistance, and operates down to -40°C.

Q4: How much edge storage does the HV-XNF-9013RV support?
A4: It supports up to 1TB (512GB per SD slot) for local recording.

Q5: Does it integrate with third-party systems?
A5: Yes, it’s ONVIF Profile S/G/T/M compliant and supports Wisenet open platform for broad interoperability.
