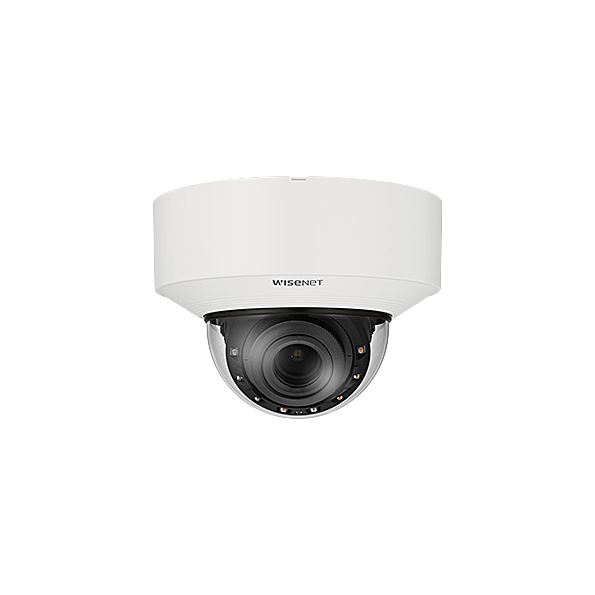

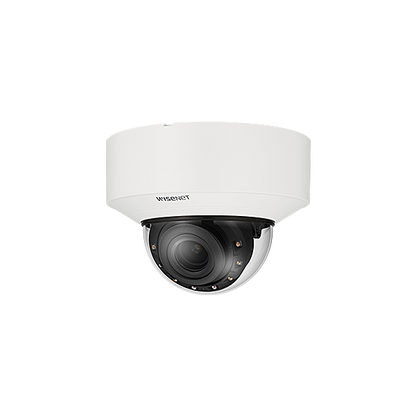

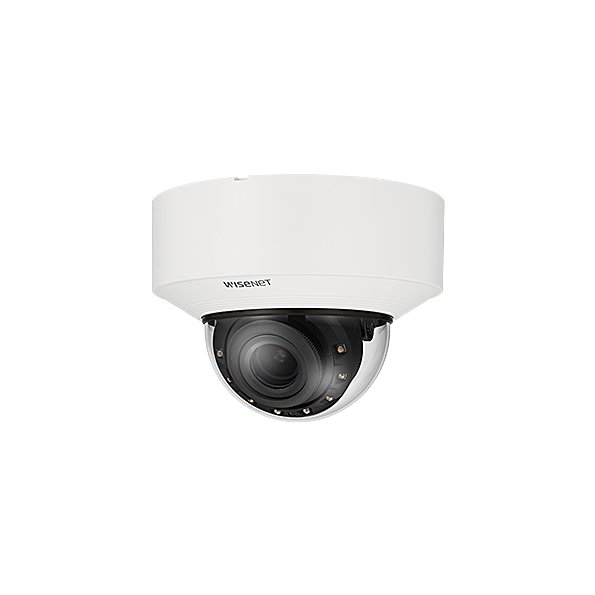

Hanwha Vision HV-XND-C7083RV 4MP AI IR Dome Camera – 60fps, extremeWDR, Intelligent Analytics, IK08, IP52 x series

The Hanwha Vision HV-XND-C7083RV is a professional-grade 4MP AI IR Dome Camera designed for precision surveillance in diverse indoor environments. Powered by the advanced Wisenet 7 chipset, this camera delivers exceptional image quality, low-light performance, and intelligent analytics that drastically reduce false alarms and enhance security operations.

Featuring a 2.8~10mm motorized varifocal lens, extremeWDR (120dB), and WiseIR infrared illumination up to 40 meters, the HV-XND-C7083RV ensures crystal-clear video footage regardless of challenging lighting conditions. Its advanced AI engine enables accurate object detection, including people, vehicles, faces, and license plates, and supports intelligent video analytics like virtual lines, intrusion detection, and more.

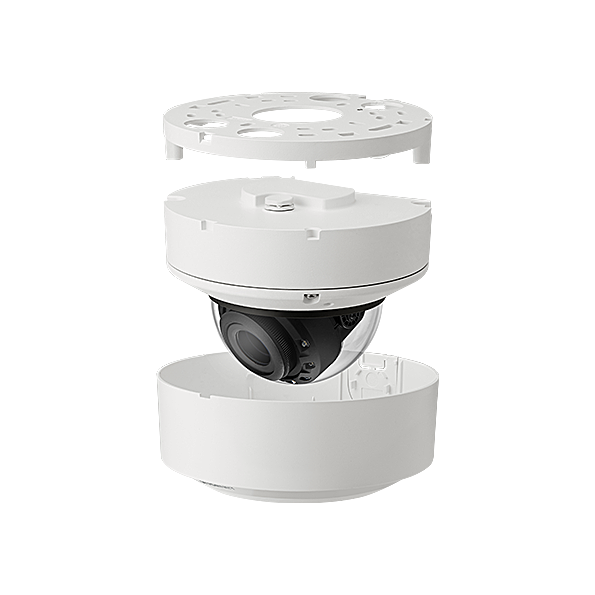

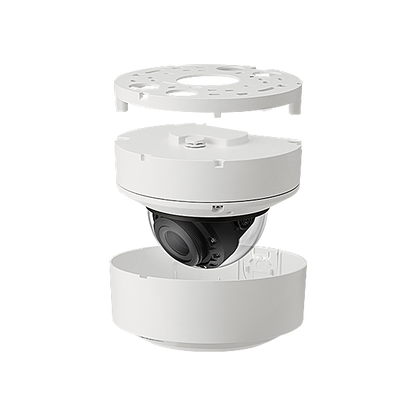

The robust aluminum construction, hard-coated dome bubble, and IP52/IK08 protection ratings ensure reliable operation in demanding environments. With support for advanced cybersecurity features, multiple streaming options, and ONVIF compliance, the HV-XND-C7083RV seamlessly integrates into modern security infrastructures.

What's Included:

• HV-XND-C7083RV Camera Unit

• Mounting Hardware

• User Documentation

• Optional Accessory List (e.g. SBP-167HMW Hanging Mount)

Main Features:

• 4MP (2592 x 1520) progressive scan CMOS sensor

• 2.8 ~ 10mm (3.6x) motorized varifocal lens

• Minimum illumination: 0.038 Lux (Color), 0 Lux (IR LED on)

• Up to 60 fps without WDR; 30 fps with WDR enabled

• extremeWDR (120 dB) for high contrast scenes

• WiseIR with IR range up to 40 m (131.23 ft)

• Intelligent analytics powered by AI engine:

  • Object Detection (Person/Face/Vehicle – Car, Truck, Bus, Bicycle, Motorcycle/License Plate)

  • Intelligent Video Analytics (Virtual line, Area, Enter/Exit, Loitering, Direction, Intrusion)

  • Event analytics: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear

• Business Intelligence analytics (People counting, Queue management, Heatmap)

• Digital Image Stabilization with built-in Gyro sensor

• Privacy masking with up to 32 quadrangle zones

• Cybersecurity features including TPM 2.0 and secure OS/boot/storage

• Support for WiseStream III smart compression technology

• Dual audio input/output

• Edge storage with microSD/SDHC/SDXC slot up to 512GB

• Compact design (Ø160 x 118 mm), weight: 1.35 kg

Specifications:

• Imaging Device: 1/2.8" progressive CMOS

• Lens: 2.8 ~ 10mm motorized varifocal, F1.4(Wide) ~ F3.0(Tele)

• Angle of View: H: 109.7° ~ 30.4°, V: 60.8° ~ 17.8°, D: 131.3° ~ 35.3°

• Minimum Illumination:

  • Color: 0.038 Lux (F1.4, 1/30sec, 30IRE)

  • B/W: 0.0038 Lux (F1.4, 1/30sec, 30IRE)

• IR Range: 40 m (WiseIR)

• Video Compression: H.265, H.264, MJPEG

• WDR: extremeWDR (120dB)

• Network Protocols: IPv4, IPv6, TCP/IP, UDP, RTP, RTSP, HTTP/HTTPS, FTP, SNMP, and more

• Power: PoE (IEEE802.3af, Class 3), 12VDC (Max. 12.5W)

• Operating Temperature: -10°C ~ +50°C

• Certifications: IP52, IK08

• Edge Storage: microSD/SDHC/SDXC up to 512GB

• Audio: Bi-directional, G.711/G.726/AAC-LC codecs

• Dimensions: Ø160 x 118 mm

• Weight: 1.35 kg

Warranty:

Hanwha Vision provides a standard 3-year warranty for the HV-XND-C7083RV, covering defects in materials and workmanship under normal use. Extended warranty options may be available via authorized distributors.

Brand Description:

Hanwha Vision, formerly Hanwha Techwin, stands at the forefront of security innovation, offering industry-leading AI-powered surveillance solutions. Their cameras deliver unrivalled image quality, intelligent analytics, and robust cybersecurity to safeguard diverse environments worldwide.

SKU: HV-XND-C7083RV

Practical Use Scenarios:

• Retail stores and shopping malls requiring people counting and heatmaps

• Corporate offices seeking discreet AI-powered security

• Education facilities monitoring hallways with privacy zones

• Airports and transportation hubs for intelligent object tracking

• Banking and financial institutions with advanced analytics needs

Datasheets & Resources:

• Download Datasheet - PDF

Excellence for the Australian and New Zealand Market:

The HV-XND-C7083RV is expertly tailored for Australian and New Zealand environments, fully compliant with local standards including RCM (AS/NZS CISPR 32 Class A). Engineered to withstand variable conditions, it offers optimal reliability and security. Distributed exclusively through authorized Hanwha Vision partners, warranty claims are handled directly with the brand, ensuring swift and professional support. The camera’s features and certifications align with the high standards demanded by professional security applications throughout the ANZ region.

FAQs (SKU: HV-XND-C7083RV):

Q1: Does the HV-XND-C7083RV support real-time AI analytics for vehicle detection?
A1: Yes, it can detect and classify vehicles, including cars, trucks, buses, motorcycles, and bicycles in real time.

Q2: What is the maximum IR range of the HV-XND-C7083RV?
A2: It provides an IR range of up to 40 meters using WiseIR technology.

Q3: Can the HV-XND-C7083RV operate in low-light conditions?
A3: Absolutely! It has excellent low-light performance with a minimum illumination of 0.038 Lux in color mode.

Q4: Is the HV-XND-C7083RV compatible with third-party VMS solutions?
A4: Yes, it supports ONVIF profiles S, G, and T and Wisenet’s open platform for seamless integration.

Q5: What optional accessories are available for the HV-XND-C7083RV?
A5: Compatible accessories include mounting brackets like the SBP-167HMW for flexible installations.
