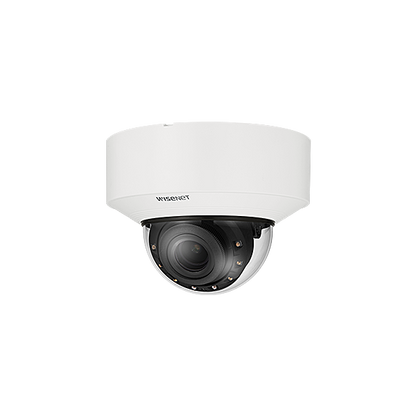

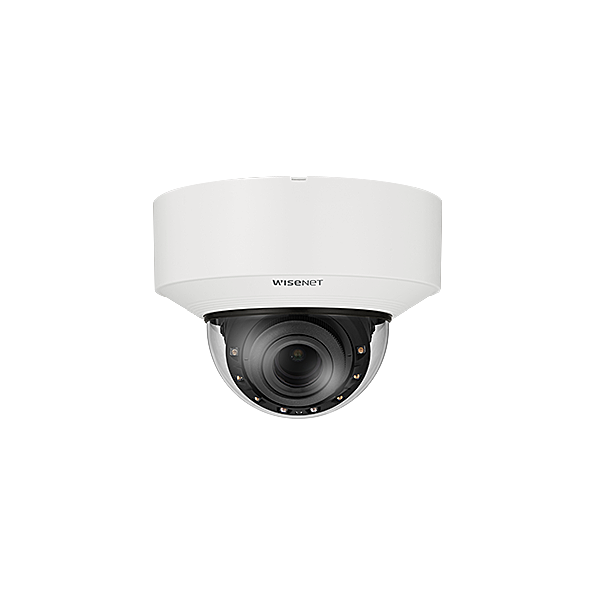

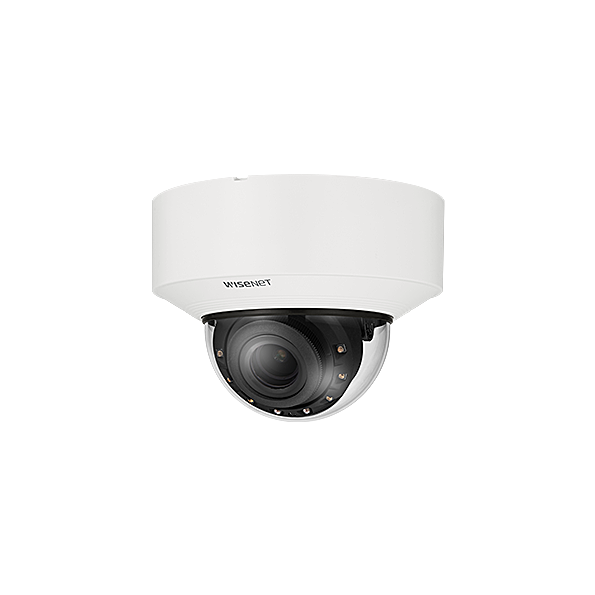

Hanwha Vision HV-XND-C6083RV 2MP AI IR Dome Camera – ExtremeWDR, Advanced Analytics, 4.3x Varifocal Lens x series

The Hanwha Vision HV-XND-C6083RV is a cutting-edge 2MP AI IR dome camera from the Wisenet X-Core series, engineered for high-precision surveillance and intelligent video analytics. Featuring a 2.8–12mm motorized varifocal lens and powered by an AI engine, it delivers exceptional image clarity and advanced object detection capabilities for diverse environments.

ExtremeWDR (150dB) ensures excellent performance in challenging lighting conditions, while WiseIR extends infrared visibility up to 40 meters for clear nighttime monitoring. With multiple smart analytics—including people counting, virtual line crossing, intrusion detection, and license plate recognition—the HV-XND-C6083RV transforms video data into actionable insights, significantly enhancing security operations.

Designed for resilience, it comes encased in a robust aluminum housing with an IK08 impact rating and IP52 weather resistance, making it suitable for demanding indoor installations. The camera supports flexible power options, including PoE or 12V DC, and offers extensive integration possibilities with ONVIF compliance and Wisenet open platform support.

Whether deployed in retail, transportation, education, or critical infrastructure, the HV-XND-C6083RV provides reliable monitoring and intelligent analytics to empower proactive security strategies.

What's Included:

• HV-XND-C6083RV Dome Camera Unit

• Installation Hardware

• Quick Start Guide

• Optional Accessories List (Mounts, Conduits, and Brackets)

Main Features:

• 2MP (1920x1080) resolution

• 2.8~12mm (4.3x) motorized varifocal lens

• Extreme low-light sensitivity: 0.01 Lux (Colour), 0 Lux (IR on)

• IR range up to 40 meters (WiseIR)

• ExtremeWDR (150dB) for superior dynamic range

• WiseNRⅡ and WiseStreamⅢ for enhanced compression and image clarity

• Advanced AI-based analytics:

  • Object detection: People, Faces, Vehicles, License Plates

  • IVA: Virtual lines/areas, Enter/Exit, Loitering, Intrusion

  • Business intelligence: People counting, Queue management, Heatmaps

• Audio detection, sound classification, shock detection

• IP52 weather resistance and IK08 vandal protection

• PoE (IEEE 802.3af) and 12VDC support

• Micro SD slot supports up to 512GB edge storage

• Compact size: Ø160 x 118 mm

• Operating temperature range: -10°C to +50°C

Specifications:

• Image Sensor: 1/2.8" progressive scan CMOS

• Resolution Options: 1920x1080 down to 320x240

• Max FPS: 60fps (H.265/H.264), 30fps MJPEG

• Min Illumination:

  • Colour: 0.01Lux (F1.4, 1/30sec, 30IRE)

  • B/W: 0.001Lux (F1.4, 1/30sec, 30IRE), 0 Lux with IR

• Lens: 2.8~12mm motorized varifocal, F1.4–F3.6

• Field of View:

  • Horizontal: 119.5°–27.9°

  • Vertical: 62.8°–15.7°

  • Diagonal: 142.1°–32.0°

• Video Codec: H.264, H.265, MJPEG, WiseStreamⅢ

• Audio Compression: G.711, G.726, AAC-LC

• IR Distance: 40m (WiseIR)

• Ingress Protection: IP52

• Impact Rating: IK08

• Power Consumption: PoE (Max. 12.95W), 12VDC (Max. 12.5W)

• Weight: 1.35 kg

• Edge Storage: Micro SD/SDHC/SDXC, up to 512GB

• Analytics Events: Defocus, motion, tampering, fog detection, sound classification, appear/disappear

• Cybersecurity: TPM, Secure OS, secure boot, verified firmware

Warranty:

Hanwha Vision offers a 3-year limited warranty covering materials and workmanship. Extended warranty options may be available through authorized distributors.

Brand Description:

Hanwha Vision, part of the Hanwha Group, is renowned for delivering innovative and high-performance video surveillance solutions globally. Leveraging AI, advanced imaging technologies, and robust cybersecurity, Hanwha Vision continues to redefine industry standards in security and business intelligence applications.

SKU: HV-XND-C6083RV

Practical Use Scenarios:

• Retail environments for people counting and behavior analysis

• Office buildings requiring detailed intrusion monitoring

• Schools and universities for hallway surveillance and crowd analytics

• Transportation hubs demanding reliable license plate recognition

• Corporate facilities for advanced perimeter security

Datasheets & Resources:

• Download Datasheet - PDF

Excellence for the Australian and New Zealand Market:

The HV-XND-C6083RV is purpose-built to meet rigorous Australian and New Zealand standards, including RCM compliance for electromagnetic compatibility. It’s supplied exclusively through authorized Hanwha Vision partners, ensuring genuine products and local support. Warranty services and technical assistance are handled directly through Hanwha Vision’s authorized channels, ensuring fast and reliable service for customers across ANZ industries, from commercial applications to government and critical infrastructure.

FAQs:

Q1: What is the IR range of the HV-XND-C6083RV?
A1: It offers a WiseIR range of up to 40 meters, ensuring crisp imaging even in complete darkness.

Q2: Does the HV-XND-C6083RV support AI analytics for vehicles and license plates?
A2: Yes, it can detect and classify vehicles and license plates, along with people and faces.

Q3: Can I install the HV-XND-C6083RV outdoors?
A3: It’s primarily designed for indoor use with an IP52 rating, though it offers protection against dust and limited water ingress.

Q4: Does this camera integrate with third-party VMS platforms?
A4: Absolutely. It’s ONVIF compliant (Profiles S, G, T), ensuring compatibility with most leading VMS solutions.

Q5: What power options are supported by the HV-XND-C6083RV?
A5: The camera supports PoE (IEEE 802.3af) and 12V DC, offering flexible installation possibilities.

Q6: What mounting accessories are available for the HV-XND-C6083RV?
A6: It’s compatible with various Hanwha mounts like SBP-167HMW for flexible installation.
