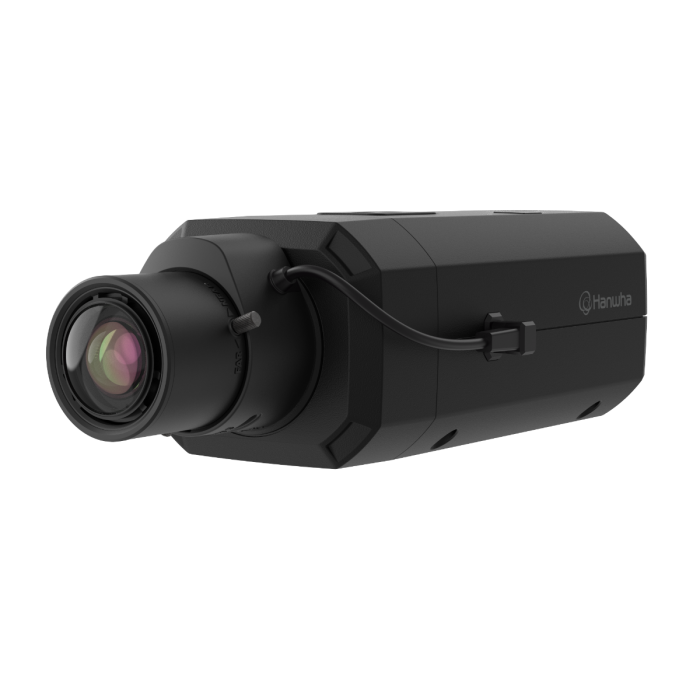

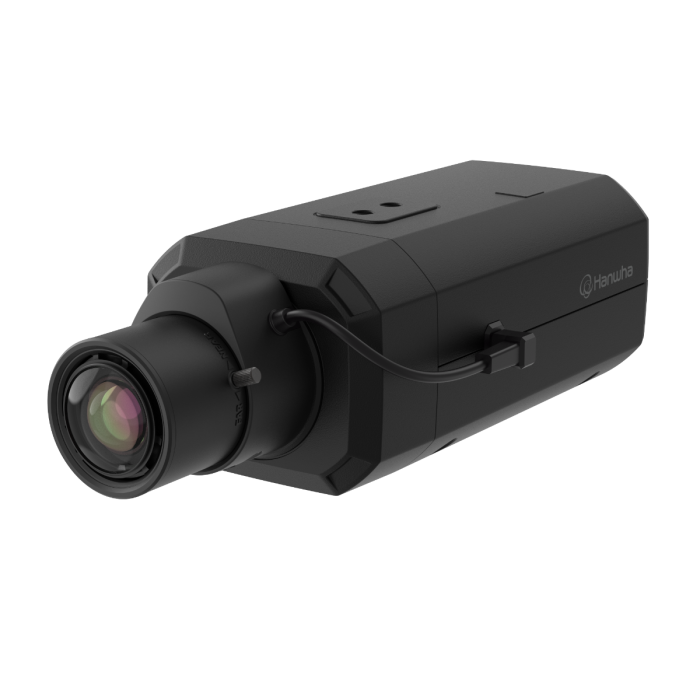

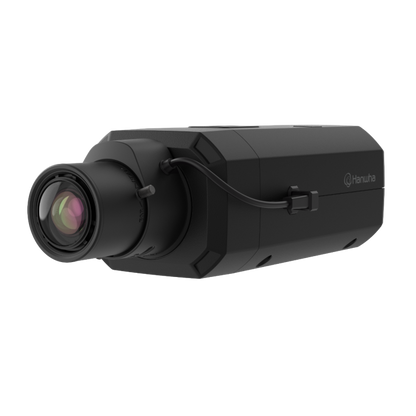

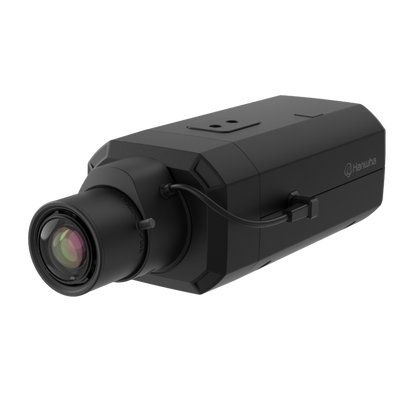

Hanwha Vision HV-XNB-A8004 XNB-A8004 5MP Wisenet 9 AI Box Camera – AI Analytics, WiseStream, WiseNR II, FIPS 140-3 Level 3, 120dB WDR

Hanwha Vision HV-XNB-A8004 XNB-A8004 5MP Wisenet 9 AI Box Camera – AI Analytics, WiseStream, WiseNR II, FIPS 140-3 Level 3, 120dB WDR

$1,326.00 AUD
$1,591.20 AUD $1,326.00 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Hanwha Vision HV-XNB-A8004 5MP AI Box Camera is a professional network surveillance camera powered by the advanced Wisenet 9 AI SoC, delivering intelligent object detection, AI-based analytics, efficient bandwidth management and clear video performance for commercial, retail, banking, public-space and enterprise security applications. The XNB-A8004 supports 5MP image resolution, WiseStream, WiseNR II, WisePower monitoring and cybersecurity features designed for modern IP video systems.

Built for flexible professional installations, the HV-XNB-A8004 combines a box-camera form factor with support for separately selected lens modules, allowing integrators to match the camera to project-specific viewing requirements. Its AI engine supports analytics such as object detection, line crossing, loitering, intrusion, slip and fall detection, social distancing detection, people counting, queue management, heatmap, vehicle counting and crowd counting.

The camera uses H.265, H.264 and MJPEG video compression, with WiseStream smart codec technology to help reduce bandwidth and storage use while maintaining image quality on important objects such as people and vehicles.

What’s Included in the Box

  • 1 x Hanwha Vision HV-XNB-A8004 / XNB-A8004 5MP AI Box Camera body
  • Product documentation may be supplied depending on region and distributor package
  • Lens module sold separately
  • Mounting accessories, power supply, microSD cards and optional I/O accessories are not listed as included unless specified by the seller

Main Features

  • 5MP AI box camera for high-detail IP surveillance
  • Wisenet 9 AI-powered SoC with Dual NPU support
  • AI-based video analytics for object detection and business intelligence
  • Crowd detection, people counting, queue management, heatmap and vehicle counting
  • WisePower power monitoring and eco mode
  • WiseNR II AI-based digital noise reduction
  • WiseStream smart codec for efficient bandwidth use
  • 120dB WDR for high-contrast scenes
  • Day & Night with ICR
  • H.265, H.264 and MJPEG codec support
  • USB Type-C video preview for installation only
  • FIPS 140-3 Level 3 secure element listed in product security specifications
  • MicroSD edge storage support up to 1TB x 2 slots, total 2TB
  • PoE or 12VDC power input
  • Lens module sold separately

Detailed Specifications

Specification Details
Product Code / SKU HV-XNB-A8004
Manufacturer Model XNB-A8004
Brand Hanwha Vision
Camera Type 5MP AI Box Camera
Series X Series
Image Sensor 1/2.8" CMOS
Maximum Resolution 2560 x 1920
Supported Resolutions 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Maximum Frame Rate H.265/H.264: 30fps/25fps at 60Hz/50Hz
Video Compression H.265, H.264, MJPEG
Smart Codec WiseStream based on AI engine
WDR 120dB
Day/Night Auto ICR
Lens Support DC auto iris, P-iris, manual, I-CS
Mount Type C mount, CS mount
Focus Control Simple focus
Minimum Illumination Key feature listing: Colour 0.02 lux, B/W 0.002 lux
Analytics Object detection, virtual line, motion detection, face mask detection, social distancing, slip and fall, virtual area analytics
Business Intelligence People counting, queue management, heatmap, vehicle counting, crowd counting
Classified Object Types Person, face, vehicle, licence plate
Audio Selectable mic in / line in, built-in mic, line out
Network RJ-45 10/100BASE-T
API Support ONVIF S/G/T/M, SUNAPI, Hanwha Vision Open Platform
Edge Storage microSD/SDHC/SDXC up to 1TB x 2 slots, total 2TB
Power Input PoE IEEE 802.3af Class 3, 12VDC
Power Consumption PoE max 8.9W, typical 7.5W; 12VDC max 8.1W, typical 6.7W
Operating Temperature -10°C to +55°C
Operating Humidity 0–95% RH, non-condensing
Colour Black
Material Aluminium
Dimensions 81(W) x 67(H) x 165(D) mm
Weight 851g
Lens Module Sold separately
Certifications / Standards Includes RCM AS/NZS CISPR 32 Class A, FIPS 140-3 Level 3 secure element, ETSI EN 303 645 and IEC 62443-4-1 references in official specifications



Warranty Information

Warranty terms may vary by region, distributor and project supply agreement. For Australian and New Zealand customers, warranty claims should be handled through the authorised supplier or direct brand representative channels where applicable. Please confirm the warranty period and service process at the time of purchase.

Brand Description

Hanwha Vision, formerly known as Hanwha Techwin, is a global video surveillance and vision solutions provider offering network cameras, video recorders, analytics, cloud services and security technologies for professional surveillance environments.

SKU

HV-XNB-A8004

Practical Use Scenarios

The HV-XNB-A8004 is suitable for professional surveillance applications where a flexible lens choice and AI analytics are required. Typical use cases include:

  • Retail stores requiring people counting, heatmap analytics and queue monitoring
  • Banking, finance and secure counter environments
  • Commercial buildings and office surveillance
  • Public-space monitoring with object and crowd detection
  • Transport, logistics and warehouse environments
  • Sites requiring AI-assisted event detection and efficient IP video streaming
  • Projects where the lens must be selected separately to suit the field of view

Datasheets & Downloadable Resources

Available resources for the XNB-A8004 include datasheets, manuals, CAD files, certifications, A&E documentation, quick guides, open-source licence information, SBOM and firmware files through Hanwha Vision’s product download section. The official product page lists the English datasheet DataSheet_XNB-A8004_20260415_EN_111155.pdf.

Excellence for the Australian and New Zealand Market

The HV-XNB-A8004 is well suited to professional Australian and New Zealand surveillance projects requiring advanced AI analytics, strong cybersecurity features and flexible integration. Official specifications list RCM AS/NZS CISPR 32 Class A EMC compliance, supporting suitability for local regulatory expectations in Australia and New Zealand.

For trustworthy project deployment, this product should be sourced through authorised Hanwha Vision channels or approved brand representatives. Warranty support should be handled through the supplying distributor or direct communication with the brand’s authorised support network. No NDSS approval is listed in the verified product material for this camera, so it should not be advertised as NDSS-approved unless separate brand documentation is provided.

FAQs

What is the HV-XNB-A8004 used for?

The HV-XNB-A8004 is used for professional IP video surveillance where 5MP resolution, AI analytics, flexible lens selection and box-camera installation are required.

Does the HV-XNB-A8004 include a lens?

No. The HV-XNB-A8004 product information states that the lens module is sold separately.

What resolution does the HV-XNB-A8004 support?

The HV-XNB-A8004 supports up to 5MP resolution, with a maximum listed resolution of 2560 x 1920.

Does the HV-XNB-A8004 support AI analytics?

Yes. The HV-XNB-A8004 supports AI-based analytics including object detection, virtual line, intrusion, loitering, slip and fall detection, people counting, queue management, heatmap, vehicle counting and crowd counting.

Does the HV-XNB-A8004 support WiseStream?

Yes. The HV-XNB-A8004 supports WiseStream smart codec technology to help reduce bandwidth and storage use while maintaining important image detail.

What power options does the HV-XNB-A8004 support?

The HV-XNB-A8004 supports PoE IEEE 802.3af Class 3 and 12VDC power input.

Is the HV-XNB-A8004 suitable for Australian and New Zealand projects?

Yes, the HV-XNB-A8004 is suitable for professional projects in Australia and New Zealand when supplied through authorised channels, and the official specifications list RCM AS/NZS CISPR 32 Class A compliance.

Does the HV-XNB-A8004 support edge storage?

Yes. The HV-XNB-A8004 supports microSD/SDHC/SDXC edge storage up to 1TB x 2 slots, for a total of 2TB.

What codecs does the HV-XNB-A8004 support?

The HV-XNB-A8004 supports H.265, H.264 and MJPEG video compression.

Is the HV-XNB-A8004 a Hanwha Vision camera?

Yes. The HV-XNB-A8004 corresponds to the Hanwha Vision XNB-A8004, listed as a 5MP AI Box Camera.
