Hanwha Vision HV-XNB-8002 6MP Box Network Camera – Wisenet7 AI-Driven Custom Lens Surveillance x series

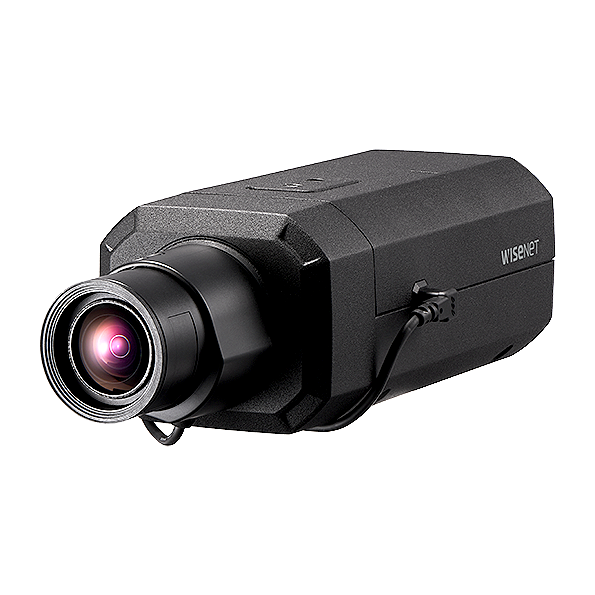

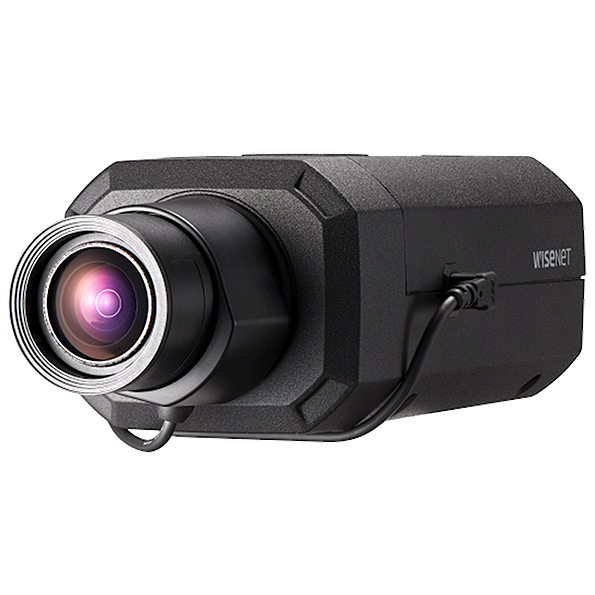

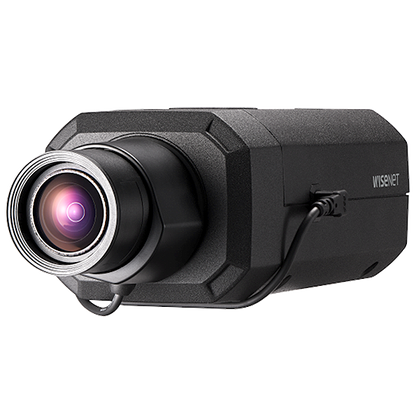

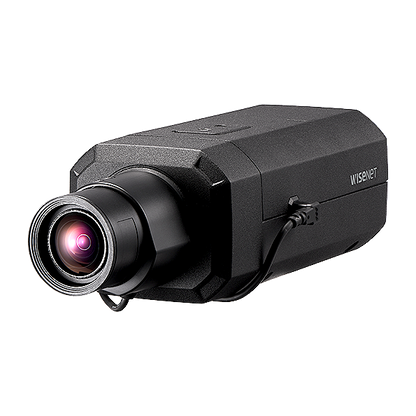

The Hanwha Vision HV-XNB-8002 is a 6MP full-body network camera designed for use with interchangeable C or CS mount lenses, offering exceptional adaptability for targeted surveillance needs. Engineered with the Wisenet7 chipset, it features next-generation AI-powered analytics, extreme WDR (150dB), and digital auto-tracking, making it ideal for monitoring high-risk or precision-controlled areas across retail, transport, and government facilities.

What's Included in the Box

• Hanwha Vision HV-XNB-8002 Box Camera (Lens not included)

• Terminal Blocks for Audio and I/O connections

• Micro USB Setup Cable

• Mounting Template and Screws

• Quick Start Installation Guide

Main Features

• 6MP Resolution (3328x1872): Delivers high-detail imaging suitable for analytics and evidentiary use.

• AI Video Intelligence: Defocus detection, audio detection, virtual lines, directional and motion triggers.

• Digital Auto-Tracking: Enhanced target follow-up in fixed-lens applications.

• Sound Classification: Differentiates between glass breaks, screams, and gunshots.

• DIS with Gyro Sensor: Stabilized imaging under physical disturbances or vibrations.

• Dual Micro SD Slots: Local recording up to 512GB (256GB x2).

• Extreme WDR (150dB): Ensures clear imaging in scenes with challenging lighting dynamics.

• Modular Lens System: Compatible with C-mount, CS-mount, and P-iris controlled lenses.

• Edge Analytics: Heatmaps, people counting, queue monitoring, tampering alerts.

Detailed Specifications

• Image Sensor: 1/2.8” CMOS

• Min. Illumination: Color: 0.05Lux @ F1.2 | B/W: 0.005Lux

• Lens Support: DC auto iris, P-iris, Manual, I-CS (Lens not included)

• Mount Type: C-mount / CS-mount

• Shutter Speed: 1/5s – 1/12,000s with anti-flicker control

• Rotation: Flip, Mirror, Hallway View (90° / 270°)

• Privacy Masking: 32 zones, polygonal shapes, color and mosaic options

• Video Out: CVBS & USB (Micro USB, 720p)

• Compression Formats: H.265, H.264 (Main/High), MJPEG; WiseStream II

• Streaming: Unicast (20 users), Multicast; up to 10 profiles

• Audio I/O: Mic in / Line in, Line out; G.711, G.726, AAC-LC supported

• Network Interface: RJ-45 (10/100/1000BASE-T)

• Security: HTTPS, Digest Login, IP filtering, 802.1X, device certificates

• Protocols: ONVIF (Profiles S/G/T), SUNAPI, SRTP, SNMP, SSL/TLS

• Operating Temp: -10°C to +55°C

• Storage Temp: -50°C to +60°C

• Power Input: PoE (IEEE802.3af), 12VDC, 24VAC

• Power Consumption: Max 13.5W

• Dimensions / Weight: 81(W) x 67(H) x 165(D) mm | 0.88 kg

• Material: Aluminum housing, black finish

Warranty Information

Covered by a 3-year manufacturer warranty with regional support through authorized Hanwha Vision ANZ distributors.

Brand Description

Hanwha Vision, a global leader in surveillance technology, brings military-grade imaging and analytics to commercial applications. Their Wisenet7 chipset is engineered for intelligent detection, cybersecurity, and AI-driven efficiency.

SKU: HV-XNB-8002

Practical Use Scenarios

• Government & Correctional Facilities: AI detection and lens versatility for secured perimeters.

• Retail Chains: Track visitor flow and dwell time using heatmaps and queue monitoring.

• Transportation Hubs: Monitor corridors and gates with adjustable lenses.

• Manufacturing & Warehousing: Area-specific coverage with configurable lens and analytics.

• Studio Surveillance: Custom zoom capability for media, production, or lab settings.

Datasheets & Resources

• Download Full Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• RCM certified and AS/NZS compliant.

• Wide power support (PoE/12VDC/24VAC) adaptable to local building codes.

• Proven operation in harsh climates (-10°C to +55°C).

• Distributed exclusively via certified Hanwha Vision partners in the region.

• All warranties and service handled locally through trained technical channels.

Frequently Asked Questions (FAQs)

Q1: Does the HV-XNB-8002 include a lens?
A1: No, it is a lens-agnostic camera requiring a separate C or CS-mount lens.

Q2: What is the max resolution of the HV-XNB-8002?
A2: 6MP with a resolution of 3328x1872 pixels at 30fps.

Q3: Can it store video locally?
A3: Yes, it has dual SD slots supporting up to 512GB total.

Q4: What analytics are supported by the HV-XNB-8002?
A4: It supports AI-based motion detection, face/upper body detection, directional alerts, sound classification, and queue management.

Q5: What kind of video output ports are available for installation?
A5: It includes CVBS (composite) and Micro USB outputs for setup and testing.
