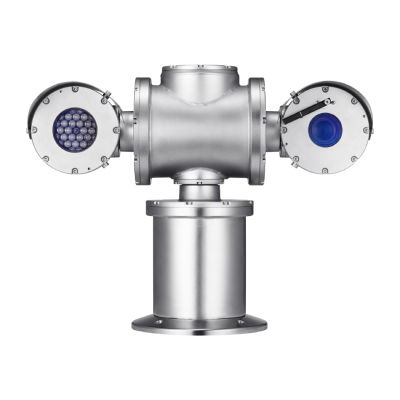

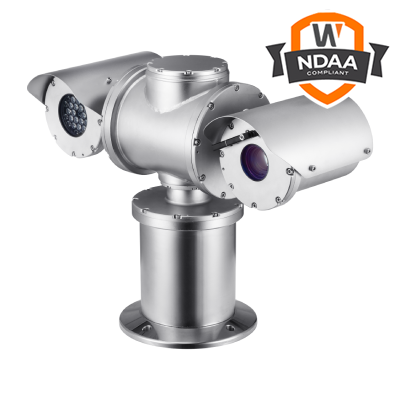

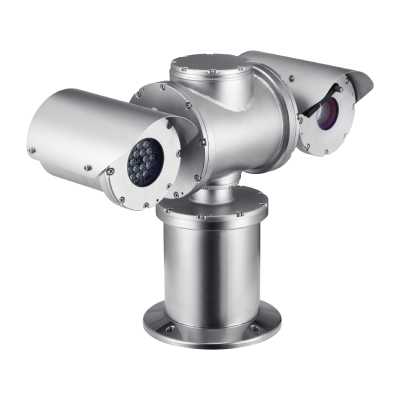

Hanwha Vision HV-TNU-6322ER 2MP Explosion-Proof PTZ Camera – 32x Optical Zoom, 200m IR, ATEX/IECEx Certified ) T Series

Hanwha Vision HV-TNU-6322ER 2MP Explosion-Proof PTZ Camera – 32x Optical Zoom, 200m IR, ATEX/IECEx Certified ) T Series

$25,367.40 AUD
$33,864.00 AUD $25,367.40 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Engineered for the harshest and most hazardous environments, the Hanwha Vision HV-TNU-6322ER explosion-proof camera delivers outstanding surveillance performance and uncompromising durability. Equipped with a 2MP CMOS sensor and an impressive 32x optical zoom lens, it provides crisp detail from wide-area coverage down to fine, distant targets.

Thanks to its integrated infrared (IR) illuminators, the camera achieves clear images up to 200 meters, even in total darkness. Advanced imaging technologies such as WDR (120 dB), WiseNRⅡ noise reduction, and Defog ensure superior video quality under challenging lighting and weather conditions.

Certified for explosion-prone zones (IECEx, ATEX, KCs), and constructed from rugged stainless steel 316L, the HV-TNU-6322ER is ideal for oil & gas facilities, chemical plants, marine applications, and critical infrastructure where safety and reliability are paramount.

What’s Included

  • Hanwha Vision HV-TNU-6322ER Explosion-Proof Camera

  • Integrated wiper

  • Mounting hardware (compatible accessories optional)

  • User documentation

Main Features

  • High-Resolution Video: 2MP (1920 x 1080) resolution at up to 60fps

  • Powerful Zoom: 32x optical zoom (4.44 ~ 142.6 mm), plus 16x digital zoom

  • Wide Field of View: H: 61.8° ~ 2.19°, V: 36.2° ~ 1.24°

  • Superior Low-Light Performance:

    • Color: 0.05 Lux @ F1.6

    • B/W: 0.005 Lux @ F1.6, 0 Lux with IR

  • Infrared Illumination: Up to 200 meters IR distance

  • Explosion-Proof Certification: IECEx, ATEX, KCs

  • Advanced Analytics: Motion detection, directional detection, face detection, tampering, virtual line, audio detection, and more

  • Pan/Tilt Capabilities:

    • Pan: 360° endless rotation, speed 0.5°/s to 80°/s

    • Tilt: 180° (-90° to +90°), speed 0.1°/s to 60°/s

    • Up to 300 presets with ±0.25° accuracy

  • Day/Night Operation: Auto ICR

  • Wide Dynamic Range: 120 dB for high-contrast scenes

  • Built-in Wiper: For reliable visibility in harsh conditions

  • Environmental Durability: IP67 and IK10-rated stainless steel 316L housing

  • Smart Codec: WiseStream II for efficient bandwidth usage

  • Audio Support: Mic/line input and line output

  • Multiple Streams: Up to 10 profiles for optimized streaming

Detailed Specifications

Category Specification
Sensor 1/2.8" CMOS
Max Resolution 1920 x 1080
Lens 4.44 ~ 142.6mm (32x optical zoom)
Min. Illumination Color: 0.05 Lux @ F1.6
B/W: 0.005 Lux @ F1.6, 0 Lux with IR
IR Range Up to 200 meters
Frame Rate Up to 60fps (H.265/H.264)
WDR 120 dB
Video Compression H.265, H.264, MJPEG
Audio Compression G.711, G.726, AAC-LC
Network Protocols IPv4/IPv6, HTTPS, RTSP, SNMP, ONVIF Profile S/G/T, and more
Analytics Motion detection, directional detection, fog detection, face detection, tampering, virtual line, audio detection, appear/disappear, enter/exit, loitering
Alarm I/O 1 input, 1 output
Operating Temp -40°C to +60°C
Power Input 24VAC
Power Consumption Max. 99W (camera), Max. 50W (IR)
Housing Material Stainless steel 316L
Dimensions 611(W) x 438(H) x 235(D) mm
Weight 36 kg

Compatible Accessories (Optional)

  • SBE-100WM Wall Mount

  • SBE-100B Ceiling Mount

  • SBE-100PM Pole Mount

Warranty Information

Hanwha Vision provides a 3-year warranty on the HV-TNU-6322ER, covering defects in materials and workmanship under normal use conditions.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in innovative video surveillance technologies, offering solutions renowned for durability, cybersecurity, and advanced analytics across industrial, commercial, and government applications.

SKU: HV-TNU-6322ER

Practical Use Scenarios

  • Oil & gas refineries and petrochemical plants

  • Chemical processing facilities

  • Offshore and marine environments

  • Explosive environments in manufacturing plants

  • Critical infrastructure protection in hazardous zones

Datasheets & Resources

Excellence for the Australian and New Zealand Market

The HV-TNU-6322ER meets stringent Australian and New Zealand compliance standards for hazardous environments, including IP67 and IK10 protection and ATEX/IECEx certifications. Distributed exclusively through authorized Hanwha Vision partners, it offers robust local warranty and support services to ensure peace of mind for professional security installations across ANZ.

FAQs (SKU: HV-TNU-6322ER)

Q1: Is the HV-TNU-6322ER certified for explosive environments?
A1: Yes, it holds IECEx, ATEX, and KCs certifications for use in hazardous and explosion-prone areas.

Q2: What is the maximum IR range of this camera?
A2: The camera offers up to 200 meters IR viewable distance, ensuring excellent visibility at night or in low-light conditions.

Q3: Can this camera operate in extreme temperatures?
A3: Absolutely. It is rated for operation between -40°C and +60°C.

Q4: Does the HV-TNU-6322ER support intelligent analytics?
A4: Yes, it includes advanced analytics such as motion detection, directional detection, face detection, tampering alarms, and more.

Q5: What is the camera’s zoom capability?
A5: The camera features a 32x optical zoom, plus 16x digital zoom, delivering exceptional detail at long distances.
