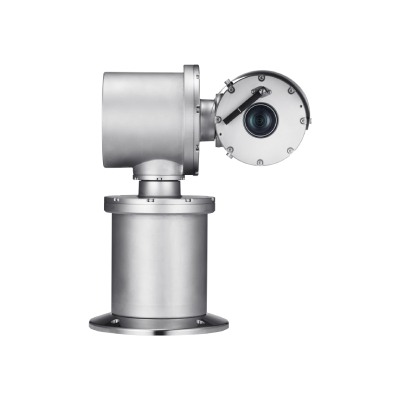

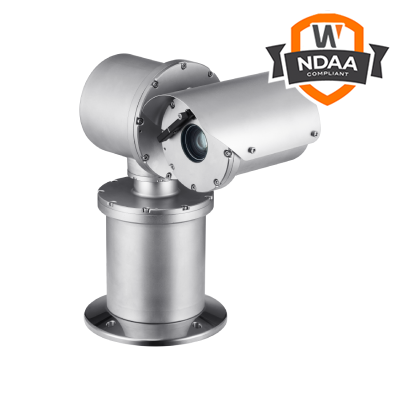

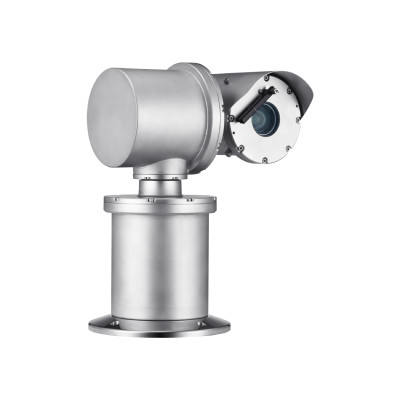

Hanwha Vision HV-TNU-6322E 2MP Explosion-Proof PTZ Camera – 32x Optical Zoom, Stainless Steel, ATEX/IECEx Certified ) T Series

The Hanwha Vision HV-TNU-6322E is a rugged, explosion-proof PTZ camera engineered for the toughest hazardous environments. Equipped with a high-performance 2MP CMOS sensor, it captures crisp Full HD video, while the powerful 32x optical zoom ensures detailed observation of distant targets.

Certified to IECEx, ATEX, and KCs standards for safe operation in hazardous zones, it’s ideal for oil & gas facilities, chemical plants, and critical infrastructure sites. The camera’s stainless steel 316L housing resists corrosion and withstands harsh weather conditions, while a built-in wiper ensures clear viewing in rain, dust, or industrial environments.

Supporting advanced video analytics—including motion detection, directional detection, tampering, and virtual lines—the HV-TNU-6322E transforms security monitoring into proactive threat detection. With seamless pan-tilt-zoom operation, wide dynamic range (120 dB), and robust cybersecurity, this camera ensures uncompromising performance in mission-critical applications.

What’s Included

• Hanwha Vision HV-TNU-6322E Explosion-Proof Camera

• Built-in wiper

• User documentation

• Optional mounting accessories available separately

Main Features

• Resolution: 2 Megapixel (1920 x 1080) Full HD video

• Lens: 4.44 ~ 142.6mm motorized varifocal lens (32x optical zoom) plus 16x digital zoom

• Field of View: Horizontal 61.8° ~ 2.19° / Vertical 36.2° ~ 1.24°

• Low-Light Performance:

  • Color: 0.05 Lux @ F1.6

  • B/W: 0.005 Lux @ F1.6, 0 Lux with IR

• Frame Rate: Up to 60 fps (H.265/H.264), 30 fps (MJPEG)

• WDR: 120 dB for excellent detail in high-contrast scenes

• Explosion-Proof Certifications: IECEx, ATEX, KCs

• Robust Construction: Stainless steel 316L housing for superior corrosion resistance

• Pan/Tilt Features:

  • Endless 360° pan

  • Tilt range: -90° ~ +90°

  • Pan speed: 0.5°/s to 80°/s

  • Tilt speed: 0.1°/s to 60°/s

  • Up to 300 preset positions with ±0.25° accuracy

• Video Analytics:

  • Motion, face, directional, fog, tampering, appear/disappear, virtual line, enter/exit, loitering, audio detection

• Environmental Protection:

  • IP67 and IK10 rated

  • Operating temperatures from -40°C to +60°C

• Audio Support:

  • Mic/Line in

  • Line out, 1 Vrms max.

• Smart Codec: WiseStream II for optimized bandwidth usage

• Multiple Streaming: Supports up to 10 streaming profiles

• Cybersecurity: HTTPS encryption, user access log, IP filtering, 802.1X authentication

Detailed Specifications

Compatible Accessories (Optional)

• SBE-100WM Wall Mount

• SBE-100B Ceiling Mount

• SBE-100PM Pole Mount

Warranty Information

Hanwha Vision provides a standard 3-year warranty for the HV-TNU-6322E, covering defects in materials and workmanship under normal use.

Brand Description

Hanwha Vision (formerly Hanwha Techwin) is a global leader in advanced video surveillance solutions. Known for high-quality imaging, robust cybersecurity, and innovative AI analytics, Hanwha products are trusted worldwide for critical security applications.

SKU: HV-TNU-6322E

Practical Use Scenarios

• Petrochemical facilities and oil refineries

• Chemical plants and industrial processing areas

• Offshore drilling platforms

• Explosive atmospheres in manufacturing plants

• Marine and port security in hazardous zones

Datasheets & Resources

• Download HV-TNU-6322E Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The HV-TNU-6322E meets rigorous Australian and New Zealand standards for hazardous locations, including IP67 ingress protection, IK10 impact resistance, and certified explosion-proof ratings (IECEx, ATEX). It is distributed exclusively through authorized Hanwha Vision partners, ensuring professional local support and streamlined warranty handling for critical security applications in the ANZ region.

FAQs (SKU: HV-TNU-6322E)

Q1: Is the HV-TNU-6322E suitable for hazardous environments?
A1: Yes, it’s certified IECEx, ATEX, and KCs for safe operation in explosion-prone areas.

Q2: Does this camera have infrared illumination?
A2: No, unlike the HV-TNU-6322ER variant, the HV-TNU-6322E does not include integrated IR LEDs.

Q3: Can it be used outdoors?
A3: Absolutely. Its IP67 rating and wide temperature range make it suitable for extreme outdoor environments.

Q4: How far can the zoom reach?
A4: With a 32x optical zoom plus 16x digital zoom, it offers significant reach for long-distance monitoring.

Q5: Does it support analytics?
A5: Yes, it features advanced analytics including motion detection, face detection, tampering, virtual lines, and more.
