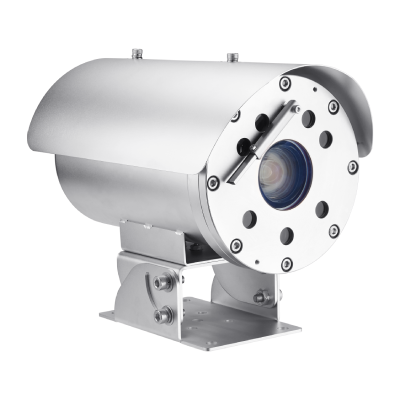

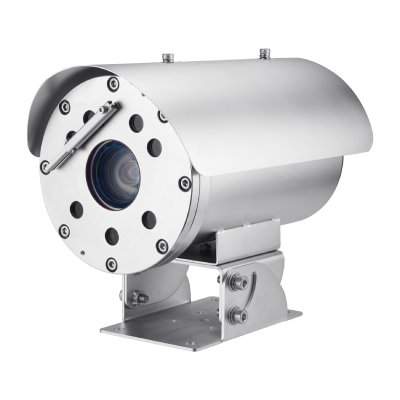

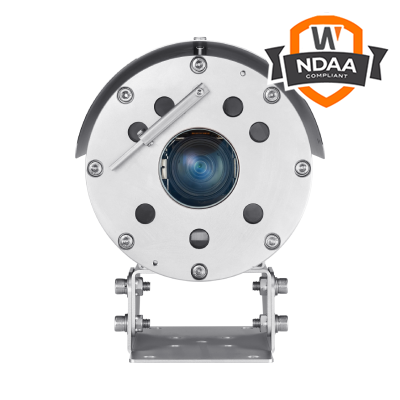

Hanwha Vision HV-TNO-6322ER 2MP Explosion-Proof PTZ Camera with IR – 32x Optical Zoom, Stainless Steel, ATEX/IECEx Certified T Series

The Hanwha Vision HV-TNO-6322ER is a rugged explosion-proof camera engineered for mission-critical monitoring in hazardous environments. Featuring a Full HD 2MP sensor and a powerful 32x optical zoom lens, it captures crystal-clear video in the most demanding industrial applications.

Certified to IECEx, ATEX, and KCs standards, this camera safely operates in areas exposed to explosive gases or combustible dust. The stainless steel 316L housing resists corrosion, while the integrated IR illuminator extends visibility up to 70 meters in total darkness.

Smart analytics, including motion detection, face detection, tampering alarms, and virtual line crossing, elevate situational awareness. With advanced H.265/H.264 compression and WiseStream II technology, the HV-TNO-6322ER efficiently delivers high-quality video over networks without excessive bandwidth consumption.

Whether securing petrochemical facilities, offshore rigs, or critical infrastructure, this camera combines durability, intelligence, and performance to deliver uncompromised safety.

What’s Included

• Hanwha Vision HV-TNO-6322ER Camera

• Built-in IR illuminator

• Built-in wiper

• User documentation

• Optional mounts (sold separately)

Main Features

• Resolution: 2 Megapixel (1920 x 1080)

• Lens: 4.44 –142.6mm motorized varifocal (32x optical zoom + 16x digital zoom)

• Field of View:

  • Horizontal: 61.8°–2.19°

  • Vertical: 36.2°–1.24°

• IR Range: Up to 70m (229 ft)

• Low-Light Sensitivity:

  • Color: 0.05 Lux (F1.6)

  • B/W: 0.005 Lux, 0 Lux with IR

• Max Frame Rate: Up to 60 fps (H.265/H.264), 30 fps MJPEG

• Wide Dynamic Range: 120 dB

• Certifications:

  • IECEx, ATEX, KCs explosion-proof

  • IP67 ingress protection

  • IK10 impact resistance

• Materials: Stainless Steel 316L

• Built-In Features:

  • Integrated wiper

  • Defog function

  • Digital image stabilization

• Intelligent Video Analytics:

  • Motion, face, tampering, fog detection

  • Virtual lines, intrusion, loitering

  • Audio detection and classification

• Cybersecurity:

  • HTTPS encryption

  • 802.1X authentication

  • IP filtering and access logs

• Power: 24VAC (Max 45W)

• Operating Temperature: –40°C ~ +60°C

Detailed Specifications

Warranty Information

Hanwha Vision provides a 3-year limited warranty covering defects in materials and workmanship under normal use. Additional extended warranty options are available through authorized partners.

Brand Description

Hanwha Vision (formerly Hanwha Techwin) is an industry leader in high-performance surveillance solutions, known for cutting-edge image quality, AI-driven analytics, and robust cybersecurity. Trusted worldwide across industrial, commercial, and critical infrastructure markets.

SKU: HV-TNO-6322ER

Practical Use Scenarios

• Petrochemical and chemical processing facilities

• Oil refineries and offshore platforms

• Explosive storage and hazardous logistics hubs

• Ports and maritime security

• Mining operations and heavy industry sites

Datasheets & Resources

• Download Datasheet – PDF

Excellence for the Australian and New Zealand Market

The HV-TNO-6322ER is certified to operate safely in hazardous Australian and New Zealand environments, fully compliant with IECEx and ATEX standards. With IP67 and IK10 ratings and stainless steel construction, it withstands corrosion, dust, and impact, providing long-term reliability. All units are sourced via authorized ANZ distributors to ensure genuine support and warranty fulfillment directly through Hanwha Vision.

FAQs (SKU: HV-TNO-6322ER)

Q1: What certifications does the HV-TNO-6322ER hold?
A1: It is IECEx, ATEX, and KCs certified for safe use in hazardous environments.

Q2: Does this model have built-in IR illumination?
A2: Yes, it features an IR viewable length of up to 70 meters.

Q3: Can it be used outdoors?
A3: Yes, with IP67 ingress protection, IK10 impact rating, and corrosion-resistant housing.

Q4: What is the maximum zoom capability?
A4: 32× optical zoom and 16× digital zoom.

Q5: What is the minimum illumination sensitivity?
A5: Color: 0.05 Lux; B/W: 0.005 Lux; 0 Lux with IR.
