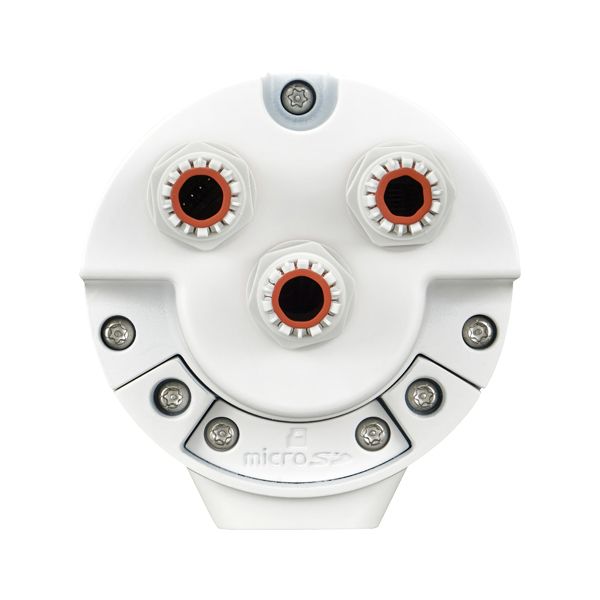

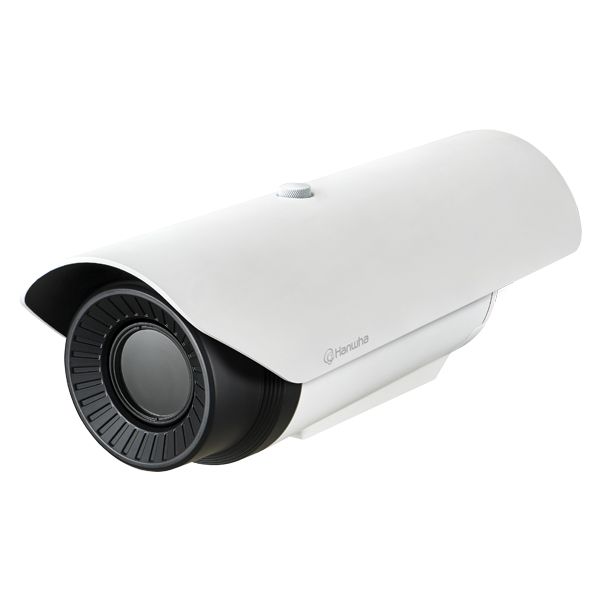

Hanwha Vision HV-TNO-4041TR VGA Thermal Radiometry Camera – 640x480 Resolution, 19mm Fixed Lens, Temperature Detection, and Advanced Analytics T Series

The Hanwha Vision HV-TNO-4041TR is a robust VGA thermal radiometry camera that combines high-precision thermal imaging with advanced analytical capabilities, ideal for perimeter monitoring, industrial temperature tracking, and safety-critical infrastructure. With a 640x480 thermal resolution, this camera offers accurate radiometric temperature detection across three ROI zones and supports an extensive range of smart video analytics.

Its IP66, NEMA4X, and IK10-rated housing ensures it stands up to the harshest environments. Powered by a 19mm fixed lens and a sensitive 17μm microbolometer (<50mK NETD), the camera supports up to 30fps with H.265, H.264, and MJPEG codecs for flexible, high-quality streaming.

What's Included in the Box:

• Hanwha Vision HV-TNO-4041TR Camera Unit

• Mounting Kit

• Safety & Installation Guide

• Compliance Documentation

Main Features:

• Thermal Radiometry: Supports radiometric temperature detection across 3 rectangular zones, range -20°C to +130°C.

• High Thermal Resolution: VGA 640x480 using uncooled microbolometer sensor, 17μm pixel pitch.

• Fixed Lens: Built-in 19mm lens with 32° horizontal FoV.

• Smart Thermal Analytics: Motion, directional, shock, tampering, audio, sound classification, and temperature change detection.

• Full Frame Streaming: Up to 30fps across all resolutions and codecs.

• Edge Storage & Network Flexibility: MicroSD up to 256GB, ONVIF S/G/T, SUNAPI, Wisenet open platform.

• Smart Codec: WiseStream II and adjustable bitrate control for bandwidth optimization.

• Rugged Build: IP66, NEMA4X, and IK10-rated aluminum housing.

Detailed Specifications:

Thermal Imaging:

• Sensor Type: Uncooled microbolometer

• Resolution: 640 x 480 (VGA)

• NETD: <50mK

• Pixel Pitch: 17μm

• Lens: 19mm fixed, F1.0

• FoV: H: 32°, V: 24.3°, D: 39.2°

• Min Object Distance: 11m

Radiometry:

• Temperature Detection Range: -20°C to +130°C

• Accuracy: ±5°C (≤100°C), ±20% (>100°C)

• Detection Zones: 3 rectangular ROI zones

• Palettes: Hybrid modes and spot reading supported

Video:

• Max Frame Rate: 30fps (H.265, H.264, MJPEG)

• Codecs: H.265, H.264 (Main/Baseline/High), MJPEG

• Smart Codec: WiseStream II, CBR/VBR

• Resolutions: 640x480, 640x360, 320x240

Audio:

• Input: Selectable mic-in/line-in (2.5VDC, 2K Ohm)

• Output: Line-out, 1Vrms

• Codecs: G.711, G.726, AAC-LC

Analytics & Detection:

• Events: Motion, tampering, loitering, virtual line, directional, audio, temperature, shock, appear/disappear, enter/exit

• Alarm I/O: 1 input / 2 outputs

• Privacy Zones: 32 polygonal zones

• Motion Zones: 8 polygonal areas

Networking:

• Interface: RJ-45 (10/100BASE-T)

• Protocols: IPv4/6, HTTPS, RTSP, SNMP, MQTT, ONVIF S/G/T, SUNAPI

• Streaming: Unicast/Multicast, up to 10 profiles

Storage:

• MicroSD/SDHC/SDXC up to 256GB

Security & Integration:

• Secure Login (HTTPS, Digest), IP filtering, access logging

• API: ONVIF, SUNAPI, Wisenet open platform

Mechanical & Environmental:

• Dimensions: Ø101.97 x 401.8 mm

• Weight: 3.12kg

• Housing: White Aluminum (RAL9003)

• Operating Temp: -40°C to +60°C

• Ingress Protection: IP66 / NEMA4X

• Vandal Resistance: IK10

Power:

• Input: PoE (IEEE802.3af), 12V DC, 24V AC

• Consumption: Max 10.5W

Warranty Information:

This product is backed by Hanwha Vision's manufacturer warranty. Local service is available through certified distributors in Australia and New Zealand.

Brand Description:

Hanwha Vision brings intelligent, secure surveillance solutions to the global stage, blending AI-driven analytics with premium thermal imaging technologies to protect people, assets, and environments.

SKU:

HV-TNO-4041TR

Practical Use Scenarios:

• High-accuracy thermal monitoring for electrical substations and factories

• Critical zone perimeter surveillance in adverse conditions

• Real-time shock, sound, and motion detection in transportation hubs

• Industrial safety monitoring for overheating equipment or fire prevention

Datasheets and Downloadable Resources:

• Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market:

Certified for the Australian and New Zealand market, the HV-TNO-4041TR meets AS/NZS CISPR 32 standards and carries the RCM mark. Designed with regional environmental challenges in mind, it features NEMA4X, IK10, and IP66 ratings, and is distributed exclusively through authorized partners to ensure compliance and streamlined warranty processing.

 FAQs (Product Code: HV-TNO-4041TR)

Q1: What resolution and lens does the HV-TNO-4041TR offer?
A1: It features VGA resolution (640x480) and a built-in 19mm fixed lens with a 32° horizontal field of view.

Q2: Can the HV-TNO-4041TR detect temperature anomalies?
A2: Yes, it supports radiometric temperature monitoring across three rectangular ROI zones.

Q3: Is the HV-TNO-4041TR compliant with ANZ standards?
A3: Yes, it meets AS/NZS CISPR 32 Class A and RCM certification requirements for the Australian and New Zealand market.

Q4: What are the power options for the HV-TNO-4041TR?
A4: The camera supports PoE, 12V DC, and 24V AC with a max power consumption of 10.5W.

Q5: What types of smart analytics are included in the HV-TNO-4041TR?
A5: It offers motion, directional, loitering, tampering, temperature detection, sound classification, and more.
