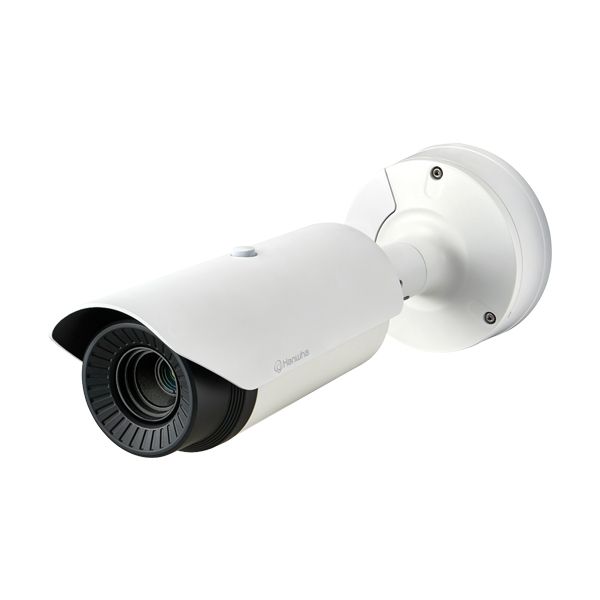

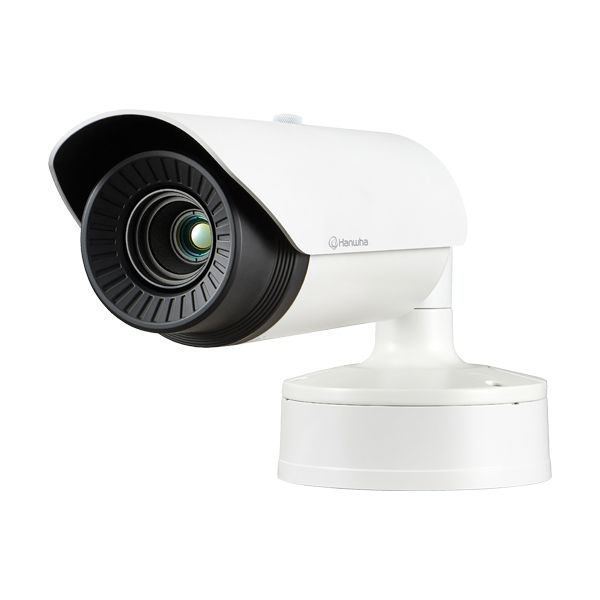

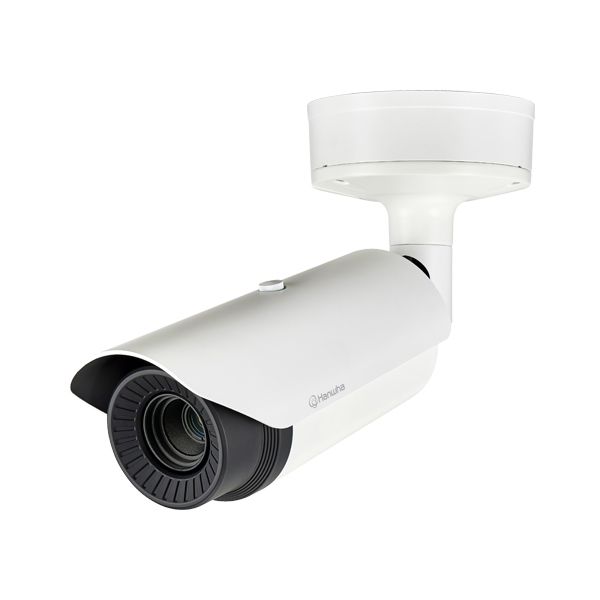

Hanwha Vision HV-TNO-4040TR VGA Thermal Radiometry Camera – 640x480, 19mm Lens, Radiometric Temperature Detection, and Smart Analytics T Series

The Hanwha Vision HV-TNO-4040TR is a reliable VGA-resolution thermal radiometry camera engineered for accurate temperature monitoring and smart threat detection. Featuring a built-in 19mm fixed lens and high thermal sensitivity (<50mK NETD), it enables detailed surveillance in industrial, utility, and critical infrastructure environments.

This thermal camera offers comprehensive analytics including directional motion, temperature threshold alarms, sound classification, and loitering detection. It streams up to 30fps in H.265, H.264, or MJPEG, supports up to 256GB edge storage, and boasts rugged protection with IP66, IK10, and NEMA4X ratings for durability in all weather conditions.

What's Included in the Box:

• Hanwha Vision HV-TNO-4040TR Camera

• Mounting Hardware

• Quick Installation Guide

• Warranty and Compliance Documentation

Main Features:

• Radiometric Detection: Measures temperatures from -20°C to +130°C with ±5°C accuracy up to 100°C.

• VGA Thermal Resolution: 640 x 480 using a 17µm pixel pitch uncooled microbolometer.

• 19mm Fixed Lens: Horizontal field of view: 32°, vertical: 24.3°, diagonal: 39.2°.

• Comprehensive Analytics: Detects motion, temperature anomalies, loitering, tampering, directional activity, and more.

• Video Capabilities: 30fps streaming on all resolutions/codecs with WiseStream II compression.

• Secure Edge Storage: MicroSD slot supporting up to 256GB for local event recording.

• Robust Design: IP66, IK10, and NEMA4X rated aluminum housing for outdoor deployment.

• Flexible Power: Supports PoE (IEEE802.3af), 12VDC, and 24VAC inputs.

Detailed Specifications:

Imaging & Optics:

• Sensor Type: Uncooled microbolometer

• Pixel Pitch: 17µm

• NETD: <50mK

• Lens: 19mm fixed, F1.0

• Field of View: H: 32°, V: 24.3°, D: 39.2°

• Minimum Object Distance: 11m

• Focus: Fixed

Radiometric Monitoring:

• Temperature Range: -20°C to +130°C

• Accuracy: ±5°C (≤100°C), ±20% (>100°C)

• Detection Zones: 3 rectangular ROI zones

• Visualization: Hybrid palettes and spot temperature reading

Video Performance:

• Max Resolution: 640 x 480

• Frame Rate: 30fps (H.265/H.264/MJPEG)

• Codecs: H.265, H.264 (Main/Baseline/High), MJPEG

• Compression Enhancements: WiseStream II, manual ROI

• Bitrate Control: CBR/VBR

Audio Features:

• Input: Selectable mic-in/line-in (2.5VDC)

• Output: Line-out, 1Vrms

• Supported Codecs: G.711, G.726, AAC-LC

Intelligent Analytics:

• Event Types: Motion, directional, appear/disappear, enter/exit, loitering, tampering, virtual line, audio, sound classification, shock detection, temperature monitoring

• Alarm I/O: 1 input / 2 outputs

• Privacy Masking: 32 polygonal zones

Networking & Security:

• Ethernet: RJ-45 (10/100BASE-T)

• Protocols: IPv4/6, HTTPS, SNMP, RTSP, FTP, MQTT, ONVIF S/G/T

• User Access: HTTPS, digest auth, 802.1X, access logging

Storage:

• Edge Storage: MicroSD/SDHC/SDXC (up to 256GB)

Environmental Ratings:

• Operating Temp: -40°C to +60°C

• Humidity: <90% RH

• Protection: IP66 / NEMA4X / IK10

Power Requirements:

• Input: PoE (IEEE802.3af), 12VDC, 24VAC

• Consumption: Max 10.5W

Mechanical:

• Housing: White aluminum (RAL9003)

• Dimensions: Ø101.97 x 309mm

• Weight: 2.45kg

Warranty Information:

Protected by Hanwha Vision’s global warranty and supported locally by certified partners throughout Australia and New Zealand.

Brand Description:

Hanwha Vision is globally recognized for its innovative video surveillance solutions, combining thermal imaging, AI analytics, and cybersecurity to protect people and property across diverse industries.

SKU:

HV-TNO-4040TR

Practical Use Scenarios:

• Industrial safety and equipment overheating detection

• Perimeter surveillance in low-visibility or harsh environments

• Utility and infrastructure monitoring with radiometric alerts

• Transportation hubs with multi-layer threat detection

Datasheets and Downloadable Resources:

• Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market:

Designed for full compliance with AS/NZS CISPR 32 standards and RCM certification, the HV-TNO-4040TR is ideal for installation across Australia and New Zealand. Built with rugged environmental certifications (IP66, NEMA4X, IK10), and distributed via authorized channels, it ensures dependable performance and straightforward warranty support in the region.

FAQs (Product Code: HV-TNO-4040TR)

Q1: What is the temperature detection range of the HV-TNO-4040TR?
A1: It monitors from -20°C to +130°C with ±5°C accuracy under 100°C.

Q2: What resolution does the HV-TNO-4040TR offer?
A2: It provides a VGA resolution of 640 x 480.

Q3: Is the HV-TNO-4040TR compliant with Australian regulations?
A3: Yes, it meets AS/NZS CISPR 32 Class A and holds RCM certification.

Q4: What smart analytics are included in the HV-TNO-4040TR?
A4: It includes motion, tampering, loitering, directional detection, sound classification, and temperature change alerts.

Q5: How is the HV-TNO-4040TR powered?
A5: It supports PoE, 12VDC, and 24VAC inputs, with a maximum consumption of 10.5W.
