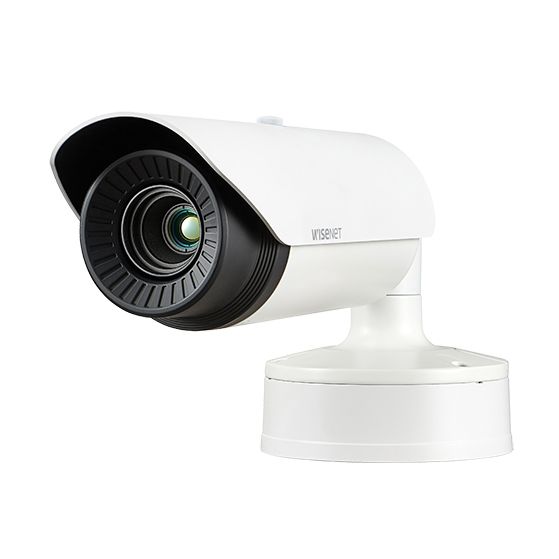

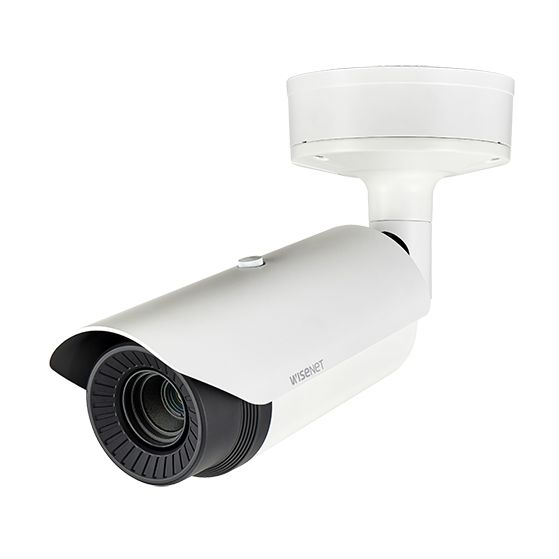

Hanwha Vision HV-TNO-4040T VGA Thermal Camera with 640x480 Resolution, 19mm Fixed Lens, 30FPS, and Multi-Analytics Suite T Series

The Hanwha Vision HV-TNO-4040T delivers dependable thermal imaging performance with a 640x480 VGA resolution and 19mm fixed lens, purpose-built for mission-critical surveillance applications. With robust support for advanced thermal analytics and a frame rate of up to 30fps on all video streams, it is engineered for perimeter defense, industrial safety monitoring, and security in low-visibility conditions.

Enhanced by a rugged IP66, IK10, and NEMA4X-rated housing, the HV-TNO-4040T withstands harsh environments, while its Hallway View and WiseStream II technologies optimize bandwidth efficiency. Its built-in analytics suite includes temperature change detection, shock and audio analysis, and directional monitoring—ideal for proactive threat detection and response.

What's Included in the Box:

• Hanwha Vision HV-TNO-4040T Thermal Camera

• Mounting Accessories

• Installation and Safety Manual

• Regulatory Compliance Documentation

Main Features:

• High-Res VGA Thermal Imaging: 640x480 resolution with <50mK sensitivity via 17µm microbolometer.

• Full Frame Streaming: 30fps support across all resolutions and codecs (H.265, H.264, MJPEG).

• Advanced Thermal Analytics: Includes loitering, directional detection, tampering, audio and shock detection, and temperature change alerts.

• Smart Compression: WiseStream II for efficient bandwidth management.

• Two-Way Audio: Supports G.711, G.726, and AAC-LC codecs via mic-in and line-out.

• Built to Last: Aluminum housing with IP66, IK10, and NEMA4X certifications.

• Power Flexibility: Supports PoE, 12V DC, and 24V AC.

Detailed Specifications:

Camera:

• Imaging Sensor: Uncooled microbolometer, 17μm

• Effective Pixels: 640 x 480

• NETD: <50mK

Lens & FoV:

• Lens: 19mm Fixed, F1.0

• FoV: H: 32°, V: 24.3°, D: 39.2°

• Min. Object Distance: 11m

Video:

• Codecs: H.265, H.264 (Baseline/Main/High), MJPEG

• Resolutions: 640x480, 640x360, 320x240

• Frame Rate: 30fps max (all formats)

• Streaming: Up to 10 profiles

• WiseStream II: Supported

Audio:

• Input: Mic-in/Line-in (2.5V DC)

• Output: Line-out (Max 1 Vrms)

• Codecs: G.711, G.726, AAC-LC

• Two-Way Audio: Supported

Analytics:

• Events: Motion, loitering, tampering, directional detection, audio and shock detection, temperature change detection, sound classification

• Zones: 8 polygonal motion zones, 32 privacy masking zones

• Alarm I/O: 1 input, 2 outputs

Networking:

• Ethernet: RJ-45 (10/100 BASE-T)

• Protocols: IPv4/IPv6, HTTPS, RTSP, MQTT, ONVIF S/G, SUNAPI

• Streaming Modes: Unicast/Multicast (up to 20 users)

Edge Storage:

• MicroSD/SDHC/SDXC: Up to 256GB

• NAS and Local PC recording supported

Power & Environment:

• Power Input: 12V DC, 24V AC, PoE (IEEE802.3af)

• Power Consumption: Max 10.5W

• Operating Temp: -40°C to +60°C

• IP Rating: IP66 / NEMA4X / IK10

Mechanical:

• Dimensions: Ø101.97 x 401.8 mm

• Weight: 3.13 kg

• Housing Color: White (RAL 9003), Aluminum

Warranty Information:

Supported by Hanwha Vision's manufacturer warranty, with local service and warranty processing available through certified partners across Australia and New Zealand.

Brand Description:

Hanwha Vision leads the security market with next-generation thermal and surveillance technologies, combining robust engineering and AI-powered analytics for high-value, real-time threat detection in sensitive applications.

SKU:

HV-TNO-4040T

Practical Use Scenarios:

• Industrial perimeter monitoring under harsh weather or low-light conditions.

• Infrastructure protection through directional and temperature change detection.

• Intelligent intrusion prevention in critical outdoor facilities.

• Monitoring of large areas where visual surveillance is not feasible.

Datasheets and Downloadable Resources:

• Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market:

Compliant with RCM and AS/NZS CISPR 32 Class A standards, the HV-TNO-4040T is optimized for environmental durability in Australian and New Zealand conditions. IP66, NEMA4X, and IK10 certifications ensure long-term performance, with local availability through certified distribution networks supporting seamless warranty and logistics.

 FAQs (Product Code: HV-TNO-4040T)

Q1: What resolution and frame rate does the HV-TNO-4040T support?
A1: It supports VGA resolution (640x480) and up to 30 frames per second for all codecs including H.265 and H.264.

Q2: Does the HV-TNO-4040T offer audio and shock detection?
A2: Yes, it includes both audio detection and shock detection as part of its analytics suite.

Q3: Is the HV-TNO-4040T compliant with Australian standards?
A3: Yes, it complies with RCM and AS/NZS CISPR 32 Class A standards and is IP66, NEMA4X, and IK10 certified.

Q4: Can the HV-TNO-4040T record to local storage?
A4: Yes, it includes a MicroSD slot supporting up to 256GB for local event or continuous recording.

Q5: What power options does the HV-TNO-4040T support?
A5: The camera operates on PoE, 24V AC, or 12V DC, offering flexibility in deployment environments.
