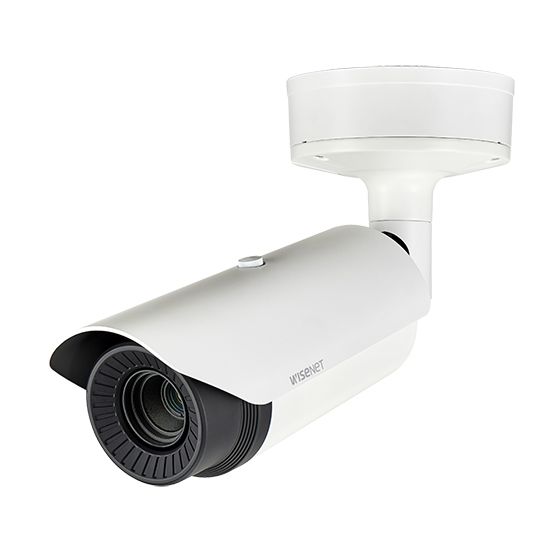

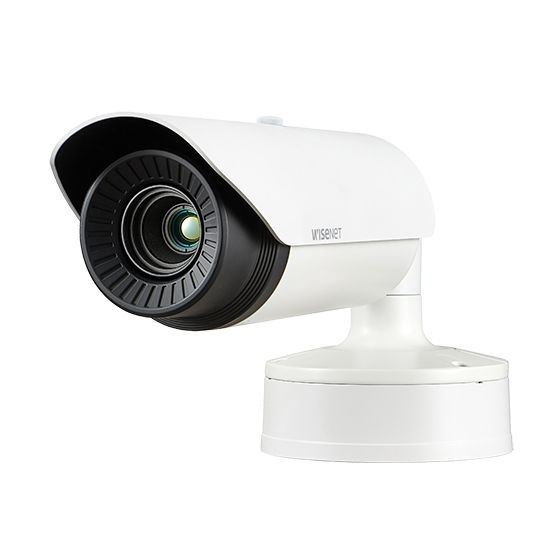

Hanwha Vision HV-TNO-4030T VGA Thermal Camera with 13mm Fixed Lens, Full Thermal Analytics, and 30FPS Streaming T Series

The Hanwha Vision HV-TNO-4030T is a compact, high-sensitivity VGA thermal camera equipped with a 13mm fixed lens and full 640x480 resolution. Ideal for infrastructure protection and industrial safety monitoring, it supports 30FPS thermal video and is equipped with powerful video and audio analytics including motion, directional, and sound classification, as well as temperature change detection.

Its rugged IP66, IK10, and NEMA4X ratings ensure reliable operation in harsh outdoor environments, while its advanced video compression (H.265/H.264/MJPEG) and WiseStreamII optimize bandwidth and storage. With PoE and dual power options, it integrates smoothly into existing security infrastructures.

What's Included in the Box:

• Hanwha Vision HV-TNO-4030T Thermal Camera

• Mounting Hardware

• Quick Installation Guide

• Regulatory & Compliance Documents

Main Features:

• VGA Thermal Imaging: 640x480 effective resolution via 17µm microbolometer with <50mK NETD.

• Lens: 13mm fixed lens with 48.6° horizontal FoV.

• Frame Rate: Supports up to 30fps across all resolutions and formats.

• Intelligent Analytics: Includes motion, tampering, loitering, directional detection, sound classification, shock detection, and temperature change detection.

• Audio Support: Two-way audio with selectable mic/line-in and line-out, G.711, G.726, AAC-LC codecs.

• Smart Compression: WiseStreamII support for bandwidth optimization.

• Edge Storage: MicroSD/SDHC/SDXC up to 256GB with FTP and NAS recording options.

Detailed Specifications:

Thermal Imaging:

• Sensor: Uncooled microbolometer

• Pixel Size: 17μm

• Resolution: 640 x 480

• NETD: <50mK

Lens & Field of View:

• Focal Length: 13mm Fixed, F1.0

• FoV: H: 48.6°, V: 36.4°, D: 61.6°

• Minimum Object Distance: 5m

Video:

• Codecs: H.265, H.264 (Main/Baseline/High), MJPEG

• Max Frame Rate: 30fps (all codecs/resolutions)

• Streaming: Up to 10 profiles (unicast/multicast)

• Image Enhancements: Digital Image Stabilization (gyro sensor), Hallway View (90°/270°)

Audio:

• Input: Mic/Line-in (2.5V DC)

• Output: Line-out (Max 1Vrms)

• Codecs: G.711, G.726, AAC-LC

• Two-way Audio: Supported

Analytics & Detection:

• Events: Motion, Loitering, Tampering, Audio, Shock, Directional Detection, Sound Classification, Temperature Change Detection

• Privacy Zones: 32 polygonal

• Motion Zones: 8 polygonal

• Alarm I/O: 1 input / 2 outputs

Networking:

• Interface: RJ-45 (10/100 BASE-T)

• Protocols: IPv4/IPv6, HTTPS, SNMP, RTP, RTSP, MQTT, ONVIF S/G, SUNAPI

• Max Users: 20

Storage:

• Local: MicroSD/SDHC/SDXC (up to 256GB)

• NAS & PC Recording: Supported

Mechanical & Environmental:

• Dimensions: Ø101.97 x 401.8mm

• Weight: 3.12kg

• Housing: White Aluminum (RAL9003)

• Operating Temp: -40°C to +60°C

• Ingress Protection: IP66 / NEMA4X

• Vandal Resistance: IK10

Power:

• Input: 12V DC, 24V AC, PoE (IEEE802.3af)

• Max Power: 10.5W

Warranty Information:

The HV-TNO-4030T is backed by Hanwha Vision's global manufacturer warranty and is eligible for service through certified partners in Australia and New Zealand.

Brand Description:

Hanwha Vision (formerly Hanwha Techwin) is a trusted name in security technologies, offering advanced thermal imaging and AI analytics designed to deliver comprehensive situational awareness in the most demanding environments.

SKU:

HV-TNO-4030T

Practical Use Scenarios:

• Utility infrastructure surveillance where visual monitoring is limited.

• Industrial safety environments requiring temperature event detection.

• Outdoor perimeters exposed to fog, darkness, or harsh weather.

• High-risk zones needing real-time motion and sound analytics.

Datasheets and Downloadable Resources:

• Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market:

Fully certified for the Australian and New Zealand region, the HV-TNO-4030T meets RCM and AS/NZS CISPR 32 Class A standards. Its robust design ensures long-term performance under harsh ANZ environmental conditions. This model is distributed through authorized channels, ensuring warranty support and compliance assurance.

 FAQs (Product Code: HV-TNO-4030T)

Q1: What resolution and frame rate does the HV-TNO-4030T support?
A1: The HV-TNO-4030T delivers 640x480 resolution with up to 30 frames per second on all codecs.

Q2: Is the HV-TNO-4030T equipped for temperature event detection?
A2: Yes, it includes temperature change detection along with advanced motion and audio analytics.

Q3: Does the HV-TNO-4030T meet ANZ compliance requirements?
A3: Yes, it meets RCM standards and complies with AS/NZS CISPR 32 Class A regulations.

Q4: How is audio handled by the HV-TNO-4030T?
A4: It supports two-way audio with selectable mic/line input and line-out, using G.711, G.726, and AAC-LC codecs.

Q5: What power options are available for the HV-TNO-4030T?
A5: The camera supports PoE, 12V DC, and 24V AC, offering installation flexibility.
