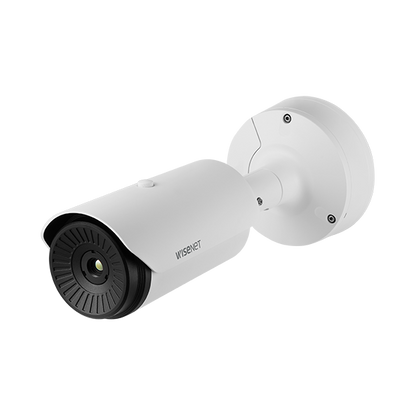

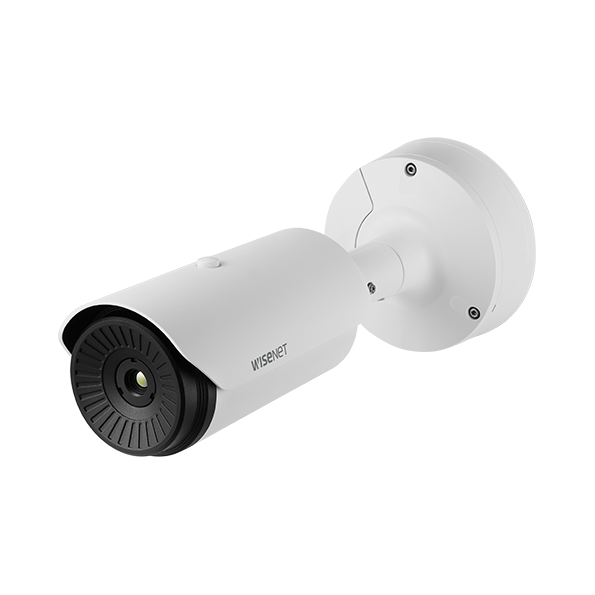

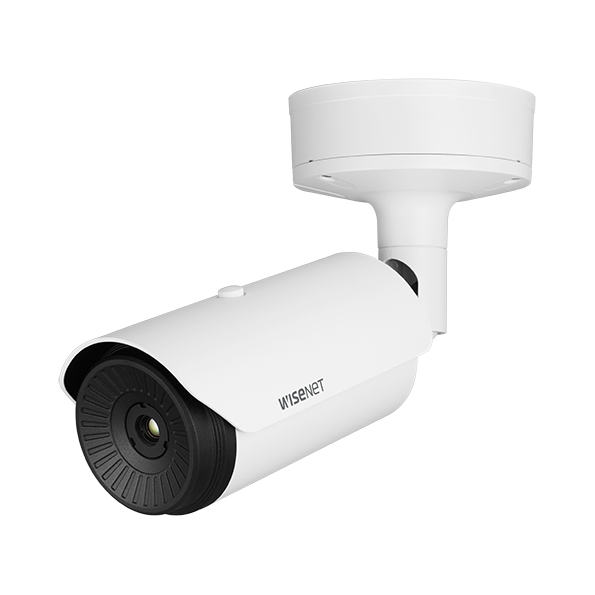

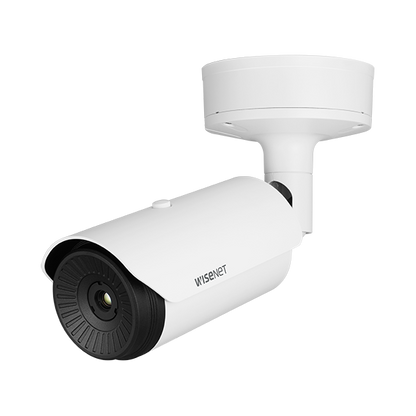

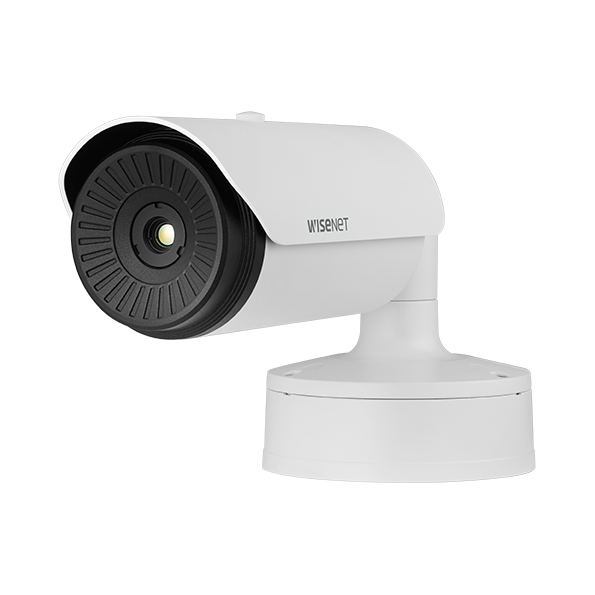

Hanwha Vision HV-TNO-3020T QVGA Thermal Network Camera – 320×240 Resolution, Advanced Analytics, IP66/NEMA4X, IK10 Rated T Series

The Hanwha Vision HV-TNO-3020T is a robust thermal imaging camera, purpose-built for precise temperature detection and high-reliability perimeter surveillance in industrial, critical infrastructure, and safety applications. This model features a QVGA thermal sensor offering 320 × 240 resolution and a built-in 4.7mm fixed lens with a 50° horizontal field of view—ideal for medium-range thermal monitoring where broader situational awareness is critical.

Its uncooled micro bolometer sensor delivers <60mK thermal sensitivity, ensuring excellent detection even in challenging environmental conditions. The HV-TNO-3020T is equipped with comprehensive analytics, including directional detection, virtual line crossing, loitering detection, audio detection, and sophisticated sound classification for proactive security operations.

The camera supports H.265, H.264, and MJPEG compression formats, plus WiseStream II technology to minimize bandwidth consumption without compromising image quality. Its rugged housing is IP66, IK10, and NEMA4X certified, ensuring reliable performance in harsh outdoor or industrial environments.

The HV-TNO-3020T also offers flexible power options (PoE, 12VDC, 24VAC) and includes a microSD slot supporting up to 256GB of onboard storage, enabling local recording and redundancy for mission-critical deployments.

Perfect for security professionals seeking an intelligent thermal solution for safety, monitoring, and industrial processes.

What’s Included

• HV-TNO-3020T Thermal Camera Unit

• Mounting Hardware

• User Documentation

Main Features

• Thermal Resolution: 320 × 240 QVGA

• Lens: 4.7mm fixed, F1.0 aperture

• Field of View:

  • Horizontal: 50.0°

  • Vertical: 36.4°

  • Diagonal: 65.3°

• Sensor Type: Uncooled micro bolometer

• Thermal Sensitivity (NETD): <60mK

• Minimum Object Distance: 1 meter (3.28 ft)

• Frame Rate: Up to 30 fps (H.265, H.264, MJPEG)

• Smart Analytics:

  • Directional detection

  • Motion detection

  • Appear/Disappear

  • Enter/Exit

  • Loitering detection

  • Tampering

  • Virtual line detection

  • Audio detection and sound classification

  • Shock detection

  • Temperature detection

• Color Palettes: Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

• Video Compression: H.265, H.264, MJPEG

• WiseStream II Smart Compression: Efficiently reduces bandwidth

• Privacy Masking: Up to 32 polygonal zones

• Edge Storage: Micro SD/SDHC/SDXC slot, max. 256GB

• Power Options: PoE (IEEE 802.3af), 12VDC, 24VAC

• Ingress Protection: IP66, NEMA4X

• Vandal Rating: IK10

• Operating Temperature: –40°C to +60°C

Specifications

Warranty Information

Hanwha Vision offers a 3-year limited warranty covering manufacturing defects and hardware failures under normal operating conditions. Extended warranty options may be available through authorized distributors.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global innovator in video surveillance technologies, renowned for delivering advanced solutions for industrial, commercial, and government applications worldwide.

SKU: HV-TNO-3020T

Practical Use Scenarios

• Fire risk detection and early warning in industrial facilities

• Thermal perimeter security in critical infrastructure sites

• Condition monitoring for electrical or mechanical assets

• Surveillance in smoke-obscured or low-visibility areas

• Industrial process monitoring for heat anomalies

Datasheets & Resources

• Download Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The HV-TNO-3020T meets rigorous standards required for use in Australia and New Zealand, including IP66, NEMA4X, and IK10 ratings, making it well-suited for demanding local conditions. Distributed through authorized Hanwha Vision partners, the camera is backed by local support for warranty claims and technical assistance, ensuring peace of mind for integrators and end-users across ANZ industries.

FAQs (SKU: HV-TNO-3020T)

Q1: Does the HV-TNO-3020T support temperature measurement?
A1: Yes, it includes temperature detection capabilities for industrial and safety applications.

Q2: Can this camera be used outdoors?
A2: Yes, it’s IP66 and NEMA4X rated for harsh outdoor conditions.

Q3: What is the minimum detection distance for this model?
A3: The minimum object distance is 1 meter due to the 4.7mm lens focal length.

Q4: Is this camera compatible with third-party VMS solutions?
A4: Absolutely. It supports ONVIF Profiles S/G/T and Wisenet open platform for broad integration.

Q5: Does the HV-TNO-3020T offer onboard recording?
A5: Yes, it has a microSD slot supporting up to 256GB for edge storage.
