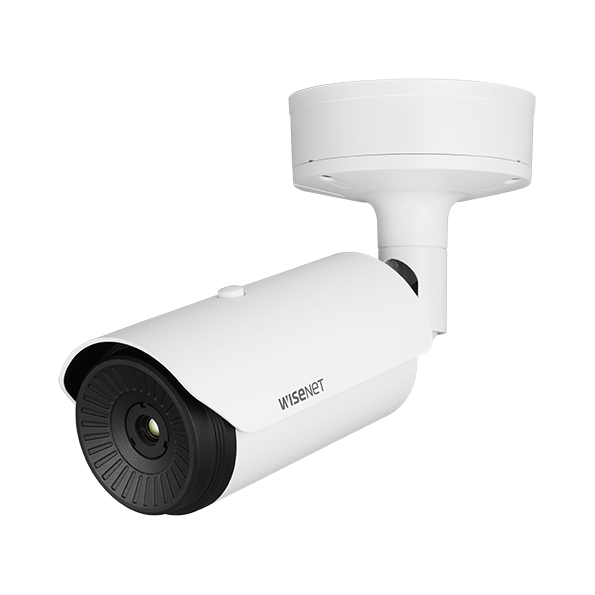

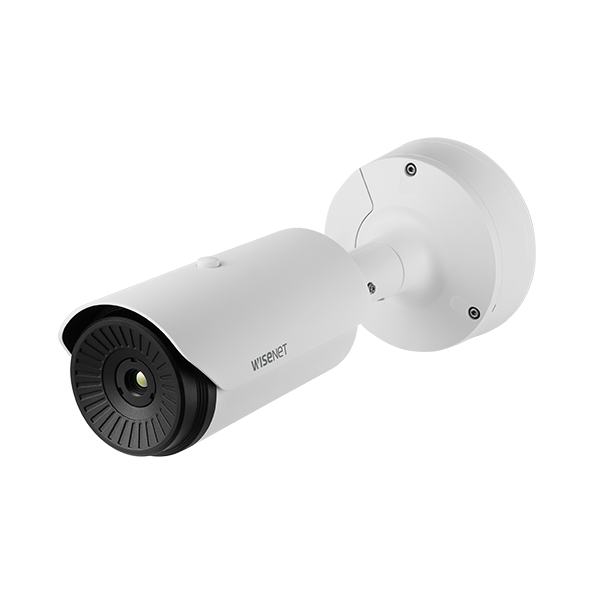

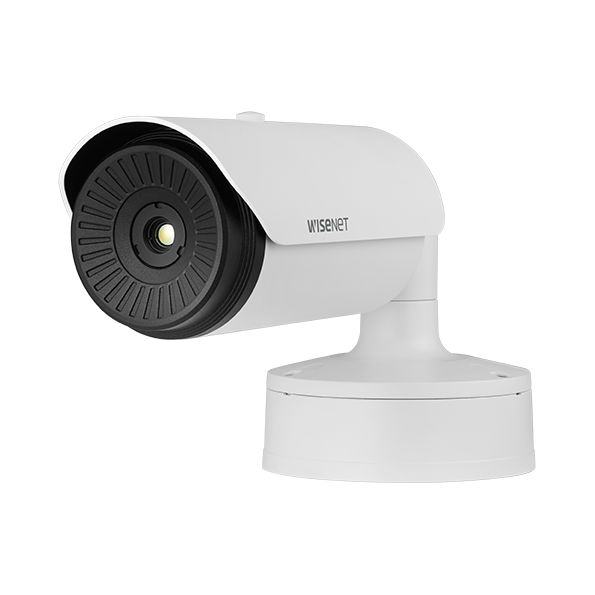

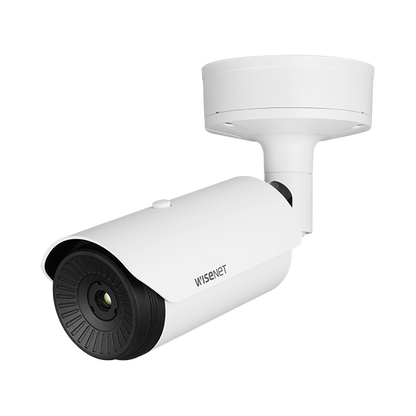

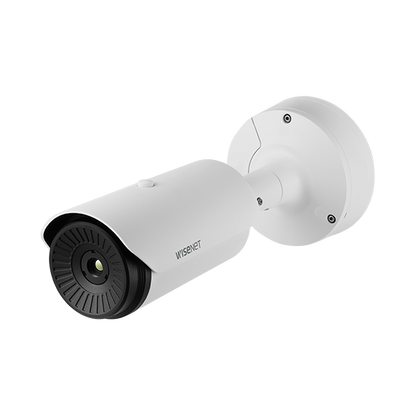

Hanwha Vision HV-TNO-3010T QVGA Thermal Network Camera – 320×240 Resolution, Temperature Detection, IP66, IK10 Rated T Series

The Hanwha Vision HV-TNO-3010T is a powerful thermal imaging camera designed for accurate temperature detection and advanced perimeter monitoring. Featuring a QVGA thermal sensor with 320 × 240 resolution, this camera delivers clear thermal imagery for critical applications such as industrial safety, fire detection, perimeter security, and facility monitoring.

Equipped with a 2.7mm fixed lens providing a wide 92° horizontal field of view, the HV-TNO-3010T excels in close-range thermal monitoring. The uncooled micro bolometer sensor and <60mK thermal sensitivity ensure precise detection even under challenging conditions. The camera supports advanced analytics like motion detection, virtual line crossing, loitering, temperature monitoring, and audio/sound classification, delivering actionable insights for proactive security operations.

Built to withstand harsh environments, the HV-TNO-3010T boasts IP66 and NEMA4X certifications for water and dust protection, and IK10-rated vandal resistance. With flexible power options (PoE, 12VDC, 24VAC) and advanced H.265/H.264 compression technologies, it combines high performance with reduced bandwidth and storage costs. Edge recording support with a microSD slot up to 256GB makes it suitable for stand-alone installations where continuous network connectivity may not be guaranteed.

This thermal camera is a versatile solution for professionals seeking reliable thermal imaging for security and industrial applications.

What’s Included

• HV-TNO-3010T Thermal Camera Unit

• Mounting Hardware

• User Documentation

Main Features

• Thermal Resolution: 320 × 240 QVGA

• Lens: 2.7mm fixed focal length, F1.0

• Field of View:

  • Horizontal: 92.0°

  • Vertical: 65.5°

  • Diagonal: 125.7°

• Sensor Type: Uncooled micro bolometer

• Thermal Sensitivity (NETD): <60mK

• Temperature Detection: Yes

• Frame Rate: Up to 30 fps (H.265/H.264/MJPEG)

• Smart Analytics:

  • Motion detection

  • Virtual line detection

  • Appear/disappear

  • Enter/exit

  • Loitering

  • Tampering

  • Audio detection and sound classification

  • Shock detection

• Color Palettes: Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

• Video Compression: H.265, H.264, MJPEG

• WiseStream II Smart Compression: Reduces bandwidth while maintaining image quality

• Privacy Masking: Up to 32 polygonal zones

• Power Options: PoE, 12VDC, or 24VAC

• Edge Storage: microSD/SDHC/SDXC slot up to 256GB

• Ingress Protection: IP66, NEMA4X

• Vandal Rating: IK10

• Operating Temperature: –40°C to +60°C

Specifications

Warranty Information

Hanwha Vision offers a 3-year limited warranty covering defects in materials and workmanship under normal use conditions. Extended warranties may be available through authorized distribution partners.

Brand Description

Hanwha Vision (formerly Hanwha Techwin) is an industry leader in innovative video surveillance solutions. With a focus on advanced analytics and high-performance imaging, Hanwha Vision delivers security solutions trusted by professionals around the globe.

SKU: HV-TNO-3010T

Practical Use Scenarios

• Industrial temperature monitoring in manufacturing facilities

• Early fire detection in warehouses and chemical storage areas

• Perimeter security for critical infrastructure and utilities

• Surveillance in low-visibility environments (fog, smoke, darkness)

• Condition monitoring of electrical and mechanical equipment

Datasheets & Resources

• Download Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The HV-TNO-3010T meets stringent standards for durability and performance required in the Australian and New Zealand markets. Its IP66, NEMA4X, and IK10 ratings ensure reliable operation in harsh environments, making it ideal for critical infrastructure, mining, transportation, and industrial sectors across the ANZ region. Distributed exclusively through authorized Hanwha Vision partners, all warranty and support services are handled locally for fast and reliable customer service.

FAQs (SKU: HV-TNO-3010T)

Q1: Does the HV-TNO-3010T support temperature detection?
A1: Yes, it offers precise temperature detection and monitoring features, ideal for safety and industrial applications.

Q2: Can this camera be used in outdoor environments?
A2: Absolutely. It’s IP66, NEMA4X, and IK10 certified, ensuring robust protection against water, dust, and vandalism.

Q3: What is the minimum detection distance for this camera?
A3: The minimum object distance is approximately 0.3 meters for the 2.7mm lens model.

Q4: Is the HV-TNO-3010T compatible with third-party VMS platforms?
A4: Yes, it supports ONVIF Profiles S/G/T, SUNAPI, and Wisenet Open Platform for wide integration flexibility.

Q5: Does the camera offer onboard recording?
A5: Yes, it features a microSD slot supporting up to 256GB for local edge storage.
