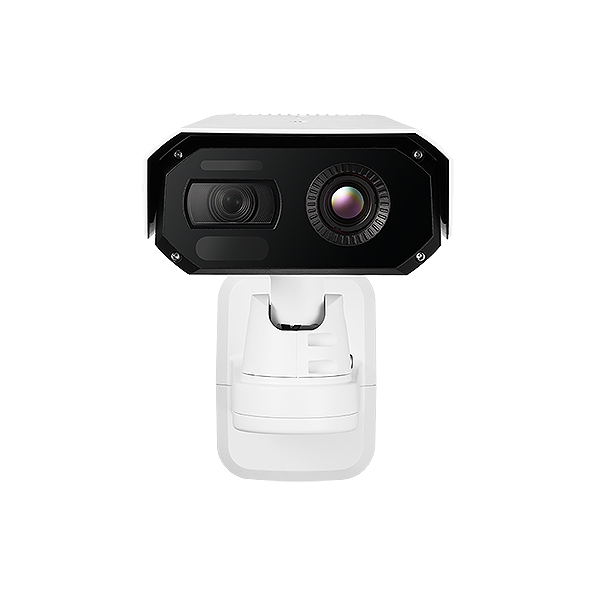

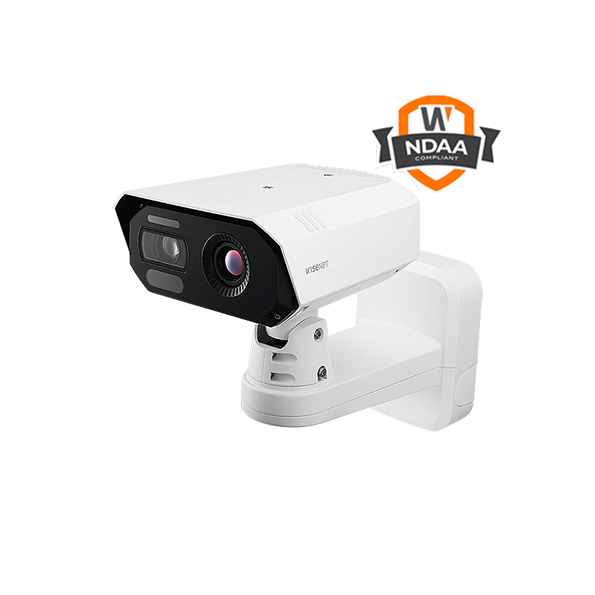

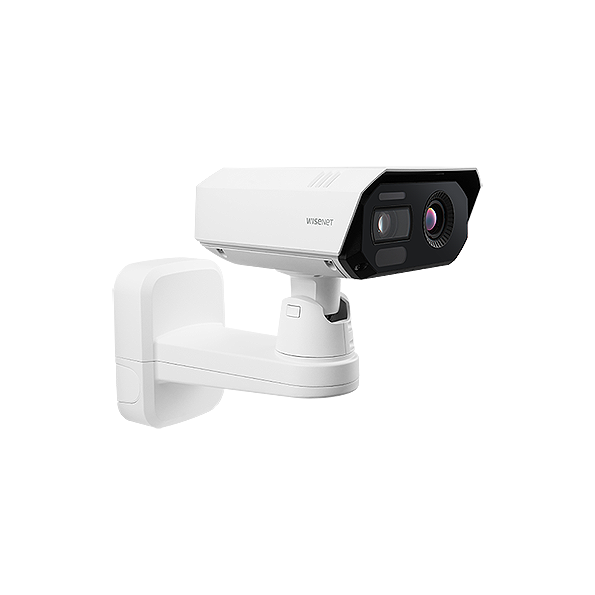

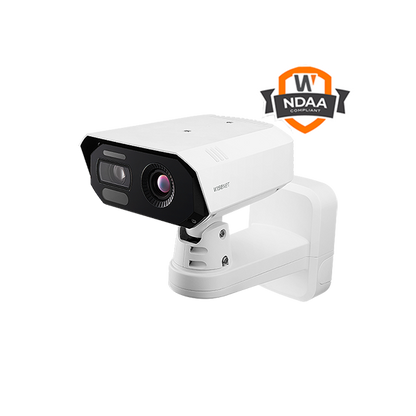

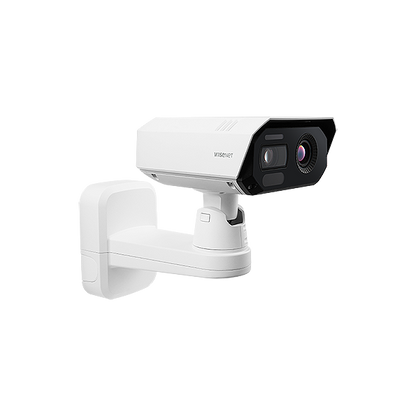

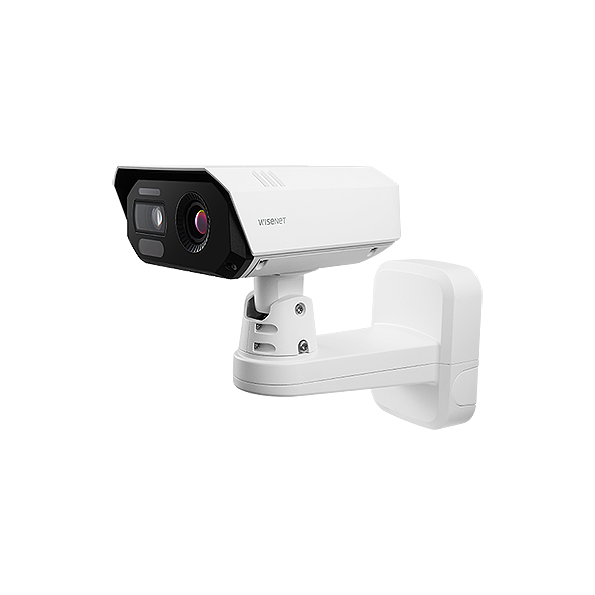

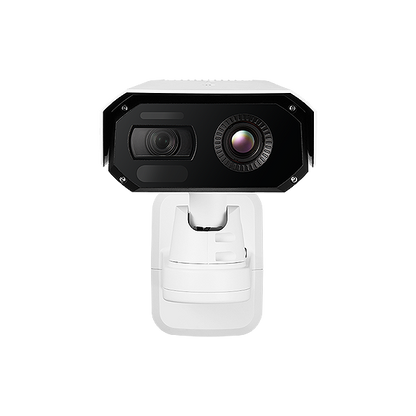

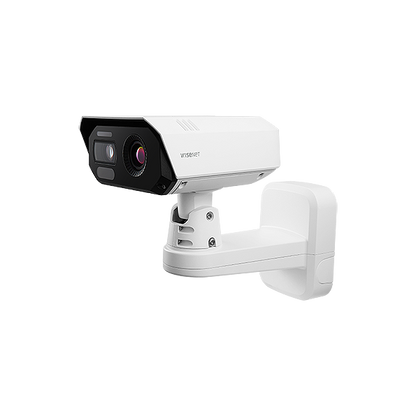

Hanwha Vision HV-TNM-C4950TD Bi-spectrum AI Thermal Camera – Dual Thermal & Visible Imaging, AI Analytics, IP66/IK10 T Series

The Hanwha Vision HV-TNM-C4950TD represents the pinnacle of thermal and visible surveillance integration, delivering unmatched situational awareness and precision analytics in one robust solution. Combining a VGA thermal sensor with an 8MP visible CMOS sensor, this bi-spectrum AI camera empowers security professionals with accurate detection and classification of people, vehicles, license plates, and more—even in complete darkness or challenging weather conditions.

Thanks to dual-channel streaming via a single IP address, operators gain synchronized thermal and visible views for efficient monitoring and forensic analysis. With advanced AI-based video analytics, WiseNR II noise reduction, and WiseStream III compression, the TNM-C4950TD ensures exceptional image clarity and efficient bandwidth utilization. Built with industrial-grade durability, it withstands extreme environments, making it ideal for perimeter security, critical infrastructure, industrial sites, and large-scale facilities.

What’s Included

• Hanwha Vision HV-TNM-C4950TD Bi-spectrum AI Thermal Camera

• Mounting accessories (wall/pole mount all-in-one design)

• User Documentation

Main Features

• Bi-spectrum Imaging: Simultaneous VGA thermal and 8MP visible channels

• Dual Channel via One Device: Streams both thermal and visible video over a single IP address

• High Resolution Video: Up to 30fps at all supported resolutions

• Thermal Lens: 13.5mm fixed focal length with 31.9° horizontal FOV

• Visible Lens: 10.9~29mm motorized varifocal with 42°~15° horizontal FOV

• Low-light Performance: Visible sensor minimum illumination down to 0.005 Lux (B/W mode)

• Wide Dynamic Range: 120dB for visible channel

• Advanced AI Analytics: Intelligent object detection for people, vehicles, license plates, intrusion, and more

• Noise Reduction: WiseNR II (AI-powered noise reduction for visible channel)

• Smart Compression: WiseStream III (visible) and WiseStream II (thermal)

• Audio Support: Mic/line input and audio output with G.711, G.726, and AAC-LC codecs

• Edge Storage: Dual MicroSD slots (up to 512GB each)

• Robust Build: IP66/IP67, NEMA4X, IK10-rated aluminum housing

• Temperature Range: Operates from -40°C to +60°C

• Security: TPM 2.0, secure boot, secure firmware, HTTPS authentication

• Versatile Installation: Wall & pole mount design included

Detailed Specifications

Warranty Information

Hanwha Vision provides a standard 3-year warranty for the HV-TNM-C4950TD, covering defects in materials and workmanship under normal use. Extended warranties may be available via authorized distributors.

Brand Description

Hanwha Vision, formerly Hanwha Techwin, is a global leader in advanced surveillance solutions, recognized for its innovative technology and high-quality video products serving commercial, industrial, and government applications worldwide.

SKU: HV-TNM-C4950TD

Practical Use Scenarios

• Perimeter security for airports, seaports, and critical infrastructure

• Border surveillance and high-security government facilities

• Industrial and utility sites requiring thermal anomaly detection

• Transportation hubs needing AI-enhanced monitoring

• Large-scale commercial sites demanding dual-spectrum analytics

Datasheets & Resources

• Download Datasheet - PDF

Excellence for the Australian and New Zealand Market

The HV-TNM-C4950TD meets rigorous Australian and New Zealand quality and performance standards, including RCM compliance and robust environmental ratings (IP66, IP67, NEMA4X, IK10). Available exclusively through authorized Hanwha Vision partners, this camera ensures reliable performance and local warranty support across the ANZ region.

FAQs (SKU: HV-TNM-C4950TD)

Q1: What is a bi-spectrum camera?
A1: A bi-spectrum camera combines thermal and visible sensors in one device, providing simultaneous thermal imaging for temperature anomalies and high-resolution visible video for detailed surveillance.

Q2: How far can the TNM-C4950TD detect objects?
A2: In thermal mode, it can detect vehicles or people up to ~583m (Tele view), depending on the target and environmental conditions.

Q3: Does this camera support AI analytics?
A3: Yes, it includes AI-based object detection, intrusion detection, and various intelligent analytics on the visible channel.

Q4: What power options are available for this camera?
A4: The camera supports PoE+ or a 12VDC power supply.

Q5: Is the TNM-C4950TD suitable for extreme weather?
A5: Absolutely—it operates between -40°C and +60°C, with an IP66/IP67 rating for water and dust protection.
