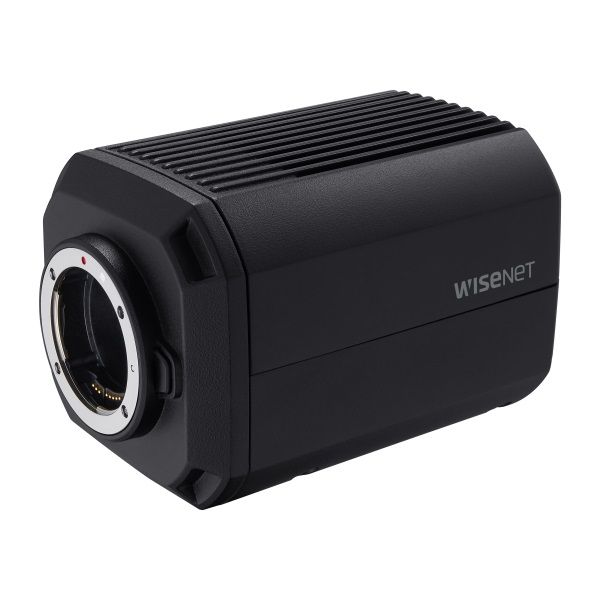

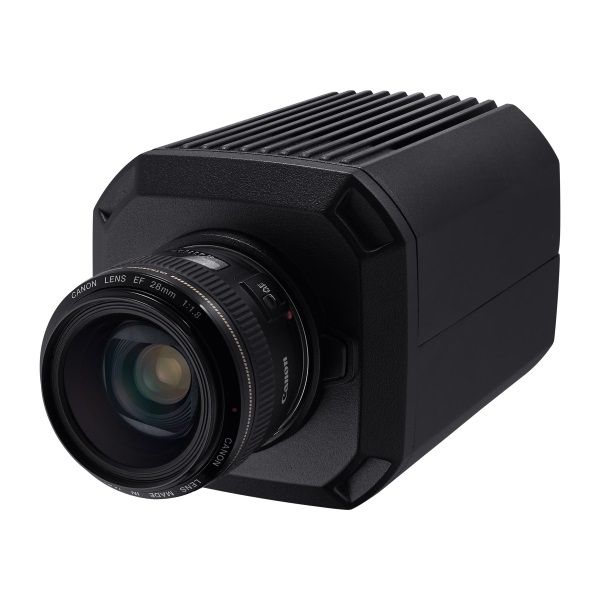

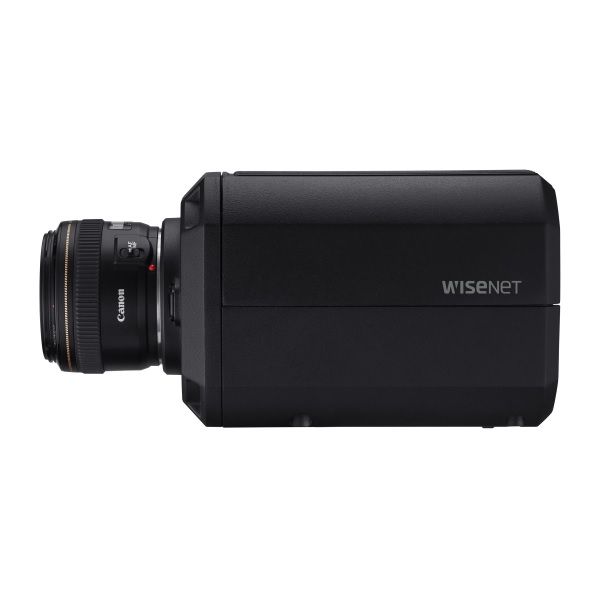

Hanwha Vision HV-TNB-9000 8K AI Network Box Camera – Canon EF Lens Compatible, HDMI Output, AI Analytics T Series

Experience groundbreaking video surveillance clarity and intelligent analytics with the Hanwha Vision HV-TNB-9000. This powerful 8K network box camera is engineered with a full-frame 43.3mm CMOS sensor, delivering extraordinary image quality and detail for critical applications. Featuring advanced AI-driven analytics, it can detect and classify people, vehicles, license plates, and more, transforming raw video into actionable insights.

The HV-TNB-9000 supports Canon EF mount lenses, offering unmatched flexibility to choose optics for diverse scenes and distances. It also outputs HDMI video in 1080p for easy local monitoring and integrates seamlessly into IP-based systems with support for ONVIF S/G/T, and Hanwha’s SUNAPI for advanced integrations.

Whether deployed for city surveillance, high-security sites, or specialized industrial monitoring, the HV-TNB-9000 is a state-of-the-art solution combining superior resolution, AI intelligence, and robust design.

What’s Included:

• HV-TNB-9000 Network Box Camera (Lens not included)

• User Documentation

• Installation Hardware

• Quick Start Guide

Main Features:

• Ultra-high resolution: up to 8K (7680 × 4320) at 15fps

• Full-frame 43.3mm CMOS sensor for superior image quality

• Compatible with Canon EF mount lenses for flexible field of view

• HDMI video output (1080p at 30fps) for local display

• AI-based analytics: object detection/classification, attributes, BestShot, directional detection, virtual line, and more

• Multiple resolutions supported: 8K, 24MP, 15MP, 4K, and lower

• DWDR (Digital Wide Dynamic Range)

• Low-light performance: 0.015 Lux (Color), 0.0015 Lux (B/W)

• Built-in WiseStream II for efficient bandwidth and storage use

• Motion detection and privacy masking

• RS-485 serial interface (Samsung-T, Pelco-D/P)

• MicroSD slot supporting up to 256GB for edge storage

• HPoE (IEEE802.3bt Class 5) or 12VDC power options

• Robust aluminum housing

Specifications:

• Imaging Sensor: 43.3mm Full-frame CMOS

• Effective Pixels: 7680(H) × 4320(V)

• Video Compression: H.265, H.264 (Main/High), MJPEG

• Frame Rates: Up to 15fps @ 8K, 20fps @ 24MP, 30fps @ 15MP, 60fps @ 4K

• Minimum Illumination: Color: 0.015 Lux @ F1.4, B/W: 0.0015 Lux @ F1.4

• Lens Mount: Canon EF mount (lens not included)

• Network Interfaces: RJ-45 10/100/1000BASE-T, SFP slot

• Power: HPoE or 12VDC

• Power Consumption: Max. 30W PoE, typical 20W; Max. 26W DC, typical 18W

• Dimensions (W × H × D): 120 × 118.1 × 179 mm

• Weight: 2.1 kg

• Operating Temperature: 0°C ~ +45°C

• Certifications: FCC, UL, EN standards

Compatible Canon EF Lenses Include:

• EF 24mm f/1.4L II USM

• EF 35mm f/1.4L II USM

• EF 50mm f/1.4 USM

• EF 85mm f/1.2L II USM

• EF 100mm f/2 USM

• EF 70-200mm f/2.8L USM (requires lens bracket)
  …and others

Warranty:

Hanwha Vision provides a standard 3-year warranty for the HV-TNB-9000, covering manufacturing defects under normal use. Extended warranty options may be available through authorized distributors.

Brand Description:

Hanwha Vision, formerly Hanwha Techwin, is a globally recognized leader in innovative video surveillance solutions. With cutting-edge AI analytics and premium hardware, Hanwha Vision delivers high-performance security products trusted across industries, from smart cities to critical infrastructure.

SKU: HV-TNB-9000

Practical Use Scenarios:

• High-resolution city surveillance for wide-area coverage

• Traffic monitoring and vehicle analytics using advanced object detection

• Stadiums or venues requiring ultra-high-resolution video capture

• Industrial process monitoring in critical environments

• Government and defense facilities demanding precision and security

Datasheets & Resources:

• Download Datasheet - PDF

Excellence for the Australian and New Zealand Market:

The HV-TNB-9000 meets rigorous standards required in Australia and New Zealand, including compliance with RCM (AS/NZS CISPR 32 Class A) and environmental certifications. Exclusively distributed through authorized Hanwha Vision partners, the camera is backed by Hanwha’s local support and warranty services for peace of mind. Ideal for diverse applications from smart cities to high-security infrastructure, the HV-TNB-9000 is engineered for the demands of ANZ projects.

FAQs (SKU: HV-TNB-9000):

Q1: What lenses can I use with the HV-TNB-9000?
A1: The HV-TNB-9000 supports Canon EF mount lenses, including popular models like EF 24mm f/1.4L II USM, EF 35mm f/1.4L II USM, EF 50mm f/1.4 USM, and EF 70-200mm f/2.8L USM.

Q2: What is the maximum resolution and frame rate?
A2: It can capture 8K video (7680 x 4320) at up to 15fps, 24MP at 20fps, 15MP at 30fps, and 4K at 60fps.

Q3: Does the HV-TNB-9000 support edge storage?
A3: Yes, it includes a MicroSD slot supporting up to 256GB for local recording.

Q4: Can I connect this camera directly to an HDMI monitor?
A4: Absolutely—it offers HDMI output at 1080p/30fps for direct local monitoring.

Q5: Is the HV-TNB-9000 suitable for outdoor installation?
A5: While robust, it is designed mainly as an indoor or controlled-environment camera due to its operating temperature range and housing style. Additional protective enclosures would be needed for harsh outdoor conditions.
