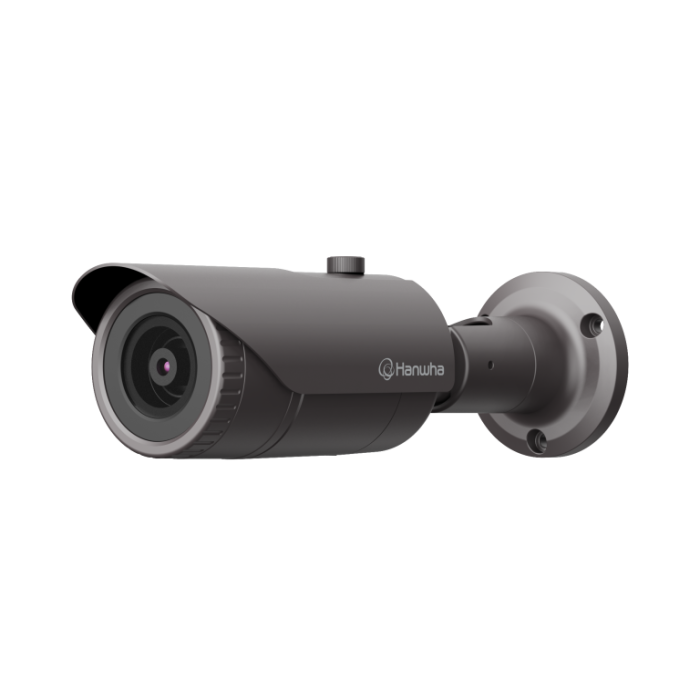

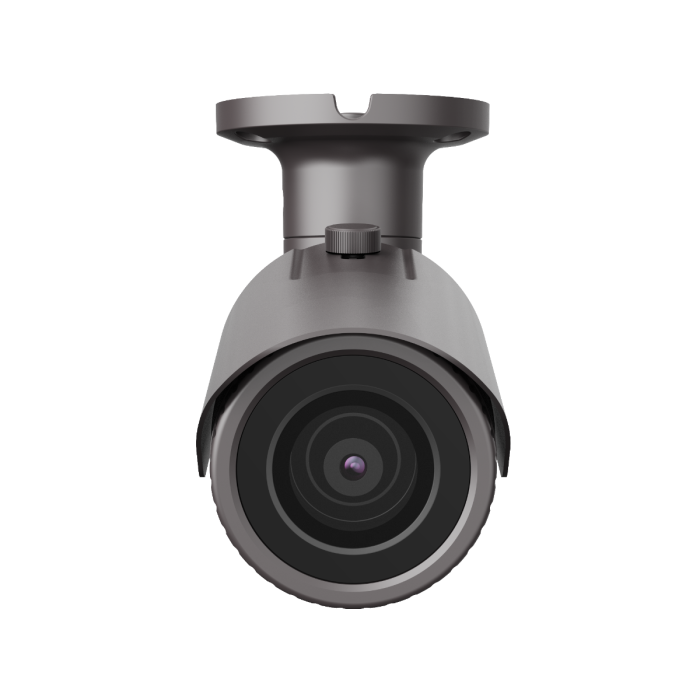

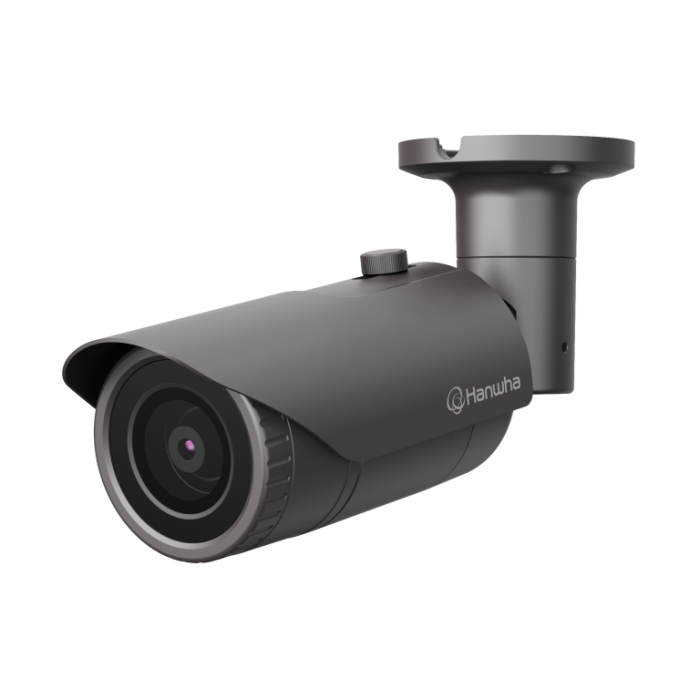

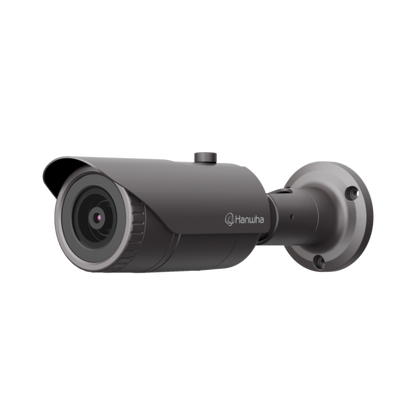

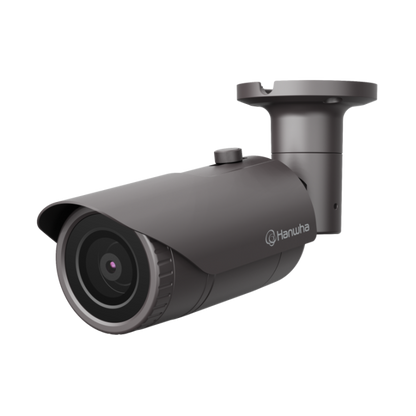

Hanwha Vision HV-QNO-7012R QNO-7012R 4MP Wisenet Q-Series IR Bullet Camera – 2.8mm Fixed Lens, H.265, WiseStream II, 120dB WDR, NDAA Compliant, IP66, IK10

The Hanwha Vision HV-QNO-7012R 4MP Wisenet Q-Series IR Bullet Camera is a reliable outdoor network surveillance camera designed for clear 4MP video, efficient H.265 streaming, night visibility and durable perimeter protection. Featuring a 2.8mm fixed lens, 120dB WDR, WiseStream II, 20m IR illumination, IP66 weather resistance, IK10 impact protection, PoE/12VDC power and edge storage support, the QNO-7012R is ideal for commercial, retail, warehouse, education and general security installations.

The HV-QNO-7012R supports a maximum resolution of 2560 x 1440, with H.265/H.264 video up to 30fps/25fps and MJPEG support for flexible integration into professional video management systems. It also includes intelligent event functions such as motion detection, tampering, defocus detection, virtual line and virtual area analytics.

This model is listed in Hanwha Vision’s NDAA compliant product list under 4MP network cameras as QNO-7012R – 4MP IR Bullet, supporting use in projects requiring NDAA-compliant camera selection.

What’s Included in the Box

• 1 x Hanwha Vision HV-QNO-7012R / QNO-7012R 4MP IR Bullet Camera

• Standard product documentation, depending on distributor package

• Mounting hardware may vary by supply channel

• Power supply, microSD card, network cable and additional accessories are not confirmed as included unless specified by the seller

Main Features

• Maximum 4MP resolution

• 2.8mm fixed focal lens

• H.265, H.264 and MJPEG codec support

• Multiple streaming, up to 3 profiles

• WiseStream II smart codec technology

• Day & Night with automatic ICR

• 120dB Wide Dynamic Range

• 20m IR viewable length

• Motion detection, tampering and defocus detection

• Virtual line crossing and direction detection

• Virtual area analytics including intrusion, enter and exit

• Hallway view support at 90°/270°

• Lens Distortion Correction support

• microSD/SDHC/SDXC slot up to 128GB

• PoE IEEE 802.3af Class 3 and 12VDC power options

• IP66 weather resistance and IK10 impact protection

• NDAA compliant product list reference

Detailed Specifications

Specifications are based on Hanwha Vision’s official QNO-7012R product information and may vary by region or firmware version.

Warranty Information

Warranty terms may vary depending on the authorised distributor, project agreement and region of supply. For Australian and New Zealand customers, warranty support should be handled through the authorised supplier or direct Hanwha Vision representative channel. Product availability may vary by region, so availability and support terms should be confirmed at the time of purchase.

Brand Description

Hanwha Vision, formerly known as Hanwha Techwin, is a global video surveillance and vision solutions provider offering professional security cameras, recording systems, analytics and network video technologies for commercial, government, industrial and public safety applications. Hanwha Vision’s official product page notes that the company was formerly known as Hanwha Techwin.

SKU

HV-QNO-7012R

Practical Use Scenarios

The HV-QNO-7012R is suitable for everyday commercial and outdoor surveillance where a compact fixed-lens bullet camera is required. Typical applications include:

• Retail shopfronts and rear entry points

• Warehouses and loading docks

• School and education facility perimeters

• Office building entrances

• Car parks and external walkways

• Small business CCTV upgrades

• Commercial sites requiring NDAA-compliant camera selection

• Installations requiring IP66 outdoor protection and IK10 vandal resistance

Datasheets & Downloadable Resources

Hanwha Vision lists downloadable resources for the QNO-7012R, including datasheets, manuals, CAD files, certification documents, A&E documents, quick guides, online help, open-source licence information and firmware. The official product page lists the datasheet file DataSheet_QNO-7012R_20260204_EN_152705.pdf.

Excellence for the Australian and New Zealand Market

The HV-QNO-7012R is well suited to Australian and New Zealand security projects requiring a reliable 4MP fixed bullet camera with efficient H.265 compression, durable outdoor protection and professional integration support. Official Hanwha Vision specifications list RCM AS/NZS CISPR 32 Class A, supporting alignment with Australian and New Zealand EMC requirements for professional electronic equipment.

For best results, the HV-QNO-7012R should be sourced through authorised Hanwha Vision representatives or approved distribution channels. Warranty handling should be managed through the supplying distributor or direct communication with the brand’s authorised support network. No NDSS approval is listed in the verified product information for this model, so it should not be advertised as NDSS-approved unless separate official documentation is provided.

FAQs

What is the HV-QNO-7012R used for?

The HV-QNO-7012R is used for professional outdoor IP surveillance where 4MP resolution, infrared night vision, fixed-lens coverage and durable bullet-camera protection are required.

Is the HV-QNO-7012R NDAA compliant?

Yes. The HV-QNO-7012R, manufacturer model QNO-7012R, is listed in Hanwha Vision’s NDAA compliant product list as a 4MP IR bullet camera.

What resolution does the HV-QNO-7012R support?

The HV-QNO-7012R supports up to 4MP resolution, with a maximum listed resolution of 2560 x 1440.

What lens does the HV-QNO-7012R have?

The HV-QNO-7012R has a 2.8mm fixed focal lens with a listed horizontal field of view of 108°.

Does the HV-QNO-7012R support night vision?

Yes. The HV-QNO-7012R includes built-in IR illumination with a listed IR viewable length of 20m / 65.62ft.

Does the HV-QNO-7012R support WiseStream II?

Yes. The HV-QNO-7012R supports WiseStream II, helping optimise bandwidth and storage use during video streaming.

Is the HV-QNO-7012R weather resistant?

Yes. The HV-QNO-7012R is rated IP66 for outdoor weather resistance and IK10 for impact protection.

What storage does the HV-QNO-7012R support?

The HV-QNO-7012R supports microSD/SDHC/SDXC edge storage with 1 slot up to 128GB.

What power options does the HV-QNO-7012R support?

The HV-QNO-7012R supports PoE IEEE 802.3af Class 3 and 12VDC power input.

Is the HV-QNO-7012R suitable for Australia and New Zealand?

Yes. The HV-QNO-7012R is suitable for professional Australian and New Zealand projects when sourced through authorised channels, and official specifications list RCM AS/NZS CISPR 32 Class A compliance.
