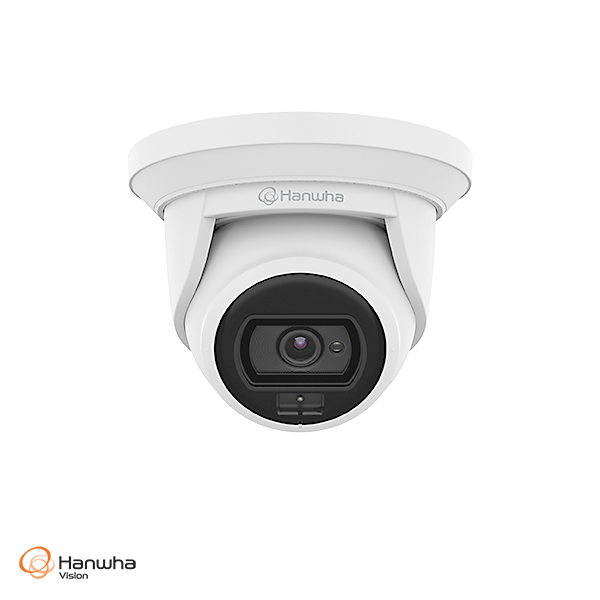

Hanwha Vision A-Series 4MP White Light Flateye Camera | HV-ANE-L7012L

The Hanwha Vision A-Series HV-ANE-L7012L delivers professional-grade video surveillance in a cost-effective package, tailored for small to medium-sized installations such as retail stores, banks, and commercial premises.

Equipped with a crisp 4MP CMOS sensor and a 3mm fixed lens, it captures detailed color images even in low light conditions, thanks to its impressive 0.05 Lux minimum illumination. A built-in white light illuminator extends visibility up to 20 meters, making it ideal for applications where color imaging is crucial in darkness.

Supporting modern video compression standards like H.265 and H.264, along with WiseStream II technology, the HV-ANE-L7012L reduces bandwidth and storage needs without sacrificing quality. The camera’s robust design includes IP67 and IK10 ratings, ensuring it withstands harsh environments and potential vandalism.

Enhanced with intelligent analytics, this camera features motion detection, tampering alerts, defocus detection, and sophisticated virtual line and area detection for proactive security monitoring. It’s NDAA-compliant, ensuring suitability for government and critical infrastructure installations.

For installations where high-quality color imaging is essential, day or night, the HV-ANE-L7012L stands as an excellent surveillance choice.

What's Included in the Box

• Hanwha Vision HV-ANE-L7012L 4MP White Light Flateye Camera

• Mounting hardware

• Quick installation guide

• Warranty documentation

Main Features

• 4MP (2560 x 1440) high-resolution video

• Built-in 3mm fixed lens for wide-area coverage

• Excellent low-light color performance: 0.05Lux (F1.2)

• White light illumination up to 20 meters (65.61 ft)

• WDR (120dB) for challenging lighting conditions

• Smart analytics: motion detection, tampering, directional and intrusion detection

• Hallway view and Lens Distortion Correction (LDC)

• Multi-codec support: H.265, H.264, MJPEG

• IP67 and IK10-rated for outdoor and high-risk environments

• PoE (IEEE802.3af Class 3) support

• NDAA compliant for sensitive installations

Detailed Specifications

Warranty Information

The Hanwha Vision HV-ANE-L7012L comes with a 3-year manufacturer’s warranty, providing reliable coverage and service support.

Brand Description

Hanwha Vision (formerly Hanwha Techwin) is a global leader in advanced surveillance solutions. Renowned for innovation, quality, and robust security features, Hanwha Vision products are trusted across critical sectors such as government, retail, infrastructure, and commercial applications. With a strong emphasis on cybersecurity and advanced analytics, Hanwha Vision remains at the forefront of professional video surveillance technology.

SKU

HV-ANE-L7012L

Practical Use Scenarios

• Retail Environments: Maintain color surveillance after dark to deter theft and improve store security.

• Banking & Financial Facilities: Monitor entrances, counters, and sensitive areas with true color detail.

• Commercial Buildings: Secure indoor corridors, entrances, and exterior perimeters with reliable white light coverage.

• Warehousing & Logistics: Keep watch over loading docks, inventory aisles, and storage facilities, day or night.

• Educational Institutions: Ensure safety in hallways, entrances, and outdoor premises.

• Car Parks: Illuminate and record events clearly in dark conditions, improving safety and security.

Datasheets / Downloadable Resources

Download the Official Datasheet

Excellence for the Australian and New Zealand Market

The Hanwha Vision HV-ANE-L7012L complies fully with RCM, AS/NZS standards, ensuring seamless integration into Australian and New Zealand installations. With robust IP67 and IK10 certifications, it withstands harsh weather and physical impact, making it a reliable solution for diverse ANZ environments.

Hanwha Vision products destined for the ANZ market are sourced through official and authorized distributors, ensuring genuine components and proper warranty coverage. All support and warranty claims are handled directly with Hanwha Vision’s authorized local channels, ensuring confidence and swift assistance for Australian and New Zealand customers.

The HV-ANE-L7012L’s white light illumination and advanced analytics make it particularly suitable for local installations where maintaining color surveillance at night is essential for both safety and compliance.

FAQs

Q1: How far does the white light on the Hanwha Vision HV-ANE-L7012L reach? (SKU: HV-ANE-L7012L)
The HV-ANE-L7012L provides white light illumination visible up to 20 meters (65.61 feet), delivering excellent color detail even at night.

Q2: Is the Hanwha Vision HV-ANE-L7012L NDAA compliant? (SKU: HV-ANE-L7012L)
Yes, the HV-ANE-L7012L is NDAA compliant, making it suitable for government and sensitive infrastructure deployments.

Q3: What type of lens does the Hanwha Vision HV-ANE-L7012L use? (SKU: HV-ANE-L7012L)
This camera is equipped with a built-in 3mm fixed lens offering a horizontal field of view of 97°.

Q4: Does the Hanwha Vision HV-ANE-L7012L support edge recording? (SKU: HV-ANE-L7012L)
Yes, it has a microSD/SDHC/SDXC slot supporting up to 128GB for local storage and event recording.

Q5: Can the Hanwha Vision HV-ANE-L7012L withstand outdoor conditions? (SKU: HV-ANE-L7012L)
Absolutely. The HV-ANE-L7012L is rated IP67 and IK10, ensuring resistance against harsh weather and vandalism.
