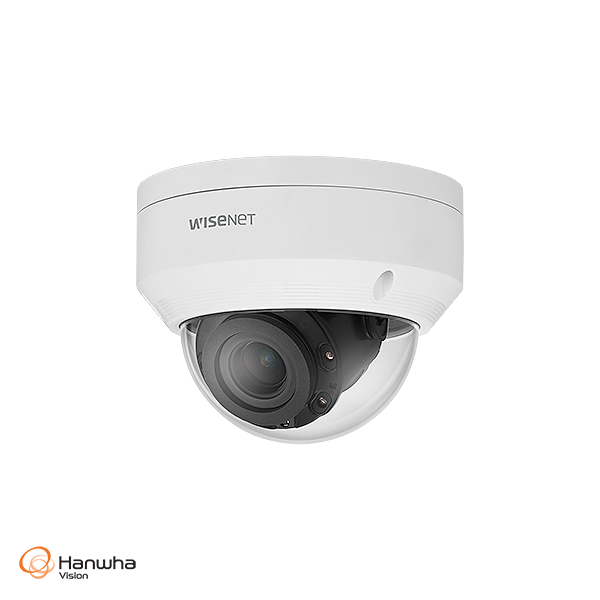

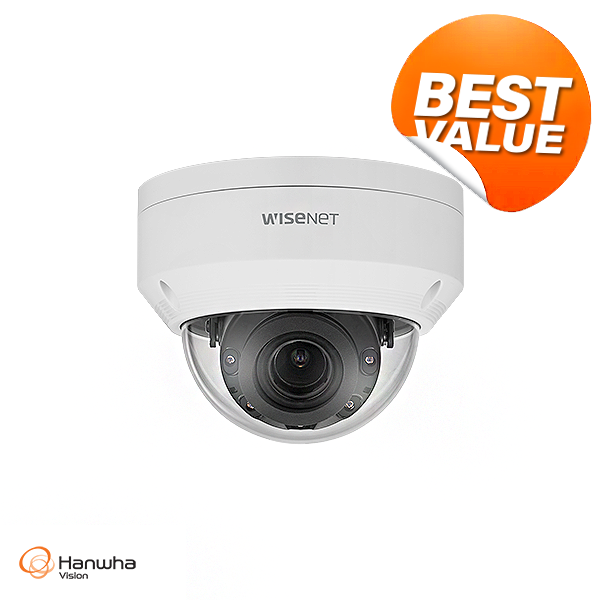

Hanwha Vision A-Series 4MP IR Vandal Dome Camera | HV-ANV-L7082R

The Hanwha Vision A-Series HV-ANV-L7082R is a robust vandal-resistant dome camera offering exceptional 4MP video quality for professional surveillance. Designed for small to medium-sized sites like retail, banking, and commercial facilities, it combines advanced imaging performance with rugged construction at an affordable price point.

Equipped with a high-performance 1/2.8" CMOS sensor, the HV-ANV-L7082R captures crisp and detailed video in resolutions up to 2560 x 1440. The motorized varifocal lens (3.3–10.3mm) with simple focus ensures flexible field-of-view adjustments, reducing installation time and allowing precise scene composition.

This camera delivers clear images in varying lighting conditions, featuring True WDR (120dB) for high-contrast scenes and low-light performance down to 0.1Lux in color and 0Lux with IR illumination. Integrated IR LEDs provide visibility up to 30 meters, ensuring reliable surveillance even in complete darkness.

Supporting H.265, H.264, and MJPEG codecs, combined with WiseStream II technology, the HV-ANV-L7082R minimizes bandwidth and storage demands without compromising video quality. Advanced analytics—including motion detection, tampering, defocus detection, and virtual line and area detection—enable proactive security monitoring.

With its vandal-resistant IK10-rated housing and IP66 weatherproof certification, this camera withstands both harsh environmental conditions and physical impacts. It’s the ideal solution for demanding security applications.

What's Included in the Box

• Hanwha Vision HV-ANV-L7082R 4MP IR Vandal Dome Camera

• Installation accessories

• Quick installation guide

• Warranty documentation

Main Features

• 4MP resolution (2560 x 1440) for sharp, detailed video

• 3.3~10.3mm motorized varifocal lens with Simple Focus technology

• Color imaging down to 0.1 Lux, 0 Lux in IR mode

• IR illumination up to 30 meters (98.43 ft)

• True Wide Dynamic Range (120dB) for high-contrast scenes

• Video analytics: motion detection, tampering, defocus, virtual lines, and intrusion detection

• Multi-codec support: H.265, H.264, MJPEG

• Hallway view (90°/270°), Lens Distortion Correction (LDC)

• Rugged vandal-resistant IK10 design and IP66 weatherproof protection

• NDAA compliant for secure installations

• PoE (IEEE802.3af, Class 3) simplifies cabling and installation

Detailed Specifications

Warranty Information

The Hanwha Vision HV-ANV-L7082R comes with a 3-year manufacturer’s warranty, ensuring product reliability and support for your investment.

Brand Description

Hanwha Vision, previously known as Hanwha Techwin, is a global leader in advanced surveillance solutions. Renowned for innovative imaging technologies, robust security features, and commitment to cybersecurity, Hanwha Vision’s products are trusted worldwide across government, commercial, and industrial sectors. Their solutions combine exceptional video quality with intelligent analytics to protect people, property, and assets effectively.

SKU

HV-ANV-L7082R

Practical Use Scenarios

• Retail Environments: Monitor storefronts, checkout areas, and storage rooms with sharp, high-resolution video.

• Banks & Financial Institutions: Protect sensitive zones like teller counters, vaults, and ATMs with tamper-resistant security.

• Commercial Facilities: Ensure comprehensive surveillance in lobbies, corridors, and building perimeters.

• Parking Lots & Garages: Achieve clear day/night coverage to improve safety and reduce liability.

• Warehouses & Distribution Centers: Oversee large areas and sensitive inventory zones with advanced analytics.

• Public Infrastructure: Install in transport hubs or government buildings where vandal resistance and reliability are crucial.

Datasheets / Downloadable Resources

Download the Official Datasheet

Excellence for the Australian and New Zealand Market

The Hanwha Vision HV-ANV-L7082R meets all required RCM and AS/NZS standards, ensuring suitability for professional installations in Australia and New Zealand. Its IP66 and IK10 ratings make it ideal for both indoor and outdoor use in diverse climates, from urban streetscapes to remote industrial sites.

All Hanwha Vision products supplied to the ANZ region come exclusively through authorized distributors, ensuring authenticity and warranty protection. Technical support and warranty services are managed locally through official channels, providing rapid assistance for Australian and New Zealand customers.

Engineered to handle demanding conditions and strict compliance requirements, the HV-ANV-L7082R is perfectly aligned with the security needs and regulatory landscape of the ANZ market.

FAQs

Q1: What is the IR range of the Hanwha Vision HV-ANV-L7082R? (SKU: HV-ANV-L7082R)
The HV-ANV-L7082R offers infrared illumination with a reach of up to 30 meters (98.43 feet) for clear surveillance in complete darkness.

Q2: Does the Hanwha Vision HV-ANV-L7082R support NDAA compliance? (SKU: HV-ANV-L7082R)
Yes, the HV-ANV-L7082R is NDAA compliant, making it suitable for government and critical infrastructure installations.

Q3: What type of lens is used in the Hanwha Vision HV-ANV-L7082R? (SKU: HV-ANV-L7082R)
It uses a 3.3~10.3mm motorized varifocal lens with simple focus for flexible field-of-view adjustments.

Q4: Can the Hanwha Vision HV-ANV-L7082R store video footage locally? (SKU: HV-ANV-L7082R)
Yes, it supports microSD/SDHC/SDXC cards up to 128GB for edge recording.

Q5: Is the Hanwha Vision HV-ANV-L7082R suitable for outdoor installations? (SKU: HV-ANV-L7082R)
Absolutely. With IP66 weatherproofing and IK10 vandal resistance, it’s perfect for outdoor and high-risk areas.
