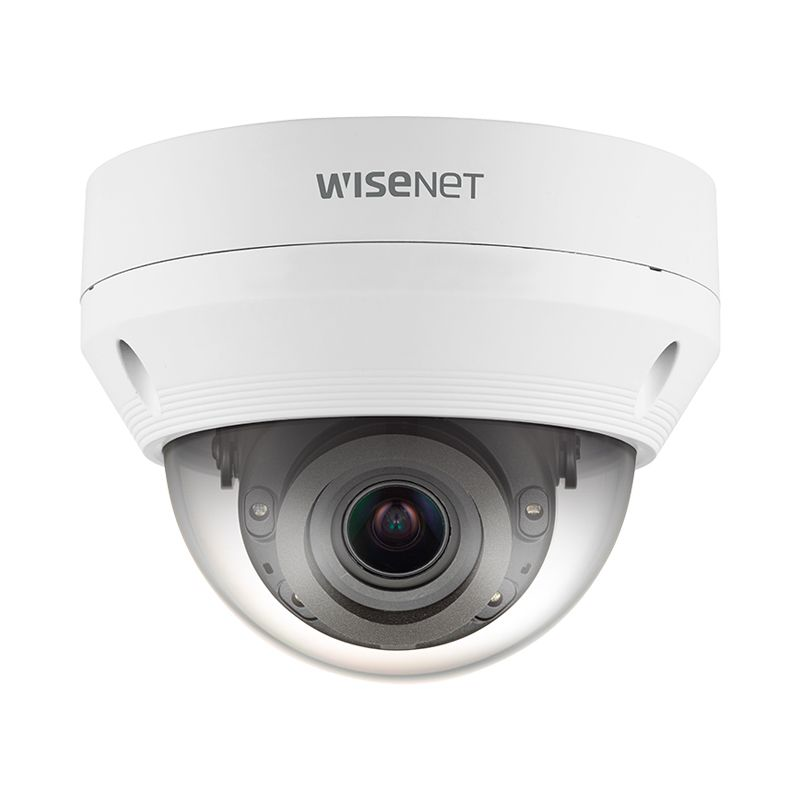

Hanwha Q 5MP Outdoor VF Dome Camera – H.265, 30m IR, IP66, IK10, 3.2–10mm Motorised Varifocal Lens (HAN-QNV-8080R)

Hanwha Q 5MP Outdoor VF Dome Camera – H.265, 30m IR, IP66, IK10, 3.2–10mm Motorised Varifocal Lens (HAN-QNV-8080R)

$746.64 AUD
$1,022.04 AUD $746.64 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Hanwha HAN-QNV-8080R is a 5MP outdoor VF dome camera from Hanwha’s Q series, designed to deliver high-resolution, clear images with all essential surveillance features. Ideal for small to medium-sized applications such as retail, banking, offices, and outdoor facilities, this camera provides reliable and efficient security at an affordable price.

Equipped with WiseStream II and H.265 compression technology, the HAN-QNV-8080R reduces bandwidth by up to 50–75% compared to traditional H.264 streams, ensuring efficient storage and network usage. The motorised 3.2–10mm varifocal lens allows for remote focus adjustment, significantly reducing installation time. Built to withstand harsh outdoor conditions, this camera features IP66 weatherproofing and IK10 vandal resistance, making it suitable for exposed environments.

What’s Included

  • Hanwha Q 5MP Outdoor VF Dome Camera (HAN-QNV-8080R)

  • Mounting Hardware

  • Quick Installation Guide

  • User Manual

Key Features

  • 5MP High-Resolution Imaging: Sharp and clear video at up to 30fps.

  • Motorised Varifocal Lens: 3.2–10mm, F1.6–F2.9, with remote focus adjustment.

  • Efficient Bandwidth Usage: WiseStream II + H.265 technology reduces bandwidth and storage needs.

  • Enhanced Night Vision: 30m IR range with color-to-B/W switching.

  • Advanced Analytics: Motion detection, tampering, defocus detection, and hallway view.

  • Durable Outdoor Design: IP66 weatherproof and IK10 vandal-resistant.

  • Wide Dynamic Range (WDR): 120dB for challenging lighting conditions.

  • Flexible Storage Options: Micro SD/SDHC/SDXC card support up to 128GB; PoE enabled.

  • Hallway View & Multi-Streaming: Optimized for corridor coverage and multiple streaming formats.

Technical Specifications

Specification HAN-QNV-8080R
Image Sensor 1/2.8" 5MP CMOS Progressive Scan
Lens 3.2–10mm Motorised Varifocal, F1.6–F2.9
Resolution Max. 5MP (2592 × 1944)
Frame Rate 30fps @ 5MP
Video Compression H.265, H.264, MJPEG
IR Night Vision Up to 30m
Day/Night IR-cut filter with auto-switching
Wide Dynamic Range (WDR) 120 dB
Network Interface RJ-45 10/100Base-T
Storage Micro SD/SDHC/SDXC (Max. 128GB), PoE
Power over Ethernet (PoE) IEEE802.3af, Class 3
Pan/Tilt/Rotate Range Pan: 0–350°, Tilt: 0–67°, Rotate: 0–355°
Ingress Protection IP66
Vandal Resistance IK10
Special Features Motion detection, tampering, defocus detection, hallway view, WiseStream II

Practical Applications

  • Retail Stores & Offices: Monitor entrances, cash registers, and stock areas.

  • Banks & Financial Institutions: High-resolution coverage for transaction zones.

  • Outdoor Facilities: Durable and weatherproof for parking lots, walkways, and courtyards.

  • Public Buildings: Vandal-resistant solution for educational, governmental, and commercial sites.

Warranty & Certification

  • Warranty: Manufacturer standard (typically 3 years)

  • Certifications: CE, RoHS

SKU / Product Info

  • Model: HAN-QNV-8080R

  • Brand: Hanwha Wisenet Q Series

  • Series: 5MP Outdoor Dome Cameras

Datasheet

For full technical specifications and installation guidelines, download the HAN-QNV-8080R Datasheet
