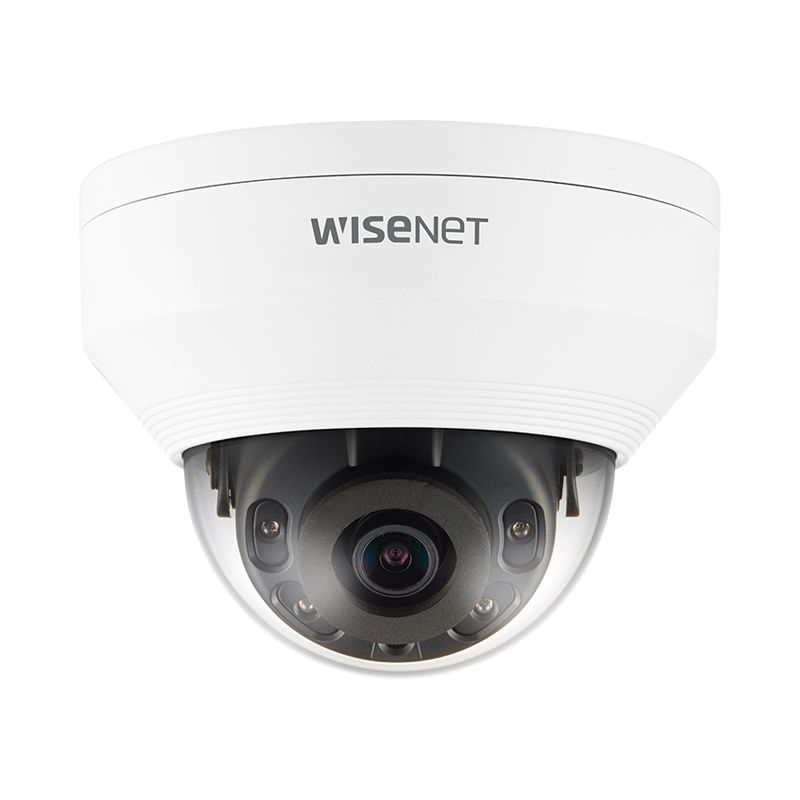

Hanwha Q 5MP Outdoor Dome Camera – H.265, WDR, 20m IR, IP66, IK10, 2.8mm Fixed Lens (HAN-QNV-8010R)

The Hanwha HAN-QNV-8010R is a high-performance 5MP outdoor dome camera from Hanwha’s Q series, designed for small to medium-sized applications including retail stores, offices, and banking environments. It combines advanced WiseStream II compression technology with H.265 encoding to reduce bandwidth usage by up to 75% compared to H.264, ensuring efficient storage and transmission without compromising image quality.

With a 2.8mm fixed lens and 120dB WDR, this camera delivers clear images even in challenging lighting conditions. Its IP66 weatherproof and IK10 vandal-resistant housing ensures reliable performance in outdoor environments. Features like defocus detection and remote focus adjustment simplify installation and maintenance, saving time and costs.

Key Features

• High-Resolution Imaging: 5MP CMOS progressive scan sensor with max. 30fps at 5MP.

• Lens: 2.8mm fixed lens, F2.0 for wide field of view.

• Advanced Compression: WiseStream II + H.265 for up to 75% bandwidth savings.

• Infrared Night Vision: Up to 20m IR distance for clear night-time monitoring.

• Day & Night / WDR: True WDR (120dB) for excellent performance under high contrast lighting.

• Durable & Secure: IP66-rated weatherproof and IK10-rated vandal-resistant housing.

• PoE & DC Power: Supports IEEE802.3af PoE or 12V DC.

• Smart Features: Motion detection, tampering detection, defocus detection, hallway view support.

• Storage Options: Micro SD / SDHC / SDXC up to 128GB.

• Network: RJ-45 10/100Base-T Ethernet.

Technical Specifications

Applications

• Outdoor surveillance for offices, retail, and banking.

• Small to medium-sized business security solutions.

• Areas requiring vandal-resistant and weatherproof cameras.

Datasheet

For full technical and installation details, refer to the HAN-QNV-8010R Datasheet
