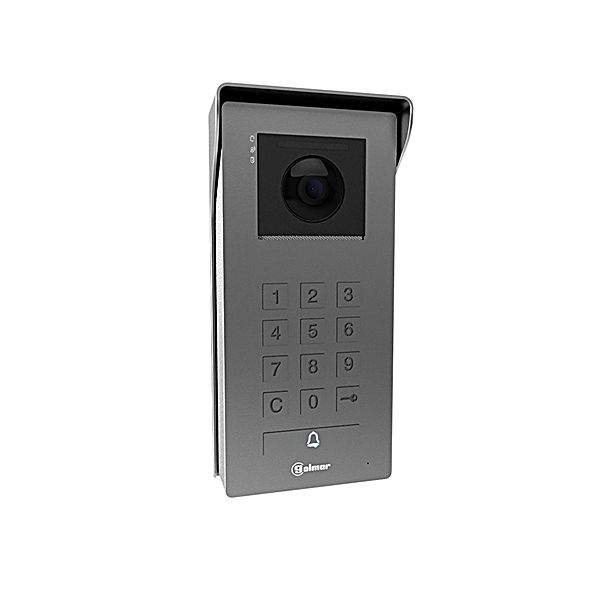

Golmar GL-SOUL/ACCESS Video Coded Panel

The Golmar GL-SOUL/ACCESS Video Coded Panel is an advanced and durable access control solution, perfect for enhancing security and convenience at your premises. Designed with a sleek, modern aesthetic, this panel combines robust construction with innovative technology to provide reliable performance in all weather conditions.

Key Features:

• Durable Construction: Made from high-quality cast Zamak alloy with a sleek graphite color finish, ensuring long-lasting durability and an elegant appearance.
• Vandal-Proof Design: Rated IK-07 for impact resistance, providing protection against tampering and vandalism.
• Weatherproof: IP-54 rated, making it suitable for outdoor installations and resistant to dust, rain, and other environmental factors.
• 150º Wide-Angle Camera: Offers a broad field of view to ensure clear video footage of visitors, improving the security of your premises.
• Night Vision with White Auto-On LEDs: The built-in LEDs automatically illuminate in low light conditions, ensuring excellent visibility even at night.
• Status LEDs: Includes LEDs that indicate the current status of the system—call in progress, in communication, and door opening—providing real-time feedback.
• Backlit Metal Pushbuttons: The high-quality metal pushbuttons are backlit for easy visibility and feature serigraphy of numbers and characters for user-friendly operation.
• Secret Communication: Allows secure and private communication for audio, video, and door opening functions.
• Acoustic Confirmation: Emits confirmation tones when buttons are pressed, providing audible feedback during operation.
• Relay Outputs for Door Activation: Includes relay outputs that support the activation of up to two doors for enhanced access control.
• CCTV Integration: Connects to external CCTV cameras, providing a comprehensive security solution.
• Multiple Address Management: Capable of managing up to 128 apartment addresses, making it ideal for multi-unit buildings.
• Access PIN Codes: Supports up to 40 standard access PIN codes and 8 temporary PIN codes for flexibility in granting access.
• Removable Connection Terminals Block: For easy and secure wiring during installation and maintenance.
• Surface Mount Installation: Simple surface mount installation with an included rain shield visor to protect the panel from the elements.

What's Included in the Box:

• Golmar GL-SOUL/ACCESS Video Coded Panel
• Rain Shield Visor
• Installation Guide

Specifications:

• Dimensions: 87 (W) x 188 (H) x 30 (D) mm
• Material: Cast Zamak alloy with a graphite finish
• Camera: 150º wide-angle with night vision LEDs
• Weatherproof Rating: IP-54
• Impact Resistance: IK-07
• PIN Codes: 40 standard + 8 temporary
• Relay Outputs: 2 for door activation
• CCTV Integration: External camera connection terminals

Warranty:

• 2-Year Warranty: The Golmar GL-SOUL/ACCESS Video Coded Panel comes with a 2-year warranty, providing reliable performance and peace of mind for your security system.

Perfect for residential and commercial properties, the Golmar GL-SOUL/ACCESS Video Coded Panel offers superior security features, durability, and flexibility. With its robust construction, advanced technology, and user-friendly design, it is an ideal solution for controlling access and monitoring visitors at any property.
