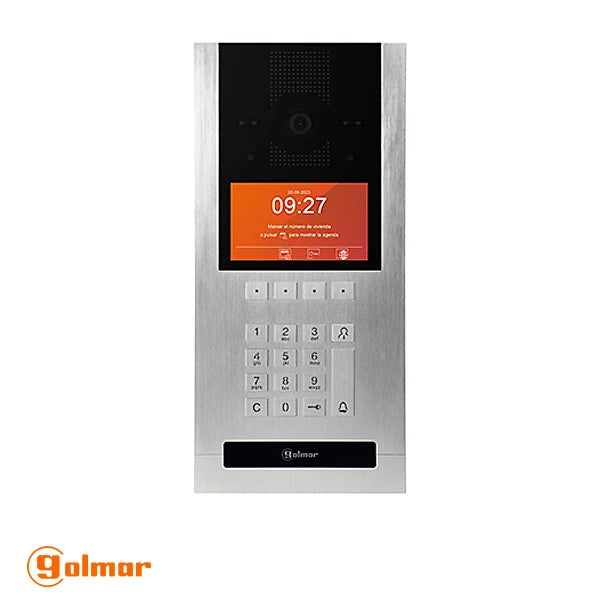

Golmar GL-6502/G2+/125KHZ 2-Wire Coded Video Panel with 125KHz RFID & G2+ Technology

The Golmar GL-6502/G2+/125KHZ is a premium outdoor coded video panel engineered for advanced video door entry systems. Built with G2+ two-wire non-polarized technology, it ensures seamless integration and reliable performance. Designed to resist vandalism (IK07) and harsh weather (IP65), this aluminum unit is equipped with a wide-angle 130º camera and white self-activating night LEDs for enhanced visibility. Its 4.3" TFT LCD color screen delivers clear visuals, while the built-in RFID reader supports up to 2000 125KHz proximity cards. Tailored for accessibility, it also features an inductive loop for hearing-impaired users and dual calling methods via a backlit keypad.

What's Included:

• GL-6502/G2+/125KHZ coded video panel

• Installation guide

• RJ-45 connector for programming

• Accessories compatible list (cards, tags, embedding box)

Main Features:

• G2+ 2-wire non-polarized technology

• 130º wide-angle camera with white IR LEDs

• 4.3" TFT LCD display (480x272 resolution)

• Backlit metal coded keypad with acoustic feedback

• Dual calling: by house code or phonebook search

• RFID 125KHz reader (supports up to 2000 cards)

• Inductive loop for hearing-impaired users

• Presence and ambient light sensors

• IP65 weatherproof and IK07 vandal resistant

• Acoustic confirmation for button inputs

Detailed Specifications:

• Camera Field of View: 130º

• Display: 4.3” TFT LCD, 480 x 272px

• Dimensions: 155(W) x 318(H) x 5(D) mm

• Tamper Alarm: Built-in anti-sabotage

• Inputs: 2 relay outputs, 2 exit button inputs

• Interface: RJ-45 for setup, Wiegand26 for access control

• Additional Features: On-screen programming, web client access, CCTV input

• Power: 12V DC local input

Warranty Information:
Golmar provides a standard warranty covering manufacturing defects and performance reliability. Contact your distributor for extended warranty details.

Brand Description:
Golmar Sistemas de Comunicación S.A. is a trusted Spanish manufacturer of high-performance video door entry and access control systems. With a legacy of innovation and quality, Golmar products are designed to offer robust security, seamless integration, and user accessibility across residential, commercial, and institutional installations.

SKU: GL-6502/G2+/125KHZ

Practical Use Scenarios:

• Residential and multi-tenant apartment complexes

• Secure entrances for schools and institutional buildings

• Commercial offices requiring keypad and RFID access

• Facilities with hearing-impaired visitors

• Weather-exposed or high-risk entry points

Datasheets & Resources:

• Product Page – Golmar

• Promotional Video

Excellence for the Australian and New Zealand Market:
The GL-6502/G2+/125KHZ meets high performance and durability standards ideal for ANZ environments. Certified with IP65 and IK07 ratings, it ensures reliable operation in coastal, urban, and rural conditions. Distributed through authorized regional partners, Golmar provides dedicated support, compliance with local electrical and accessibility regulations, and streamlined warranty servicing directly via the manufacturer.

FAQs (SKU: GL-6502/G2+/125KHZ):

Q1: How many RFID cards can the GL-6502/G2+/125KHZ panel store?
A1: The panel supports up to 2000 125KHz RFID proximity cards for secure access control.

Q2: Is the GL-6502/G2+/125KHZ suitable for outdoor use?
A2: Yes, with IP65 weather resistance and IK07 vandal protection, it's ideal for outdoor environments.

Q3: Can users call via both code and name search?
A3: Absolutely. The keypad allows calling by entering a unit code or selecting from the integrated phonebook.

Q4: What is the screen resolution of the built-in display?
A4: The 4.3” TFT LCD screen provides a resolution of 480 x 272 pixels.

Q5: Does this panel integrate with access control systems?
A5: Yes, it includes a Wiegand26 interface and is compatible with iP-Opener and other Golmar systems.
