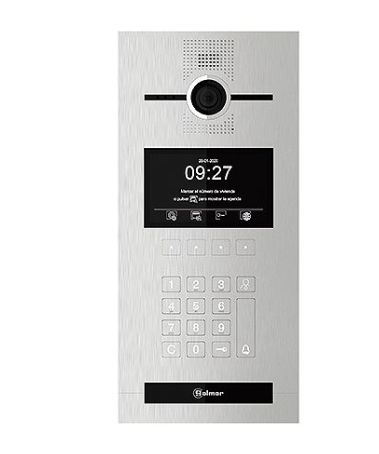

GL-6502/G+ IP Video Coded Entry Panel – G+ System with TFT Display, Camera, and RFID Access Product Description

The GL-6502/G+ is a feature-rich IP coded video entry panel from Golmar’s G+ series, combining advanced access control, wide-angle video surveillance, and secure digital communication in one robust unit. Engineered with a 130º camera, 4.3" TFT screen, and RFID reader for up to 2000 users, this vandal-resistant panel provides a high-tech, user-friendly solution for residential buildings, office complexes, and gated communities. Designed for integration into Golmar’s G+ system, it supports SIP 2.0, web client programming, and automatic IP assignment, removing the need for external servers.

What’s Included in the Box

• 1 x GL-6502/G+ Coded Video Entry Panel

• Installation guide

Main Features

• Vandal-resistant (IK07) and weatherproof (IP65) anodised aluminium panel

• 130º wide-angle camera with infrared and white LEDs for day/night visibility

• 4.3" TFT LCD screen with 480x272 resolution

• Backlit metal keypad with tactile feedback and acoustic tones

• Dual calling method: numeric code or name search from phonebook

• Resident PIN management for flexible access control

• RFID proximity reader for up to 2000 fobs/cards

• Integrated voicemail function for unattended call handling

• SIP 2.0 support for VoIP integration

• Linux-based platform for flexible updates and third-party integration

• Web-based setup, no server required—automatic IP management on first boot

• Built-in anti-sabotage tamper alarm

• 2 relay outputs for dual-door release control

• Requires embedding box CE-6502/G+

• Power via 18VDC PoE using D4L-G+/PoE switch

Technical Specifications

• Model: GL-6502/G+

• Camera: 130º horizontal, 70º vertical field of view, minimum 0.1 lux

• Display: 4.3” TFT, 480x272px, 16.7M colours

• Audio: Hands-free, 1W speaker, 105dB microphone

• Compatibility: Golmar G+, SIP 2.0, VoIP, ONVIF, RTSP

• Storage & Logging: Call log, voicemail

• Card Reader: RFID, 2000-user capacity

• Alarm I/O: 1 tamper input, 2 relay outputs

• Construction: Anodised aluminium, IP65, IK07

• Dimensions: 146(W) x 317(H) x 50(D) mm

• Operating Temp: -20°C to +60°C

• Power Input: 18VDC PoE

• Product Code: 12327402

• EAN: 8429898020365

Warranty Information

Protected under Golmar’s standard manufacturer warranty, this unit offers full technical and service support when purchased through authorized distributors.

Brand Information

Golmar Sistemas de Comunicación S.A. is a European technology leader in video intercom systems and access control solutions. Their G+ IP range represents the pinnacle of secure, scalable, and integrable building communication technology.

SKU

GL-6502/G+

Practical Use Scenarios

• Multi-unit residential complexes needing secure, flexible entry management

• Office buildings requiring integrated video/audio and RFID access

• Properties with two-door entry control and centralized digital management

• Installations demanding hands-free calling, PIN control, and CCTV integration

Datasheets / Resources

Download the GL-6502/G+ Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Complies with local IP, safety, and integration standards

• Weatherproof and vandal-proof construction ideal for ANZ climates

• Distributed via authorized ANZ partners for local support and warranty

• Integrated features (SIP, RTSP, RFID, PIN, VoIP) align with modern ANZ security requirements

• Seamless compatibility with ONVIF cameras and D4L-G+/PoE infrastructure

FAQs (GL-6502/G+)

Q1: What systems is the GL-6502/G+ compatible with?
A1: It integrates with Golmar’s G+ IP system, as well as SIP 2.0 VoIP setups and ONVIF CCTV systems.

Q2: Can the panel operate without a central server?
A2: Yes, it features automatic IP assignment and requires no external server.

Q3: How many RFID cards does it support?
A3: Up to 2000 proximity cards or tags can be stored.

Q4: What is required for power?
A4: It requires an 18VDC PoE supply, typically provided through D4L-G+/PoE switches.

Q5: Is it suitable for Australian and New Zealand conditions?
A5: Yes, with IP65 and IK07 ratings, it is fully weatherproof and vandal-resistant—ideal for ANZ environments.
