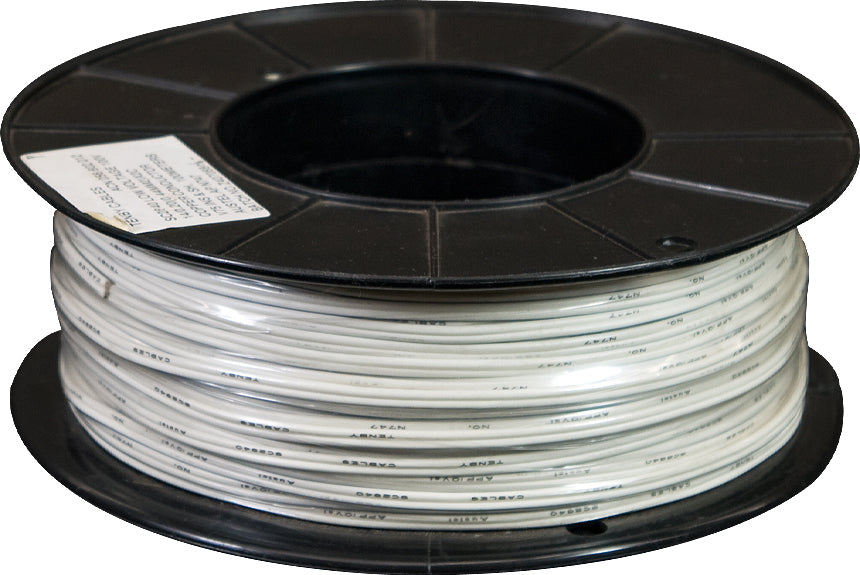

Garland TC100100.Figure 8 Cable – 100m Roll, 2 x 14/0.20mm Stranded PACW, PVC Insulated, AS/CA S-008 Compliant

The Garland TC100100.Figure 8 Cable is a high-quality, low-voltage cable designed for electronic and allied equipment wiring. Featuring a figure-8 construction with two 14/0.20mm stranded Plain Annealed Copper Wires (PACW), this cable ensures reliable conductivity and durability. The PVC insulation, colored white with a black stripe, provides excellent protection and easy identification. Compliant with AS/CA S-008 standards, this cable is suitable for various applications, including extension speakers and security systems.

What's Included in the Box

• 1 x 100m Roll of Garland TC100100.Figure 8 Cable

Main Features

• Conductor: 14/0.20mm stranded PACW

• Insulation: PVC (Traffic White RAL 9016)

• Configuration: Figure-8 with 2 cores

• Voltage Rating: Extra Low Voltage (ELV)

• Compliance: AS/CA S-008 standard

• Sheath Printing: GARLAND FIGURE 8 TCW14 - 2 X 14/0.2

Detailed Specifications

• Conductor Size: 24 AWG (14/0.20mm)

• Conductor Area: 0.215 mm²

• Conductor Diameter: 0.6 mm

• Insulation Thickness: 0.6 mm

• Nominal Outer Diameter: 2.2 x 4.4 mm

• Max. Conductor DC Resistance @ 20°C: 45.2 Ω/km

• Min. Insulation Resistance @ 20°C: 50 MΩ·km

• Voltage Test: 1.5 kV AC for 1 minute

• Operating Temperature Range: -15°C to 70°C

• Max. Recommended Pulling Tension: 61 N

• Min. Bend Radius (Install): 22 mm

• Approximate Mass: 1.75 kg per 100m

Warranty Information

Garland offers a manufacturer's warranty for the TC100100.Figure 8 Cable, covering defects in materials and workmanship under normal use. For warranty claims, please contact Garland directly with proof of purchase.

Brand Description

Garland is a reputable manufacturer known for producing high-quality cables and wiring solutions. With a commitment to excellence and compliance with industry standards, Garland products are trusted by professionals for their reliability and performance.

SKU

TC100100.Figure 8

Practical Use Scenarios

• Electronic Equipment Wiring: Ideal for connecting various electronic devices requiring low-voltage power.

• Extension Speakers: Suitable for audio applications, providing clear signal transmission.

• Security Systems: Reliable choice for wiring security cameras and alarm systems.

• Intercom Systems: Efficient for connecting intercom units within residential or commercial buildings.

Datasheets or Downloadable Resources

Datasheet

Excellence for the Australian and New Zealand Market

• Compliance: Meets AS/CA S-008 standards, ensuring safety and reliability.

• NDSS Approval: Certified for use in Australian and New Zealand markets.

• Authorized Sourcing: Exclusively sourced from authorized Garland representatives.

• Warranty Handling: Direct communication with Garland for warranty claims ensures prompt service.

FAQs

Q1: What is the conductor configuration of the Garland TC100100.Figure 8 Cable?
A1: The Garland TC100100.Figure 8 Cable features a 14/0.20mm stranded Plain Annealed Copper Wire (PACW) conductor configuration, providing reliable conductivity for various applications.

Q2: Is the Garland TC100100.Figure 8 Cable compliant with Australian standards?
A2: Yes, the Garland TC100100.Figure 8 Cable complies with AS/CA S-008 standards, making it suitable for use in Australia and New Zealand.

Q3: What is the voltage rating for the Garland TC100100.Figure 8 Cable?
A3: The Garland TC100100.Figure 8 Cable is rated for Extra Low Voltage (ELV) applications, ensuring safety in low-voltage wiring scenarios.

Q4: Can the Garland TC100100.Figure 8 Cable be used for security systems?
A4: Absolutely, the Garland TC100100.Figure 8 Cable is ideal for wiring security systems, including cameras and alarm systems, due to its reliable performance and compliance with safety standards.

Q5: What is the operating temperature range of the Garland TC100100.Figure 8 Cable?
A5: The Garland TC100100.Figure 8 Cable operates within a temperature range of -15°C to 70°C, ensuring durability in various environmental conditions.
