Garland Cat6A UTP Cable – 4 Pair Solid 23AWG, LSZH, Yellow – 305m Box

The Garland Cat6A UTP Cable (Part Number: TC500201) is a high-performance networking solution designed for modern data transmission needs. Featuring solid 23AWG plain annealed copper wire (PACW) conductors and a low smoke zero halogen (LSZH) sheath, this cable ensures optimal signal integrity and safety. Its unshielded twisted pair (UTP) design, combined with a cross-web separator and rip cord, provides enhanced crosstalk performance, making it suitable for high-speed Ethernet applications up to 10 Gbps over distances up to 100 meters.

What's Included in the Box

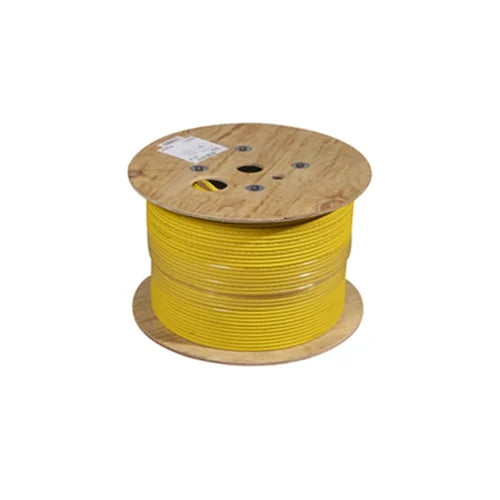

• 1 x 305-meter reel of Garland Cat6A UTP Cable (Yellow)

Main Features

• High-Speed Performance: Supports 10BaseT, 100BaseT, and 1000BaseT Ethernet applications.

• Enhanced Crosstalk Performance: Cross-web separator minimizes internal interference.

• Safety Compliance: LSZH sheath reduces toxic smoke emissions in case of fire.

• Durable Construction: Solid 23AWG PACW conductors ensure long-term reliability.

• Ease of Installation: Includes rip cord for quick and easy sheath removal.

Detailed Specifications

• Conductor:

  • Size: 23 AWG (1/0.56 mm)

  • Material: Plain Annealed Copper Wire (PACW)

• Insulation:

  • Material: High-Density Polyethylene (HDPE)

  • Colour Coding:

    • Blue/White-Blue Stripe

    • Green/White-Green Stripe

    • Orange/White-Orange

    • Brown/White-Brown Stripe

  • Nominal Thickness: 0.2 mm

  • Nominal Outer Diameter: 1.0 mm

• Filler:

  • Cross-web separator

  • Rip cord

• Sheath:

  • Material: Low Smoke Zero Halogen (LSZH)

  • Colour: Yellow

  • Nominal Thickness: 0.5 mm

  • Nominal Outer Diameter: 6.2 mm

• Electrical Properties:

  • Max. Conductor DC Resistance @ 20°C: 7.3 Ω/km

  • Max. DC Resistance Unbalance: 5%

  • Nominal Velocity of Propagation: 64%

  • Characteristic Impedance (1-250 MHz): 100 ±15 Ω

  • Nominal Mutual Capacitance @ 1 kHz: 56 pF/m

  • Max. Capacitance Unbalance @ 20°C: 330 pF/100m

• Transmission Properties:

  Frequency (MHz)	Max. Insertion Loss (dB/100m)	Min. NEXT (dB/100m)	Min. PSNEXT (dB/100m)	Min. ELFEXT (dB/100m)	Min. PSELFEXT (dB/100m)
  1.0	2.0	74.3	72.3	67.8	64.8
  4.0	3.8	65.3	63.3	55.8	52.8
  8.0	5.3	60.8	58.8	49.7	46.7
  10.0	6.0	59.3	57.3	47.8	44.8
  16.0	7.6	56.2	54.2	43.7	40.7
  20.0	8.5	54.8	52.8	41.8	38.8
  31.25	10.7	51.9	49.9	37.9	34.9
  62.5	15.4	47.4	45.4	31.9	28.9
  100	19.8	44.3	42.3	27.8	24.8
  200	29.0	39.8	37.8	21.8	18.8
  250	32.8	38.3	36.3	19.8	16.8

• Mechanical Properties:

  • Operating Temperature Range: -15°C to 70°C

  • Max. Recommended Pulling Tension: 142 N

  • Min. Bend Radius (Installation): 62 mm

  • Approximate Mass: 4.64 kg/100m

• Applicable Standards:

  • ANSI/TIA 568-C.2

  • ISO/IEC 11801-2

  • AS/NZS 3080

  • AS/CA S-008

  • AS 1049

Warranty Information

Garland offers a standard 1-year warranty for both commercial and domestic use. Warranty claims are handled directly through the brand, ensuring efficient service and support.

Brand Description

Garland is a reputable manufacturer known for producing high-quality cables that meet stringent industry standards. Their commitment to excellence ensures reliable performance across various applications, making them a trusted choice for professionals.

SKU Field

• SKU: UTPL6HFYE305BW

Practical Use Scenarios

• Enterprise Networking: Ideal for setting up robust and high-speed local area networks (LANs) in office environments.

• Data Centers: Suitable for backbone cabling where high data throughput is essential.

• Educational Institutions: Perfect for schools and universities requiring reliable network infrastructure.

• Healthcare Facilities: Ensures secure and fast data transmission for medical records and imaging.

• Residential Installations: Provides homeowners with future-proof networking capabilities.

Datasheets or Downloadable Resources

• Garland Cat6A UTP Cable Datasheet (UTPL6HF-150611)

Excellence for the Australian and New Zealand Market

• Compliance with Regional Standards: Meets AS/NZS 3080, AS/CA S-008, and AS 1049 standards, ensuring suitability for the Australian and New Zealand markets.

• Quality Assurance: Manufactured to high-quality standards, providing reliability and performance.

• Authorized Distribution: Sourced exclusively from authorized Garland representatives, guaranteeing authenticity.

• Direct Warranty Handling: Warranty claims are managed directly through Garland, ensuring prompt and efficient service.

 FAQs

Q1: What is the maximum data transmission speed supported by the Garland Cat6A UTP Cable (TC500201)?

A1: The Garland Cat6A UTP Cable (TC500201) supports data transmission speeds up to 10 Gbps, making it suitable for high-speed Ethernet applications.

Q2: Is the Garland Cat6A UTP Cable (TC500201) compliant with Australian and New Zealand standards?

A2: Yes, the Garland Cat6A UTP Cable (TC500201) complies with AS/NZS 3080, AS/CA S-008, and AS 1049 standards, ensuring its suitability for use in Australia and New Zealand.

Q3: What type of sheath does the Garland Cat6A UTP Cable (TC500201) have?

A3: The Garland Cat6A UTP Cable (TC500201) features a Low Smoke Zero Halogen (LSZH) sheath, which reduces toxic smoke emissions in case of fire, enhancing safety.

Q4: Can the Garland Cat6A UTP Cable (TC500201) be used for residential installations?

A4: Absolutely, the Garland Cat6A UTP Cable (TC500201) is suitable for residential installations, providing homeowners with a future-proof networking solution.
