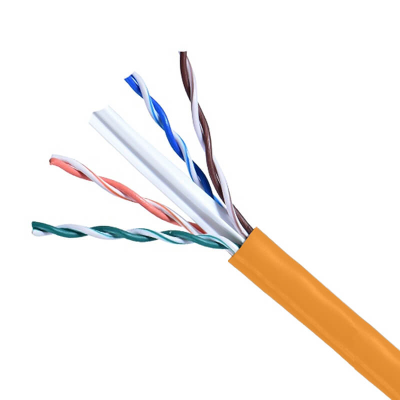

Garland Cat6 UTP Solid Cable – 305 m Orange Reel, 23AWG, PE LSZH Sheath, 4-Pair, Unscreened – SKU MADUTPL6HFOE305RBA

Garland Cat6 UTP Solid Cable – 305 m Orange Reel, 23AWG, PE LSZH Sheath, 4-Pair, Unscreened – SKU MADUTPL6HFOE305RBA

$469.10 AUD
$571.20 AUD $469.10 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Garland Cat6 UTP 305 m Orange Reel (SKU: MADUTPL6HFOE305RBA) is engineered for robust, high-speed structured cabling. Designed for fixed installations, this solid 23AWG cable features four twisted pairs, a cross-web separator, and a low-smoke zero-halogen (LSZH) PE sheath for enhanced safety and reliability. Compliant with ANSI/TIA 568-C.2 and AS/NZS 3080 standards, it’s perfect for Gigabit Ethernet applications across commercial, education, and data centre environments.

📦 What’s in the Box

  • 1 × 305 m reel of Garland Cat6 UTP Orange Cable

  • Packed in a convenient pull box

⚙️ Main Features

  • Solid 23AWG PACW conductors for optimal data integrity

  • 4 twisted pairs with HDPE insulation and color-coded for easy termination

  • Cross-web separator enhances pair isolation and crosstalk performance

  • LSZH (Low Smoke Zero Halogen) outer sheath for fire-safe installation

  • Unscreened UTP design for reduced weight and flexibility

  • Supports up to 1 Gbps on Class E Ethernet links (10BaseT, 100BaseT, 1000BaseT)

🔍 Detailed Specifications

Specification Details
SKU / Supplier SKU MADUTPL6HFOE305RBA / UTPL6HFOE305RBA
Cable Type Cat6 UTP Solid Cable
Length 305 m
Conductor 23AWG PACW, 1/0.56 mm (0.25 mm²)
Pairs 4 twisted pairs
Insulation Material HDPE (Ø 1.0 mm)
Separator Cross-web plus Rip Cord
Sheath Material LSZH (PE), 0.5 mm thick, Ø 6.2 mm
Colour Code Blue/White, Green/White, Orange/White, Brown/White
Screening Unscreened (UTP)
Impedance 100 ± 15 Ω (1–250 MHz)
Capacitance 56 pF/m (Nom.), Max unbalance: 330 pF/100 m
Max Conductor Resistance 73 Ω/km
Operating Temp Range –15 °C to +70 °C
Min. Bend Radius 62 mm (installation)
Max Pulling Tension 142 N
Approx. Weight 4.64 kg per 100 m
Compliance Standards ANSI/TIA 568-C.2, ISO/IEC 11801-2, AS/NZS 3080

🛠 Warranty Information

This cable is covered by a 12-month warranty. For warranty or technical assistance, contact Garland on 1800 66 99 99.

🏢 Brand Overview – Garland

Garland is a trusted Australian brand with decades of expertise in delivering quality data, fibre, and coaxial cable solutions. Known for stringent compliance and durable construction, Garland is a preferred choice for Australian installers.

✅ Practical Use Scenarios

  • Backbone and horizontal wiring in structured cabling systems

  • Commercial or government building LAN infrastructure

  • Fire-sensitive installations requiring LSZH sheathing

  • Permanent installations in ceiling voids or floor ducts

  • Compatible with punch-down blocks and patch panels

📁 Datasheets & Resources

🇦🇺 Excellence for the Australian and New Zealand Market

  • Conforms to AS/NZS 3080, AS/CA S-008, AS 1049 standards

  • LSZH PE sheath suitable for Australian fire safety requirements

  • Sold through authorized local distributors only

  • Warranty managed directly by Garland for local service efficiency

  • Designed with local conditions, standards, and installation practices in mind

❓ FAQs

Q: What applications is SKU MADUTPL6HFOE305RBA suitable for?
A: It's ideal for horizontal cabling and permanent installations in structured cabling for 10/100/1000Base-T Ethernet.

Q: Does SKU MADUTPL6HFOE305RBA support LSZH fire safety compliance?
A: Yes, the outer sheath is made from LSZH material, meeting fire safety codes.

Q: What type of conductor is used in SKU MADUTPL6HFOE305RBA?
A: Solid 23AWG plain annealed copper wire (PACW) is used for reliable data performance.

Q: How do I claim the warranty for SKU MADUTPL6HFOE305RBA?
A: Simply contact Garland on 1800 66 99 99 within the 12-month warranty period.
